InstallationIndications, functions and optionsMessages Commissioning Operation and function

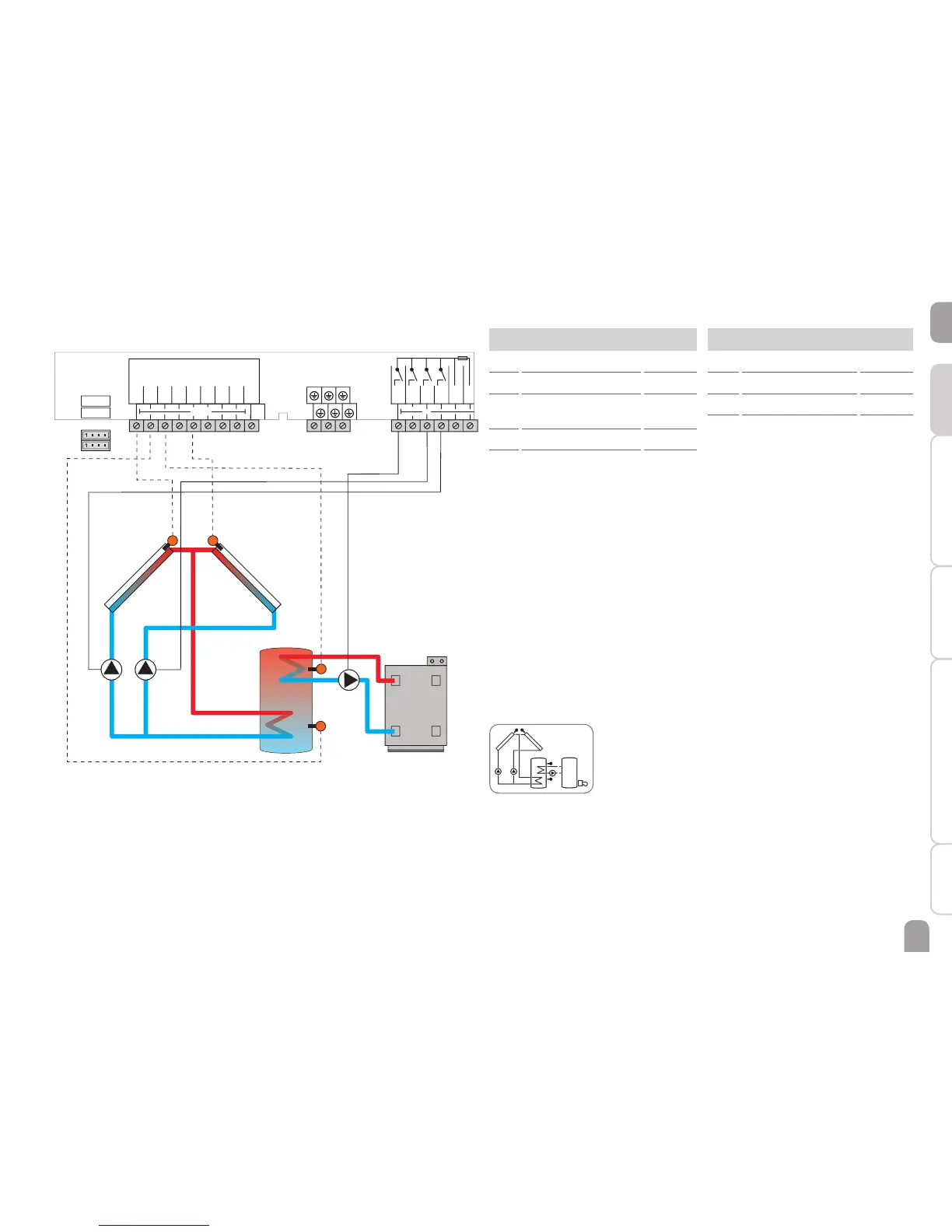

System 19: Solar system with east-/west collectors and thermostatic backup heating
The controller compares the temperatures at the collector sensors S1 and S5 to
the store temperature at sensor S2. If one of the measured temperature difference
is higher than the adusted switch-on temperature difference, the corresponding
pump (R1 and/or R2) will be switched on, thus loading the store until either the
switch-off temperature difference or the store maximum temperature is reached.
Backup heating (R4) can be carried out with a thermostat function (S3). If the
value at S3 reaches the switch-on temperature for the backup heating, the relay
is switched on. If the value exceeds the switch-off temperature for the backup
heating, the relay is switched off again.
Sensors
S1 Temperature collector 1 1 / GND
S2 Temperature store base 2 / GND
S3 Temperature backup
heating
3 / GND
S4 Free 4 / GND
S5 Temperature collector 2 5 / GND
Relay
R1 Solar pump collector 1 R1 / N / PE
R2 Solar pump collector 2 R2 / N / PE
R3 Free R3 / N / PE
R4 Backup heating / Store
loading pump
R4 / N / PE
R4
R2R1
S5
S2
S1
S3
Te mp. Sensor
Pt1000
L
R3
R2
R1
GND
S1
S2
S3
S4
S5
VBus
PWM 1
PWM 2
N
R4
V40
VBus
GND
L'
VFS
RPS
