Installation Indications, functions and options MessagesCommissioningOperation and function

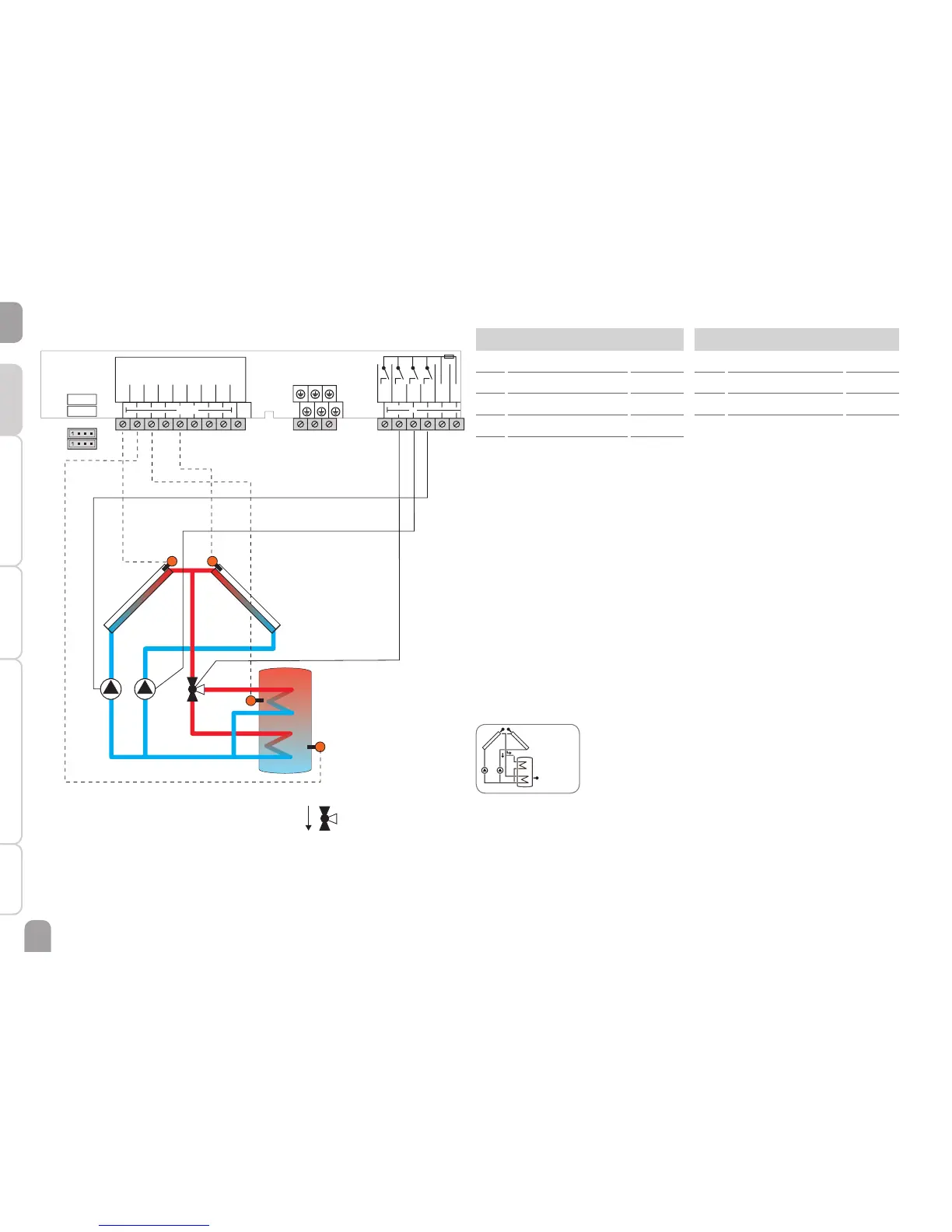

System 22: Solar system with store loading in layers and east-/west collectors
The controller compares the temperatures at the collector sensors S1 and S5
to the store temperature at sensors S2 and S3. If one of the measured temper-
ature differences is higher than the adjusted switch-on temperature difference,
the corresponding pump (R1 and/or R2) will be activated and the corresponding
store zone will be loaded up to the adjusted store maximum or set temperature
respectively via the valve (R3). The priority logic effects prior loading of the upper
zone of the store.
Sensors
S1
Temperature collector 1
1 / GND
S2 Temperature store base 2 / GND
S3 Temperature store top 3 / GND
S4 Free 4 / GND
S5 Temperature collector 2 5 / GND
Relay
R1 Solar pump collector 1 R1 / N / PE
R2 Solar pump collector 2 R2 / N / PE
R3 Solar valve R3 / N / PE
R4 Free R4 / N / PE
R3
R2R1
S5
S2
S1
S3
