Resol DeltaSol E Manual

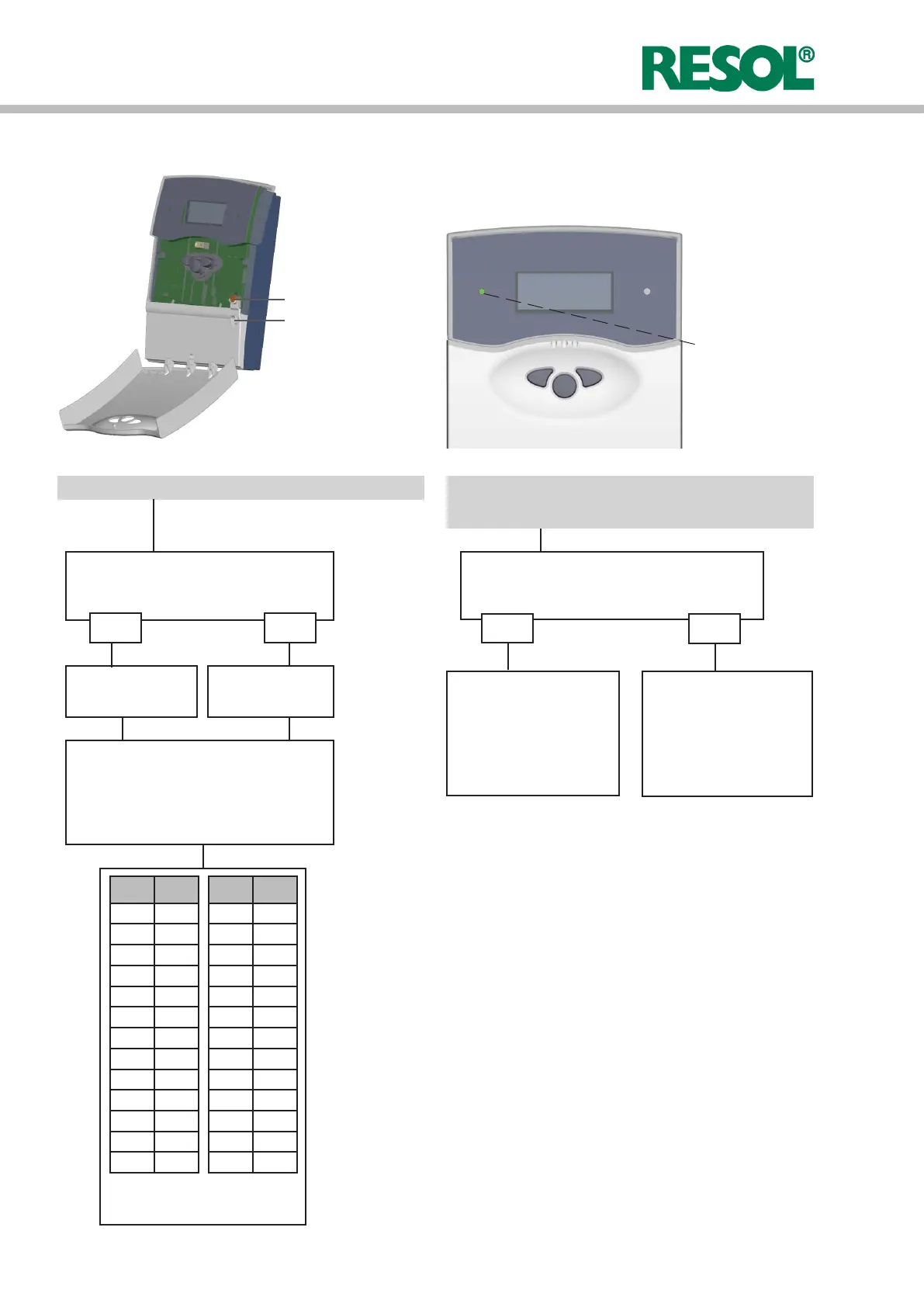

5. Troubleshooting
fuse T4A
Control lamp offControl lamp flashes red
Sensor defect. An error code instead of
a temperature is displayed in the sensor
display channel.
- 888.8888.8
Cable broken.
Check cable.
Short circuit.
Check cable.
Disconnected Pt1000 temperature sen-
sors can be checked with an ohmeter. In
the following table, the resistance values
with the corresponding temperatures are
shown.
spare fuse T4A
In the case of an error, a message is shown on the display
of the controller:
operating control
lamp
°F Ω °F Ω
14 961 131 1213
23 980 140 1232
32 1000 149 1252
41 1019 158 1271
50 1039 167 1290
59 1058 176 1309
68 1078 185 1328
77 1097 194 1347
86 1117 203 1366
95 1136 212 1385
104 1155 221 1404
113 1175 230 1423
122 1194 239 1442
resistance of the
Pt1000 sensors
D e lt a S o l
®
E
© RESOL 10306_DeltaSol_E.monus.indd
| 40
Check the power supply. Is it disconnected?
no
The fuse of the controller
could be blown. It can be
replaced after the front
cover has been removed
(spare fuse is enclosed in
the fuse holder).
yes
Check the supply line and
reconnect it.
