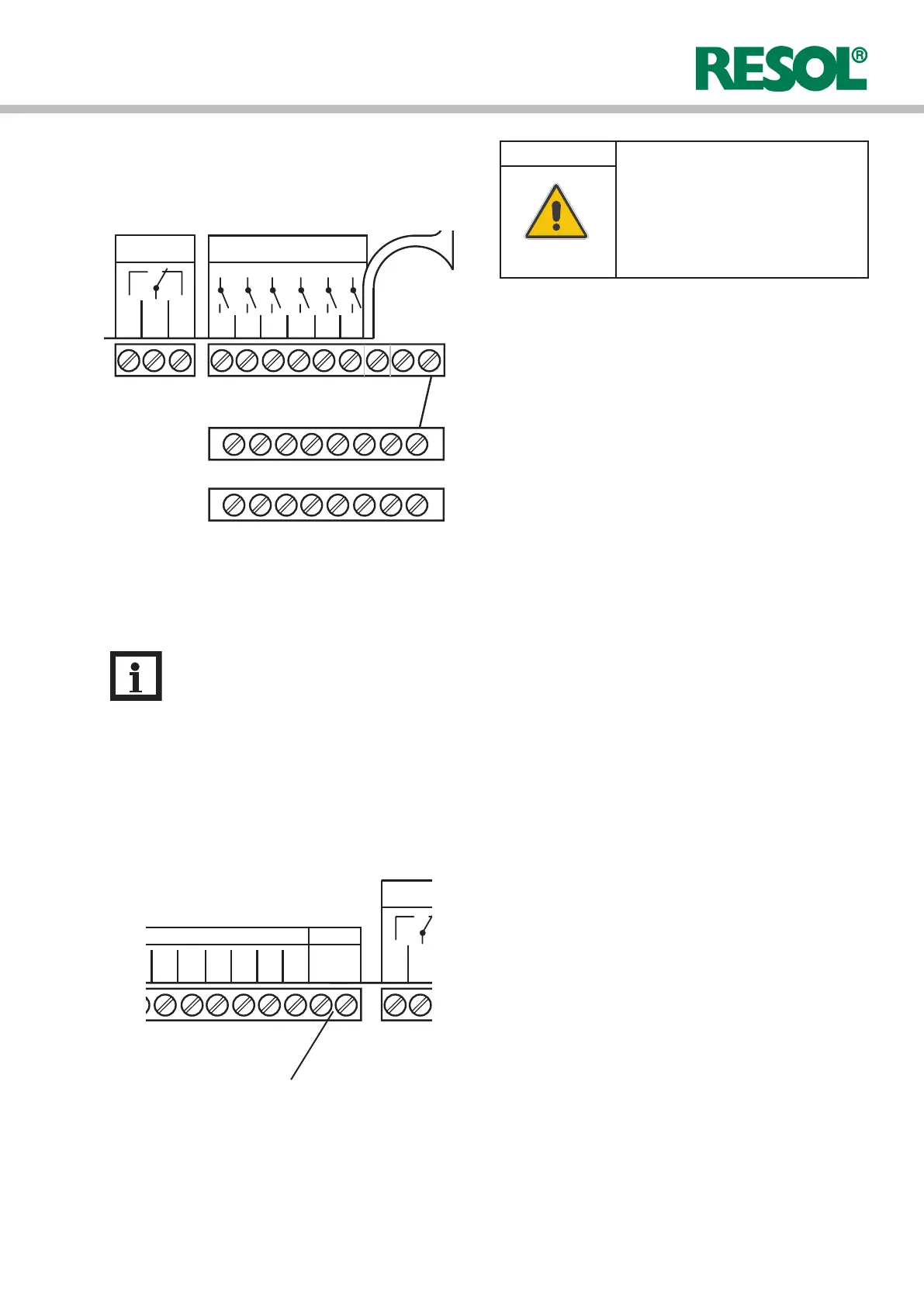

1.2.2 Actuators
(pumps, valves etc.)
The controller is equipped with 7 relays to which loads
(actuators) such as pumps, valves and auxiliary relays can
be connected (A= normally open contact; R = normally
closed / break contact):
• Relays R1 ... R6 are semiconductor relays:
R1 ... R3 = normally open R1 ... R3
(designed for pump speed control)
R4 ... R6 = normally open R4 ... R6
N = neutral conductor N
(common terminal block)
PE = grounding conductor PE
(common terminal block)
• Relay R7 is a dry contact relay with change-over
contact:
R7-M = center contact R7
R7-A = normally open R7
R7-R = normally closed R7
neutral conductor-common terminal block
grounding conductor-common terminal block
+
OK / Set
-
!
GND
S1
S2
S3
S4
S5
S7
S6
S8
CS10
Sensors
L NL'
R7-A
R7-M
R7-R
floating relay
R3
R2
R1
semiconductor
Bus
VBus
S9
S10
R6
R5
R4
1 (1) A (100 ... 240) V~
4 (1) A (100 ... 240) V~
R1-R6
R7
V40
DIn
T4A
IP 20
Vor Öffnen Gerät spannungslos
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use ground common terminal block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
Neutralleiter-
Sammelklemme benutzen!
Use neutral conductor
collective block!
Netz / Mains
100 ... 240 V~
50-60 Hz
N
Made in Germany
DeltaSol E
®
1.2.3 Data communication / bus
The controller is equipped with the RESOL VBus
®
for data
transfer with and energy supply to external modules. Carry
out the connection at the two terminals marked “VBus
®
”
(either polarity). One or more RESOL VBus
®
modules can
be connected via this data bus:
• RESOL calorimeter WMZ
• RESOL Large display module GA3 / Smart Display SD3
• RESOL DL2 Datalogger
• RESOL Heating circuit modules HKM (up to 3 modules)
• RESOL AM1 alarm module
• RESOL VBus
®
/PWM interface adapter
• RESOL VBus
®
/USB interface adapter
VBus
®
terminals
Note:
The minimum pump speed must be set to 100%
when auxiliary relays or valves are connected.
ATTENTION! ESD damage!
Electrostatic discharge can lead to da-
mage to electronic components!
Î Take care to discharge properly
before touching the inside of the
device. To do so, touch a grounded
surface such as a radiator or tap!
D e lt a S o l
®
E
