Model Two Owner’s Manual
Copyright 2014 © Retro Manufacturing, LLCPage 16
Using Your Radio (Basic Operation)
Front Panel Controls
1
2
8
9
10
35
4
67

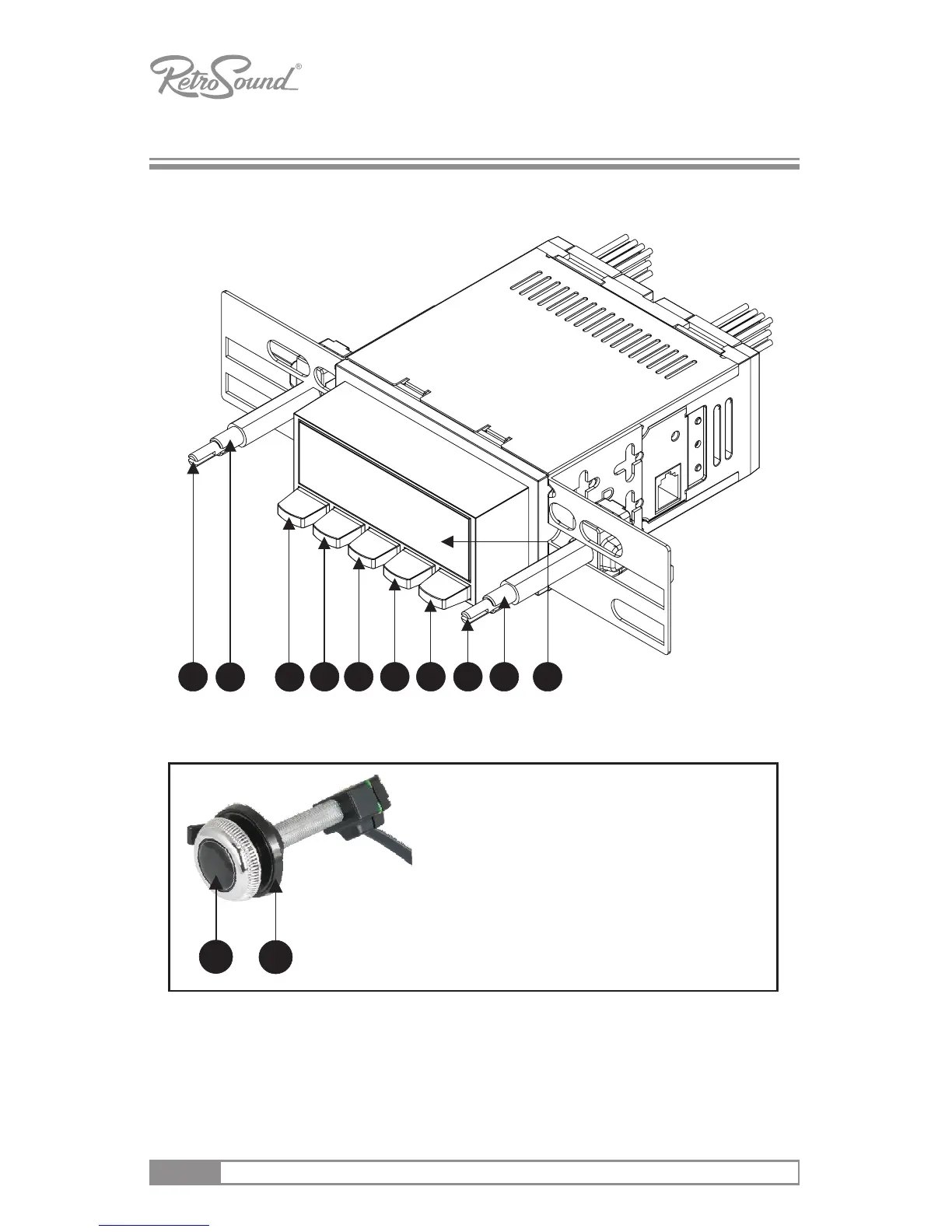

Figure 10 - Front Panel Controls
1
2
Figure 11 - Shaft with Knobs
Both shas are designed for a front
and rear knob, which have push func-
onality. The photo on the le shows
the le sha (1 and 2 in Figure 10) with
knobs installed. Use the “Operaon
Table” on page 17 to determine how to
use the knobs to achieve the desired
response from your Model Two radio.
