Transport, scope of delivery, installation
16

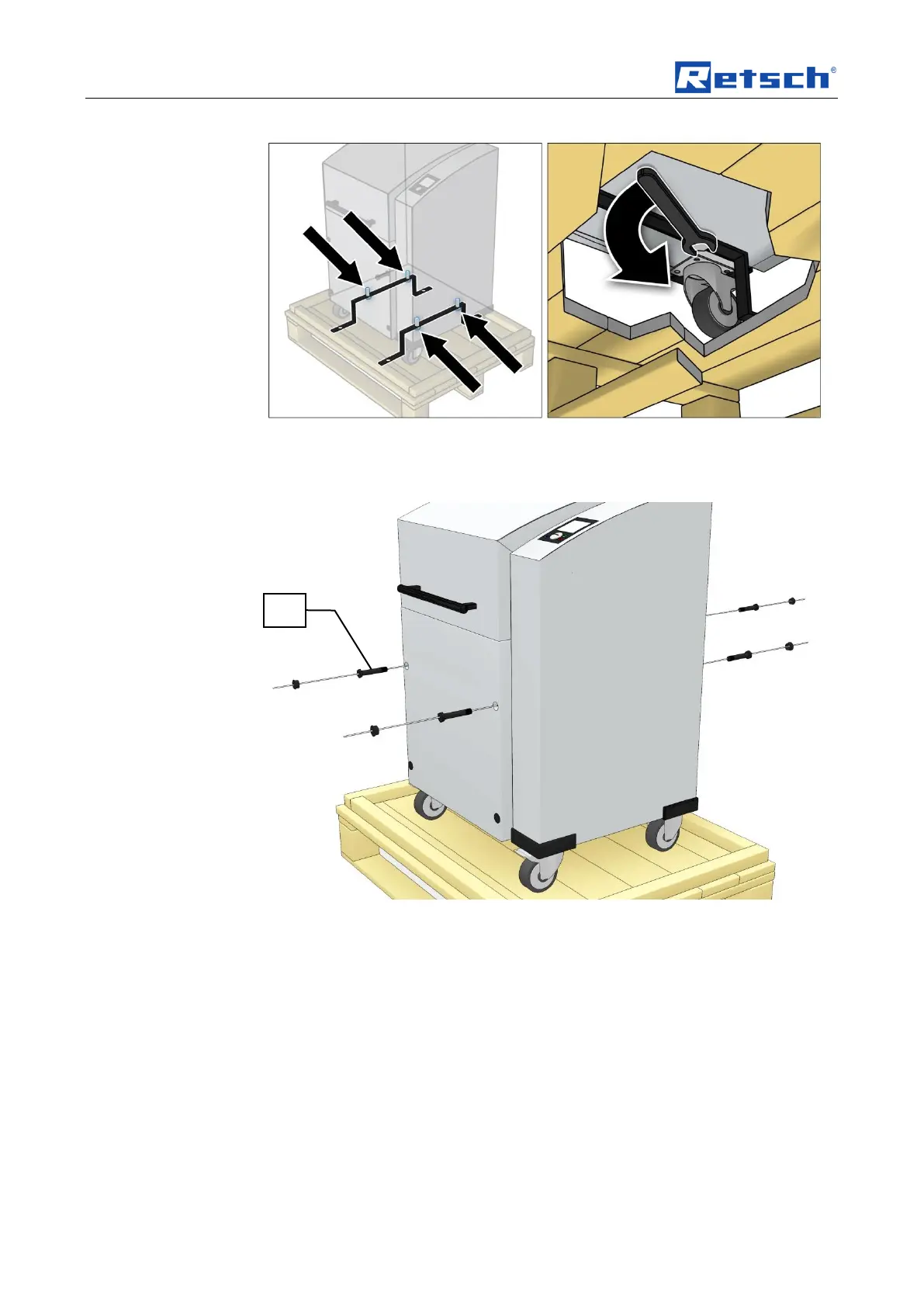

Fig.
: Removing the transport lock from the device
Four bolts secure the transport lock underneath the device.
• Use a 13mm spanner to unscrew the four bolts.
Fig.
: Mounting the transport screws
The device should only be lifted and transported using the 4 transport screws (TS)
provided. Net weight approx. 210 kg
