Output Specifications for Electrical Muscle Stimulation (EMS):
Waveform Biphasic
Shape Square symmetrical with polarity reversal
Maximum Output Voltage (+/-15%) @500 Foot: 35V Body: 19V
Pulse Duration (+/-10%) Foot: 450-970s Body: 450s
Net Charge @ 500 [0.001]mC
Maximum Power Density @ 500 Foot: 0.79 mW/cm Body: 1.66 mW/cm
ON Time (+/- 10%) Foot: 1.90 - 8.30s Body: 1.90 - 6.50s
OFF Time (+/- 10%) Foot: 1.00 - 1.50s Body: 1.00s
The values of PULSE DURATIONS, PULSE repetition frequencies and amplitudes,
including any d.c. component, shall not deviate by more than ± 20 % when measured
with a load resistance within the range specified.
If confirmation is required that the Revitive works within its Essential Performance aer a
certain period of time, contact the manufacturer
Output Specifications for Transcutaneous Electrical Nerve Stimulation (TENS):
Waveform Biphasic
Shape Rectangular
Maximum Output Voltage: @ 500 50 V
Pulse Duration: 100s
Net Charge (per pulse @ 500)
0μC
Maximum Average Power Density @ 500 @ 500 4.19 mW/cm
2
Technical Specications
Complies with European Medical Devices Directive (93/42/EEC)
UK Conformity Assessed
Product conforms to all applicable U.K. legislative requirements.
Device Lot number including year (YYYY) and month (MM) of
manufacture can be found on the box and back of unit
Item number
Contraindications, Warnings and Cautions
Make sure you understand these before using Revitive
Power
Time Remaining
Intensity Level
EMS Mode
TENS Mode
Center Positive Polarity
Class II medical electrical equipment double insulated
Type BF medical electrical equipment
Legal manufacturer of the device
EU/EC European Authorised Representative
#YYYYMMXXXXX
LOT
REF
EN
Symbols

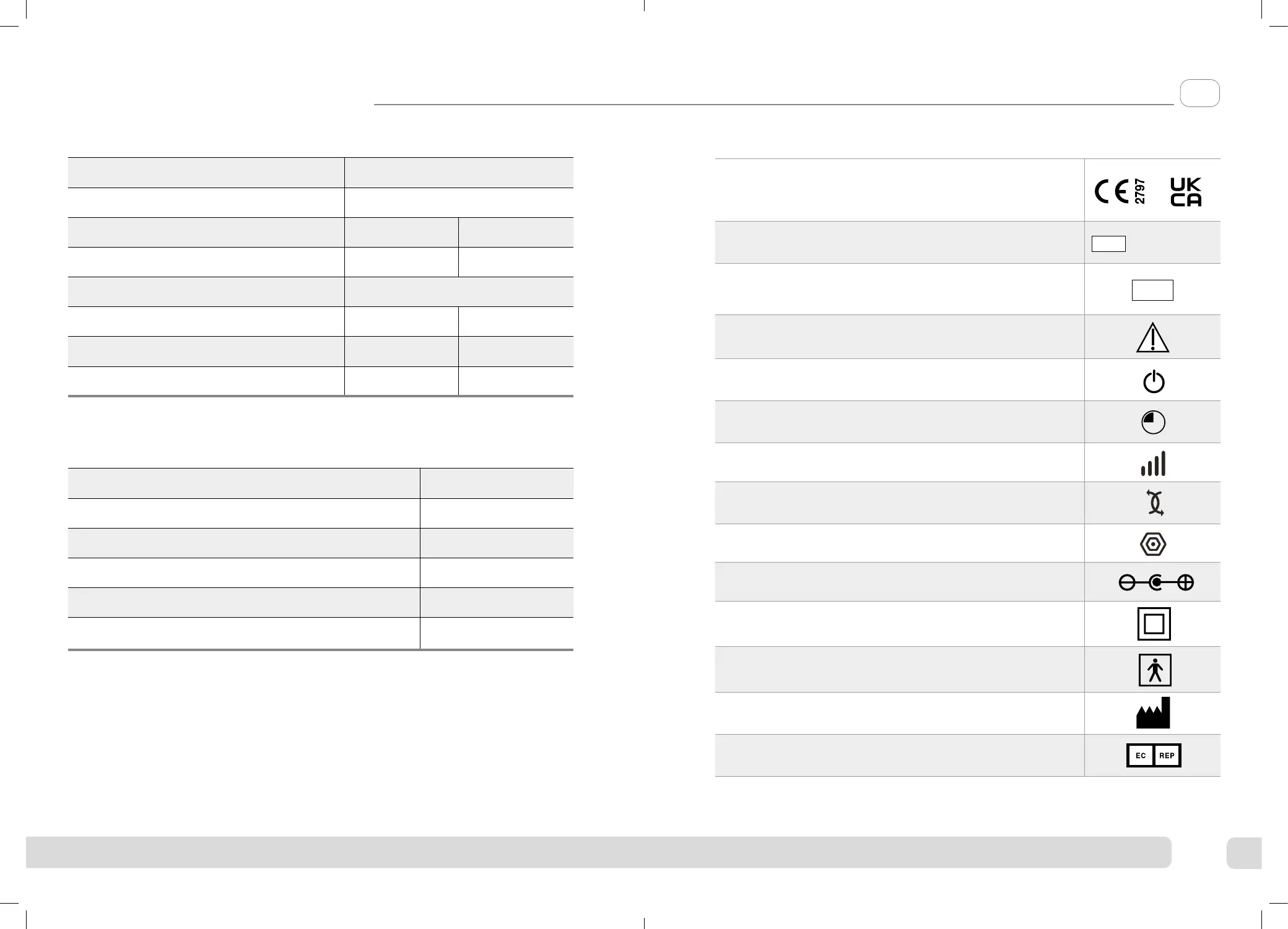

5839_IFU04_18244309.indd 30-31
