Identifying & Ordering Parts
1. Refer to the drive component diagram, Figure 18 and
exploded parts diagram, Figure 19, and make a list of the
parts required by part reference number. For example, Ref.
#15, 20 100, 1A, 2A1, and 2A2. When a gasketed joint
is separated, always replace with new shim-gaskets. Order
Ref. #100 shim-gasket kit.
2. Now re fer to the parts list, Ta ble 11, and de ter mine the
part de scrip tion and Falk part num ber us ing the part
ref er ence num ber (Step 1) and the drive iden ti fi ca tion (e.g.
5107J25) in the col umn head ers of the parts list.
3. Use the part description and Falk part number to order the
required parts. In the examples in steps 1 and 2, Ref. #15,
20, 100, 1A, 2A1 and 2A2 for a 5107J25 would be
ordered as follows:
Seal cover ............. 4723094
Seal ................ 2921419
Shim-gasket kit ........... 4729429
Shaft assembly with gear ...... 4729373
Bearing ...............2926359
Bearing ...............2926359
4. Table 12 and 13 convert Falk part numbers to bearing and
seal manufacturer’s part numbers. Tooth combinations are
listed in Appendix G.
5. Place your order with your local Rexnord-Falk Distributor. If
you need to locate a distributor, phone (414)342-3131 in
the United States or Canada.
Recommended Spare Parts
1. For non-critical drive applications a complete set of
bearings, seals and shim-gaskets is recommended. If
stored in their original packaging in a dry, cool location,
these parts have a minimum shelf life of 5 years.
2. For critical drive applications (where an outage would create
a major production loss), a complete drive is recommended.
Rexnord Industries, LLC 3001 W. Canal St., Milwaukee, WI 53208-4200 USA378-200 (PN-2128394)
Telephone: 414-342-3131 Fax: 414-937-4359November 2010
e-mail: info@rexnord.com web: www.rexnord.comSupersedes 6-07

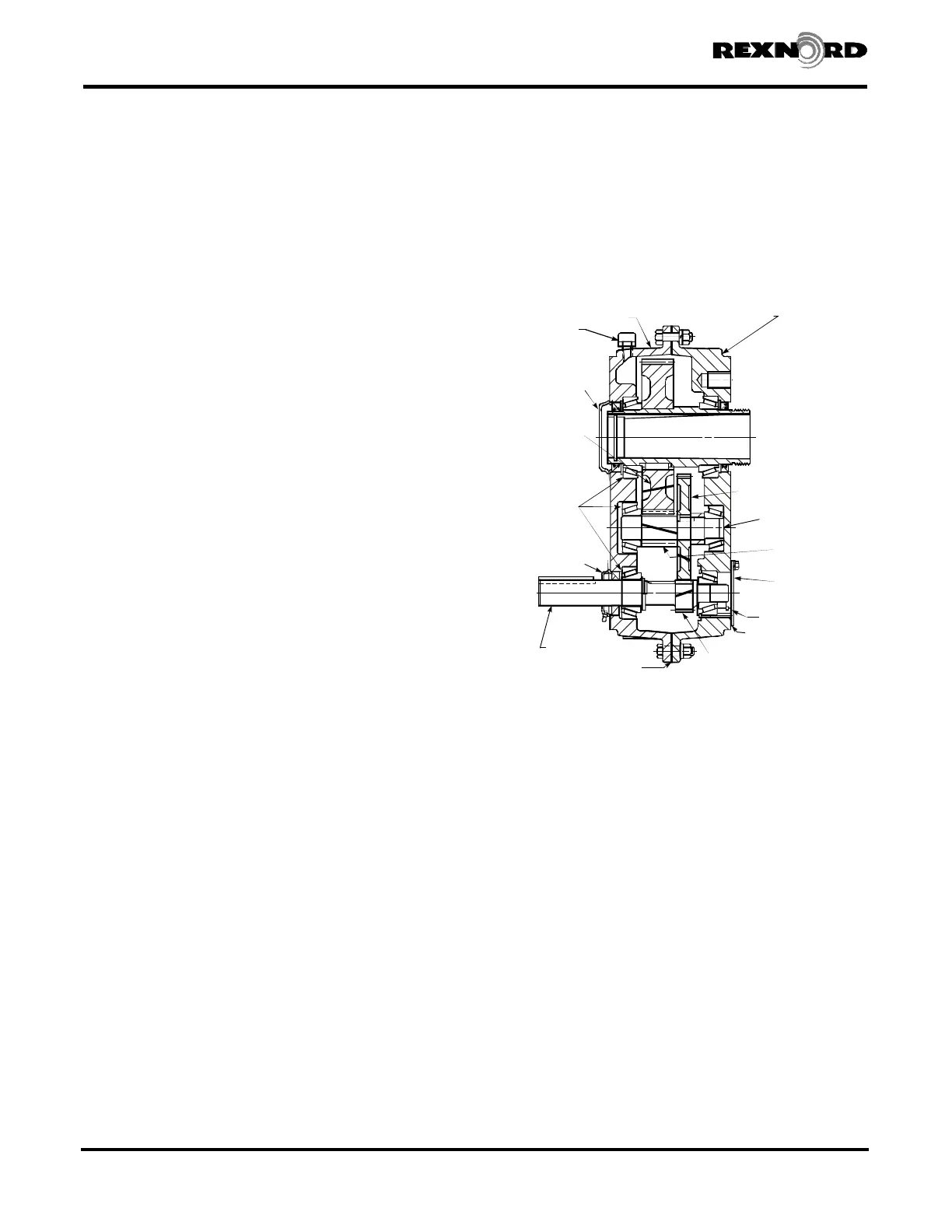

Shaft Mounted Drives Model A
(Page 14 of 44) Sizes 5107-5315
HIGH SPEED
SHAFT COVER
(BACKSTOP COVER)
LOW SPEED
GEAR
LOW SPEED
PINION
ASSEMBLY
LOW SPEED
PINION
HIGH SPEED
SEAL COVER
HIGH SPEED
SHAFT ASSEMBLY
GASKET
ELIMINATOR
HIGH SPEED PINION
GASKET
BACKSTOP
HIGH SPEED GEAR
OUTPUT HOUSING HALF
INPUT HOUSING HALF
AIR VENT
LOW SPEED
SHAFT COVER
METAL SHIMS
Figure 18
