Rexnord Falk A - Appendix H Drive Shaft Recommendations for Tapered Drive Shafts; Tapered Drive Shaft Dimensions

Rexnord Industries, LLC (PN-2128394) 378-200
3001 W. Canal St.,Milwaukee, WI 53208-4200 USA Telephone: 414-342-3131 November 2010
Fax: 414-937-4359 e-mail: info@rexnord.com web: www.rexnord.com Supersedes 6-07
Dimensions – Inches (mm)
H
DRIVE
SIZE
Keyway
D
l
+.000, – .005
(+0,00, – 0,13)
DA
LA
±.030
(±0,76)
LB
+.000, – .010
(+0,00, –
0,25)
LC
+.040, – .000
(+1,02, – 0,00)
LD LE MD
n
S
T
Min.
Key
W
‡
L
±.010 (±0,25)
W H L
5107 .375 (9,53) 2.875 (73,02) 1.614 (40,996) 1.825 (46,36) .437 (11,10) 1.329 (33,76) 5.140 (130,56) 1.50 (38,1) 1.50 (38,1) 1.02 (25,9) .500-13 2.00 (50,8) .375 .375 2.50
5115 .500 (12,70) 3.250 (82,55) 2.173 (55,194) 2.357 (59,87) .500 (12,70) 1.902 (48,31) 5.920 (150,37) 2.72 (69,1) 1.50 (38,1) 1.11 (28,2) .500-13 2.00 (50,8) .500 .375 2.75
5203 .500 (12,70) 3.750 (95,25) 2.425 (61,595) 2.620 (66,55) .500 (12,70) 2.153 (54,69) 5.550 (140,97) 2.13 (54,1) 1.50 (38,1) 1.10 (27,9) .625-11 2.00 (50,8) .500 .375 3.25
5207 .625 (15,88) 4.875 (123,82) 2.725 (69,215) 2.920 (74,17) .625 (15,88) 2.416 (61,37) 6.490 (164,85) 3.10 (78,7) 2.00 (50,8) 1.11 (28,2) .625-11 2.00 (50,8) .625 .438 4.25
5215 .750 (19,05) 4.250 (107,95) 3.258 (82,753) 3.500 (88,90) .750 (19,05) 2.923 (74,24) 7.795 (197,99) 3.75 (95,3) 2.00 (50,8) 1.19 (30,2) .875-9 2.50 (63,5) .750 .500 3.50
5307 .875 (22,23) 5.875 (149,22) 3.878 (98,501) 4.100 (104,14) .875 (22,22) 3.413 (86,69) 8.320 (211,33) 4.46 (113,3) 2.04 (51,8) 1.27 (32,2) 1.000-8 2.75 (69,8) .875 .625 5.00
5315 1.000 (25,40) 6.000 (152,40) 4.433 (112,598) 4.664 (118,47)1.000 (25,40) 3.871 (98,32) 8.710 (221,23) 4.75 (120,7) 2.00 (50,8) 1.27 (32,2) 1.000-8 2.75 (69,8) 1.000 .750 5.00
H
Dimensions are for reference only and are subject to change without notice unless certified.
‡
Inch keyway width tolerances are as follows: over .312” (7,92) to & including .500” (12,70) = +.0025” (+0,064), –.0000” (–0,000), over .500” (12,70) to &
including 1.000” (25,40) = +.0030”(+0,076), –.0000”(–0,000). Keyway depth tolerance is +.010”(+0,25), –.000”(–0,00).
l Straight diameter is used to aid in measurement and manufacture of the keyway.
n
Dimension “MD” will vary slightly depending on degree of axial compression during installation and manufacturing tolerances.

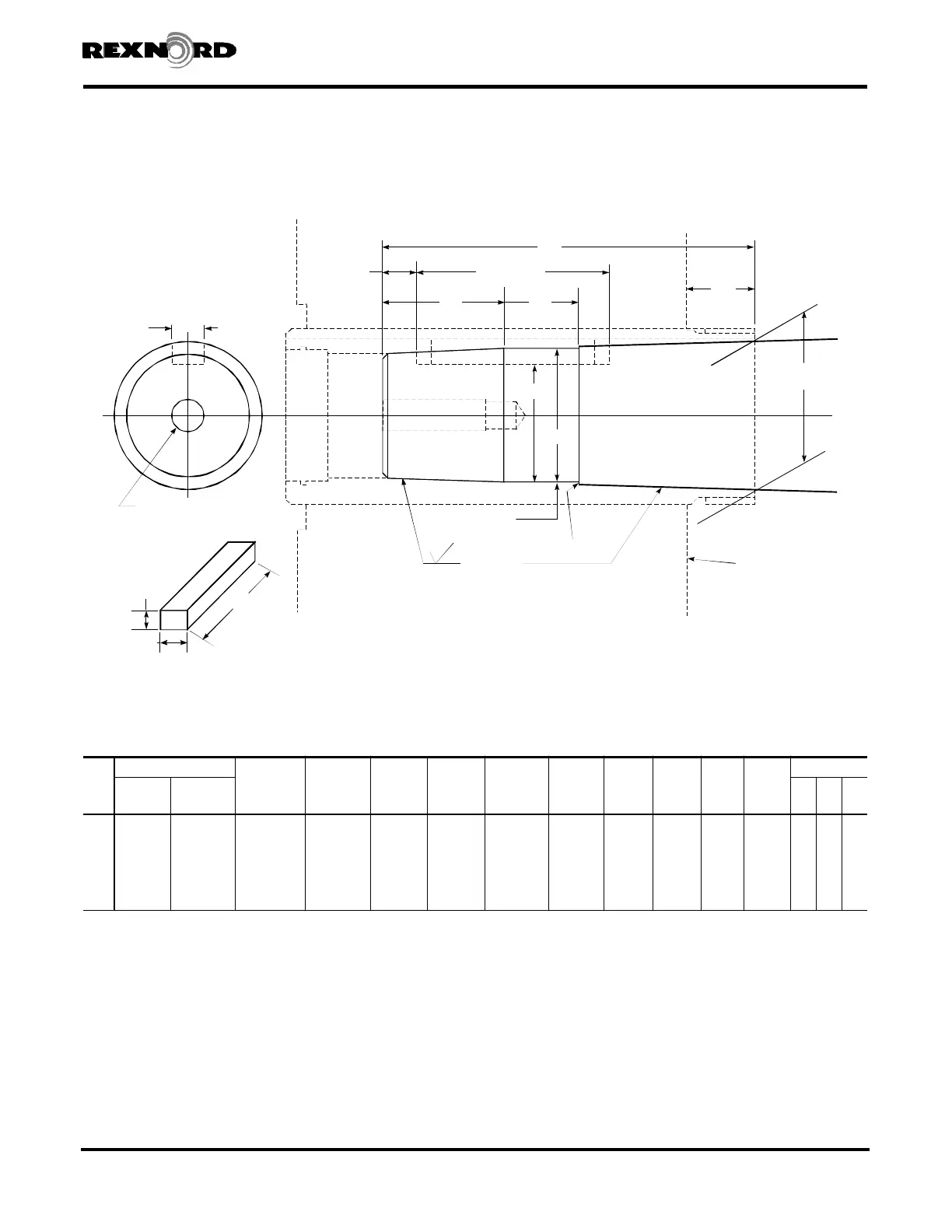

KEYWAY
1-S DIA. UNC. TAPPED HOLE
T-DEEP
KEY
H (Key)
W (Key)
L (Key)
90
STRAIGHT
DIAMETER
D
DA - BASIC DIA.
OF TAPER
MD
LC
L (Keyway)LA
LD LE
LB
1:16 BASIC
TAPER ON
DIAMETER
(.750 T.P.F.)
.25" RADIUS
(6,4 mm)
HOUSING
SURFACE
W (Keyway)
Drive Shaft Recommendations for Tapered Drive Shafts
Falk™
Quadrive
Shaft Mounted Drives Model A
•
Appendix H
Sizes 5107-5315 (Page 37 of 44)
