Rexnord Falk A - Appendix L OSHA V-Belt Guard Installation for Drives with Shaft Fan; Assemble Motor Mount and Motor; Assemble Guard Mounting Bracket & Adapter; Assemble Backplate to Bracket & Fan

WARNING: Consult applicable local and national safety codes
for proper guarding of rotating members.
WARNING: Lock out power source and remove all external
loads from drive before servicing drive or accessories.
Rexnord Industries, LLC (PN-2128394) 378-200
3001 W. Canal St.,Milwaukee, WI 53208-4200 USA Telephone: 414-342-3131 November 2010
Fax: 414-937-4359 e-mail: info@rexnord.com web: www.rexnord.com Supersedes 6-07

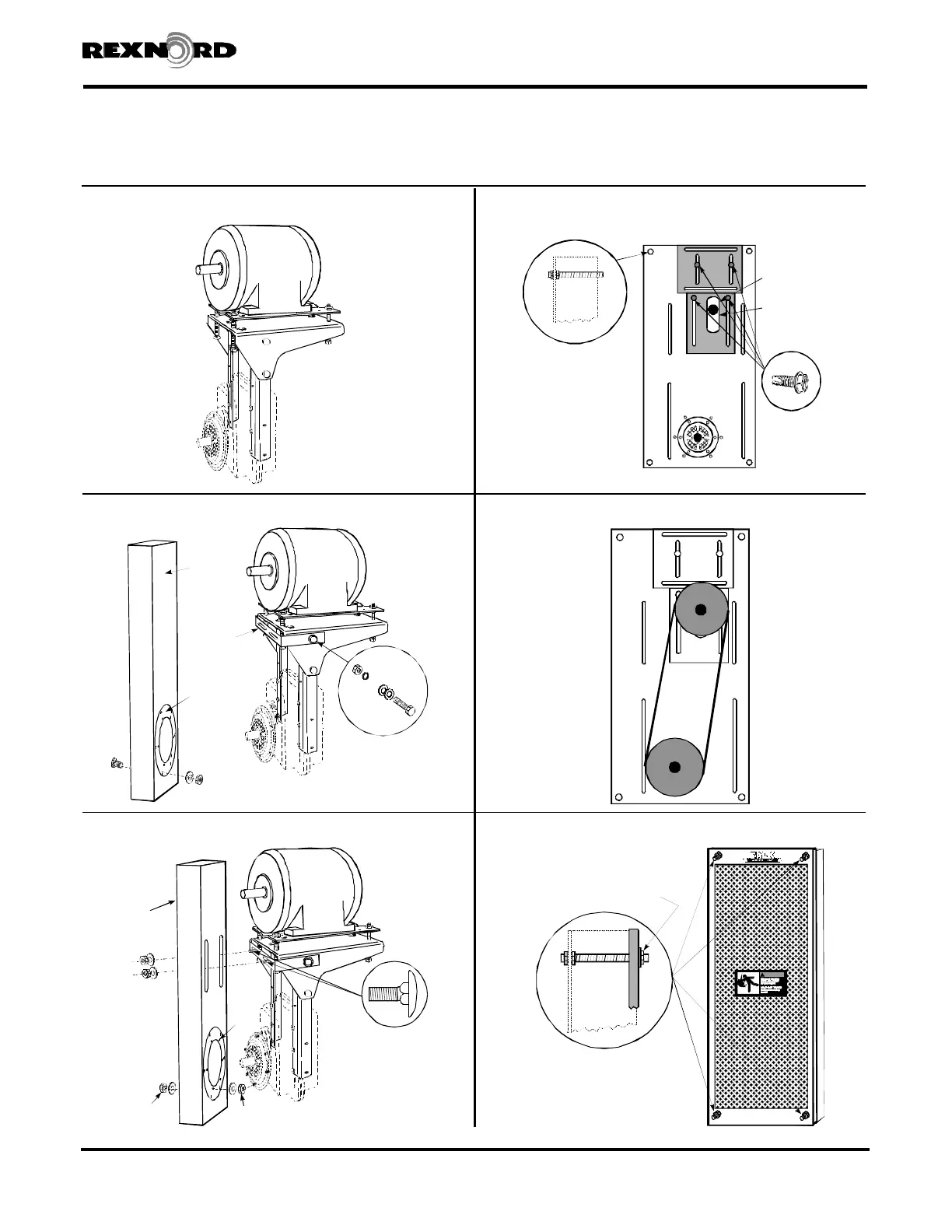

OSHA V-Belt Guard Installation for Drives with Shaft Fan
1. ASSEMBLE MOTOR MOUNT AND MOTOR TO DRIVE AS
INSTRUCTED IN APPENDIX D
4. ASSEMBLE THREADED RODS TO BACKPLATE & MOUNT SLOT
COVER(S) AS REQUIRED
2. ASSEMBLE GUARD MOUNTING BRACKET & ADAPTER 5. MOUNT BELT DRIVE AS INSTRUCTED IN APPENDIX D
3. ASSEMBLE BACKPLATE TO BRACKET & FAN
6. MOUNT COVER AND APPLY WARNING LABEL
ALLOW FOR BELT
INSTALLATION
ALLOW FOR
BELT TAKE UP
GUARD
MOUNTING
BRACKET
ADAPTER
GUARD
BACKPLATE
GUARD
BACKPLATE
LOCKNUT
HEXNUT
SLOTS
CH_930001
WARNING!
LOCKNUT
& FLAT
WASHER
Falk™
Quadrive
Shaft Mounted Drives Model A
•
Appendix L
Sizes 5107-5315 (Page 43 of 44)
