PAGE 5

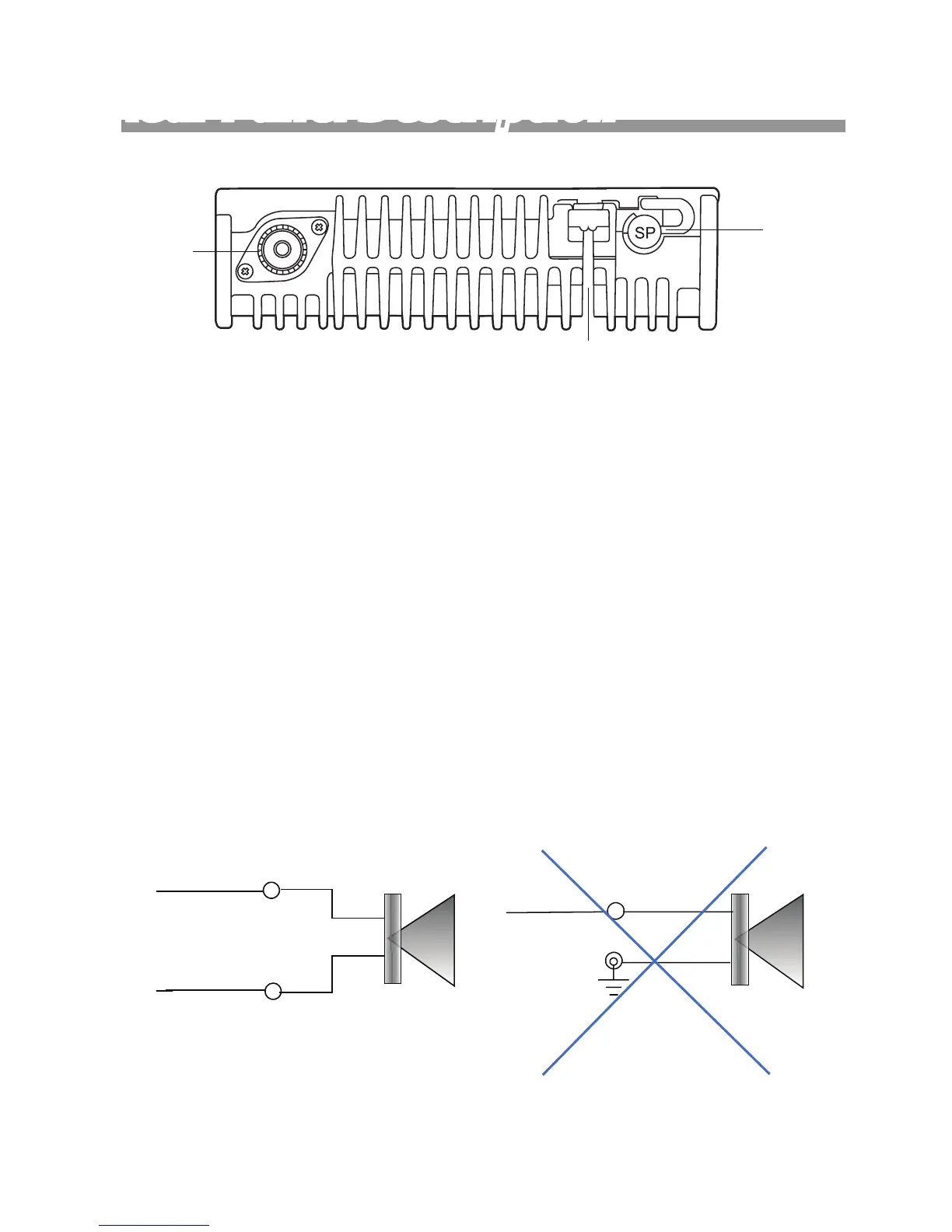

Rear Panel Description
q
w
e
q Antenna Socket
Connect an antenna to the socket with M type cable.
w DC Power Cable
Connects 12VDC battery to the cable. pay attention to polarities .
DO NOT connect to 24VDC battery. This will damage the transceiv-
er.
e External Speak Jack :
Connects an 8 Ω external speaker with 3.5mm phone jack if de-
sired.
CAUTION: External Speaker is designed with Bridge Tied
Load(BTL) audio output. The Speaker-plus and Speaker-minus
outputs should NEVER be tied to ground. Doing so could result in
damage to the BTL output , please following below installation.
Speaker +
Speaker -
Speaker
Speaker
Speaker +
Equipment Ground
To Next Page
