REXROTH CS 530 - Layout; Main Menus

2

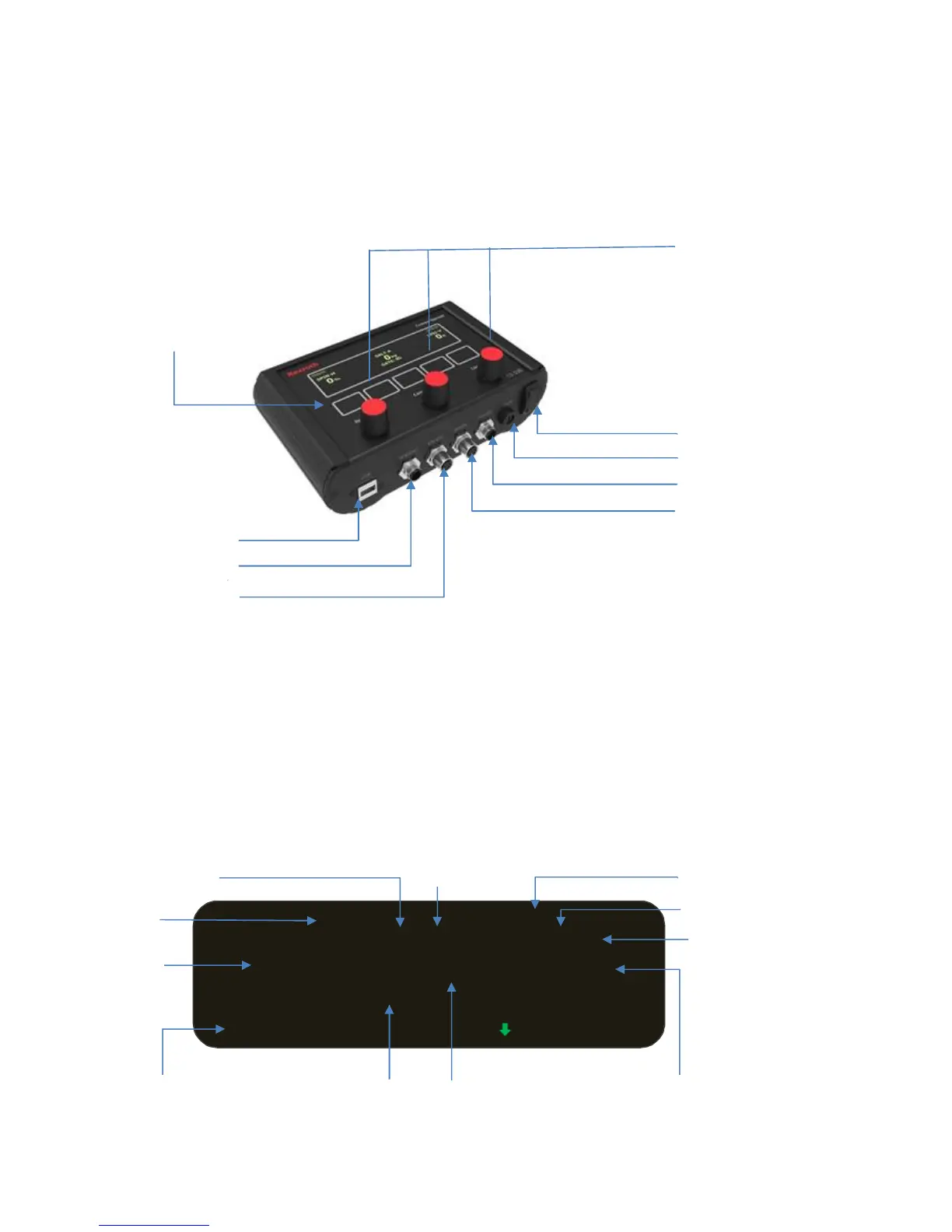

1 LAYOUT
CS 530 is a three function programmable controller, available in Manual, Closed or Open Loop mode, for the
controlled application of granular solids and liquids in snow and ice control.
See Appendix for system layout in detail.
2 MAIN MENUS
When the truck is stopped or no ground speed signal is coming in, the screen below will be shown:
Power Switch
Fuse
Power Cable
Serial Cable
Sensor Cable
Valves Cable
USB Port
Three Encoders
with push buttons
Touch Pads
0KMh 11:35:07
SPIN‒M SALT‒C LIQ1‒V
0% 0kg 0Lt
GATE: 05
TOTAL
SETUP MISC XXXXX REVS
Conveyor mode
Speed
Liquid mode
Spinner
Solid material
System clock
Liquid material
Gate position Solid rate Liquid rate Keypad functions
