Applicable to 18K5...37K0

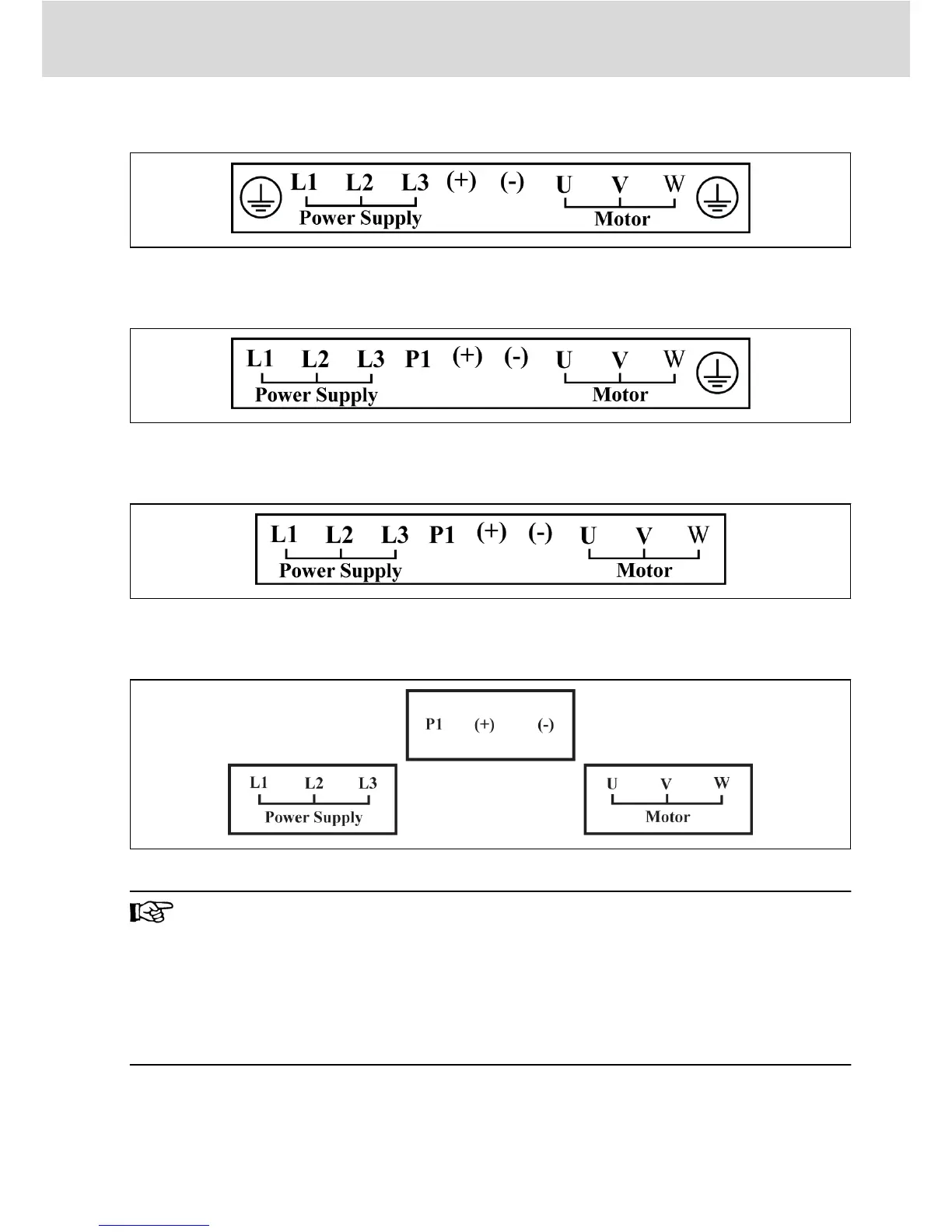

Fig. 2-5: Power terminals_Frame 3, 4
Applicable to 45K0...90K0
Fig. 2-6: Power terminals_Frame 5, 6
Applicable to 110K
Fig. 2-7: Power terminals_Frame 7 (110K)
Applicable to 132K...160K
Fig. 2-8: Power terminals_Frame 7 (132K, 160K)
1. For 11K0...160K, the main circuit terminals are on the bottom
of the frequency converters.
2. For 45K0...160K, UL marked connectors and cables should be
used for wiring of the terminal blocks. The connectors may be
of crimp, ring or fork types or other similar types.
3. There are two grounding connections, one for the input side,
the other for the output side.
