3.2 Start-up

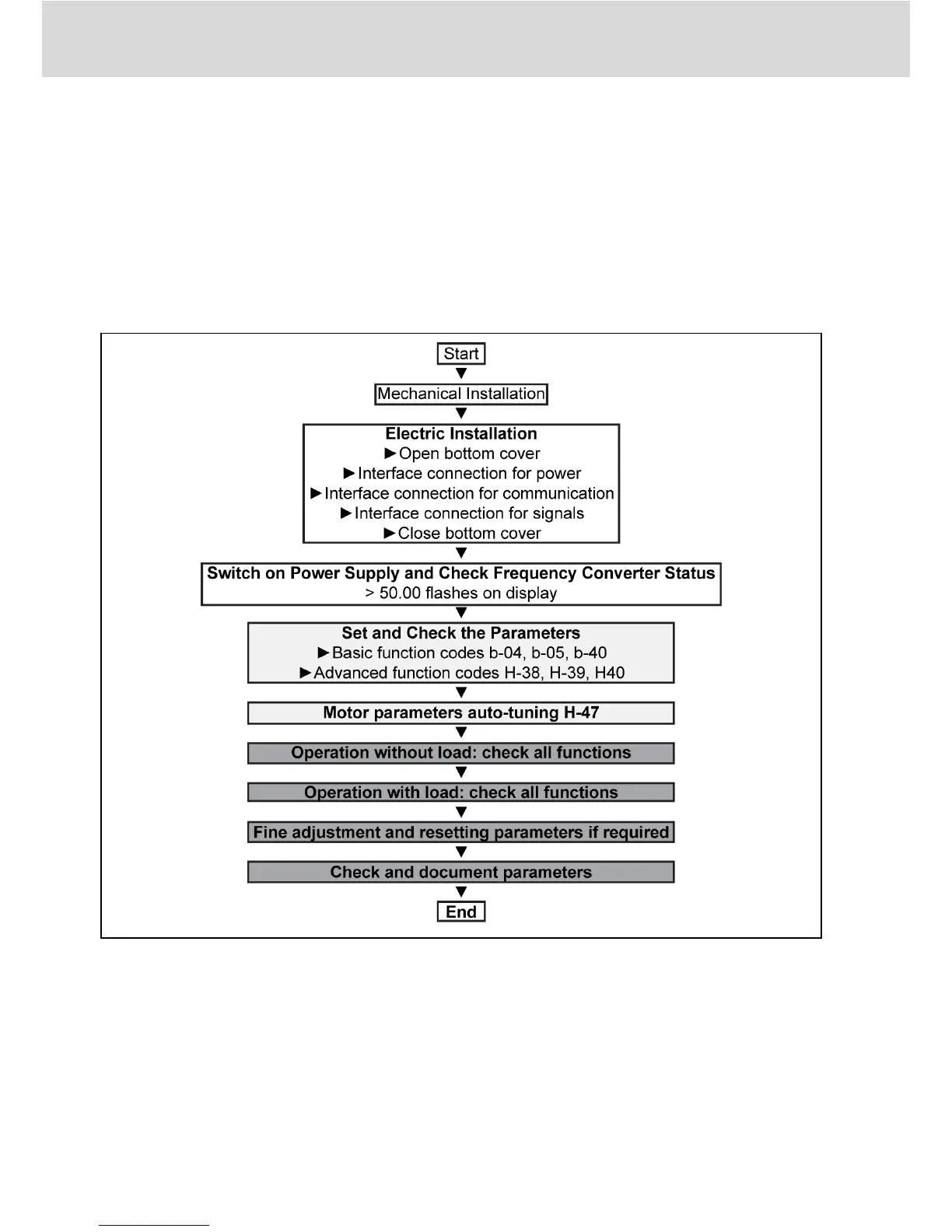

The diagram below shows the standard start-up procedure for the frequency
converter.
● White boxes: check whether all the work listed has been performed correctly
before beginning the start-up
● Light grey boxes: start-up (described on the following pages)
● Dark grey boxes: to prevent damage, proceed as is described after the start-
up
Fig. 3-2: Start-up procedure
Bosch Rexroth AG
Parameter Settings
18/31
DOK-RCON01-FE*********-IN04-EN-P
