REXROTH Fe Series - Interface Connection for Signals

2.3 Interface Connection for Signals
2.3.1 Jumper Wiring

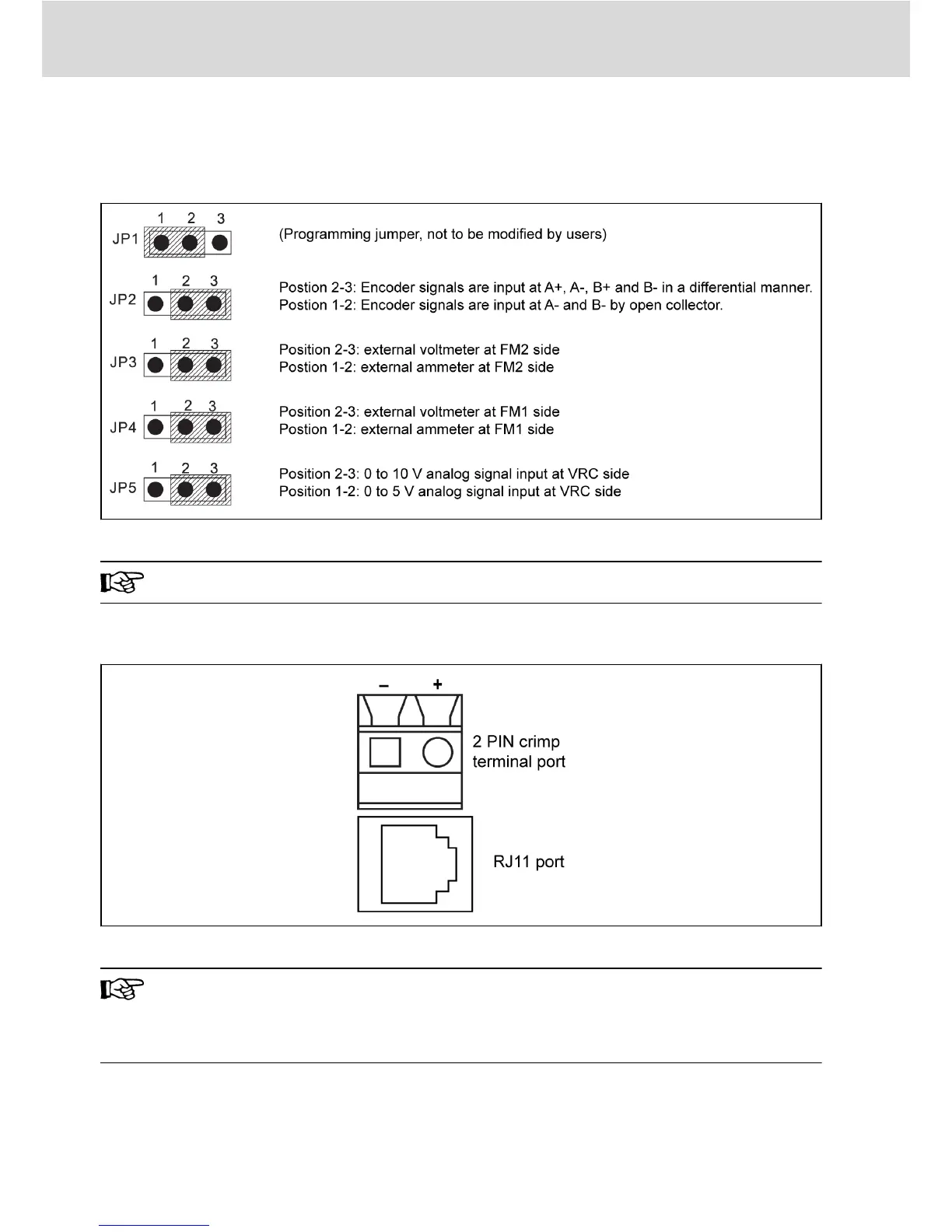

Fig. 2-9: Jumper description
Shown above are factory defaults.
2.3.2 Communication Port
Fig. 2-10: RS485 communication port
● Crimp terminal wiring range: AWG 22...AWG 12
● Crimp terminal wire type: 75 ℃ and above copper only
● Crimp terminal torque: 5 kgf-cm (4.3 In-ibf)
