REXROTH Fv Series Quick Start Guide

3 Parameter Settings
3.1 Operating Panel
When setting parameters, the integrated operating panel is used for all naviga-
tion, data input and modification and to display all operating parameters and pa-
rameter values. The diagram below shows the operating panel and the function
of the individual operating elements.

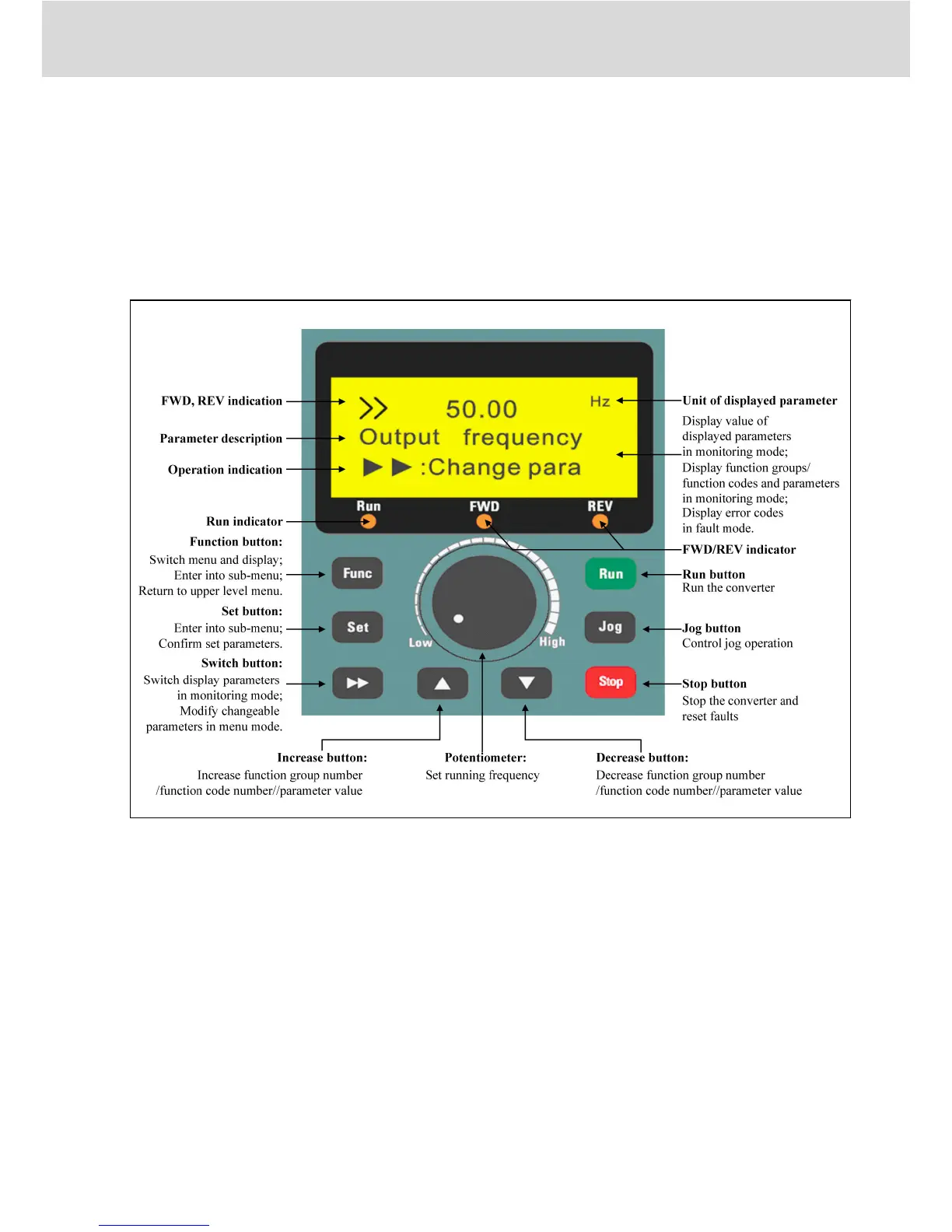

Fig. 3-1: Fv operating panel
3.2 Start-up
The diagram below shows the standard start-up procedure for the frequency
converter.
● White boxes: check whether all the work listed has been performed correctly
before beginning the start-up
● Light grey boxes: start-up (described on the following pages)
● Dark grey boxes: to prevent damage, proceed as is described after the startup
Bosch Rexroth AG
Parameter Settings
DOK-RCON02-FV*********-IN05-EN-P
23/39
