1.3 Installation Conditions
Depending on rating, the frequency converters are available in different sizes. In
order not to affect device cooling, the frequency converter must always be in-
stalled upright. For perfect heat dissipation, the minimum installation spacing
above and below the devices shown in the drawing must be observed.

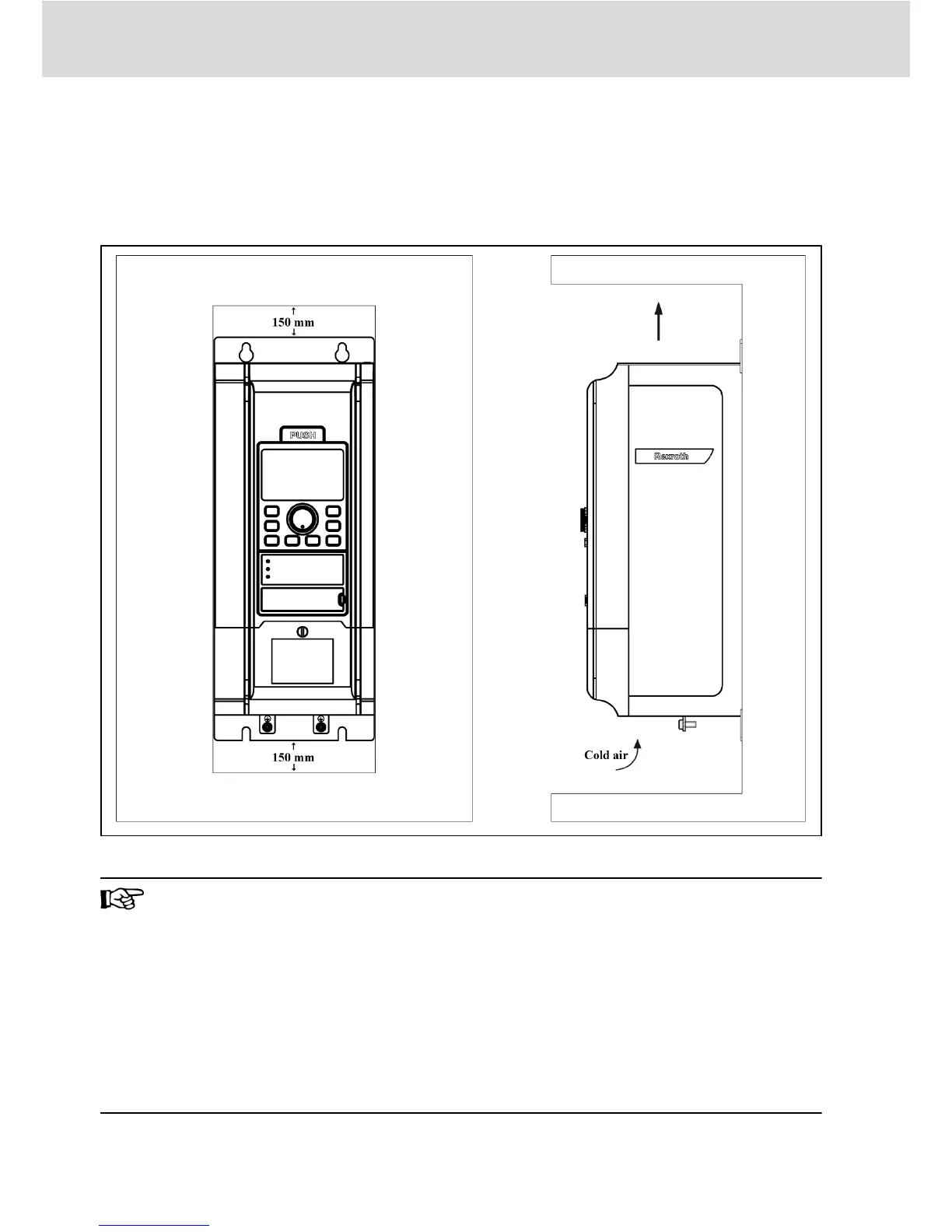

Fig. 1-1: Installation conditions
●
The frequency converter shown above is Frame 1. The minimum
installation spacing stated applies to Frame 1 to Frame 7.
● Frequency Converter Fv has no side ventilation hole, which ena-
bles parallel mounting of Fv with zero distance.
● If one frequency converter is arranged above another, make sure
the upper limit of air temperature into the inlet is not exceeded
(see chapter 1.2 "Ambient Conditions" on page 1). A baffle plate
is recommended between the frequency converters to prevent the
rising hot air being drawn into the upper converter if the upper
limit of air temperature is exceeded.
Bosch Rexroth AG
Mechanical Installation
2/39
DOK-RCON02-FV*********-IN05-EN-P
