2 -, *-(1!2 '$3+ 4 )&-%+ '$
2 -, *-(1!2 '$3+ 4 )&-%+ '$2 -, *-(1!2 '$3+ 4 )&-%+ '$
2 -, *-(1!2 '$3+ 4 )&-%+ '$
Connection
Before connecting a device (a computer or a Slave) to the Master
under power, you must turn off the device. The Master must have
equal or more 'PC x' ports than that of the Slave, i.e., if KNV108 is
the master, KNV108 and KNV104 can be Slaves, but KNV116 can
not.
The ports labeled "
PC 1
"~”
PC 8
can be connected to either a
computer or a Slave's
CONSOLE
port, as shown in figure 10. The
ports
PC A
"~”
PC H
can only be connected to a computer. A
power adapter with DC 9V/500mA output rating must be connected
to the Master.

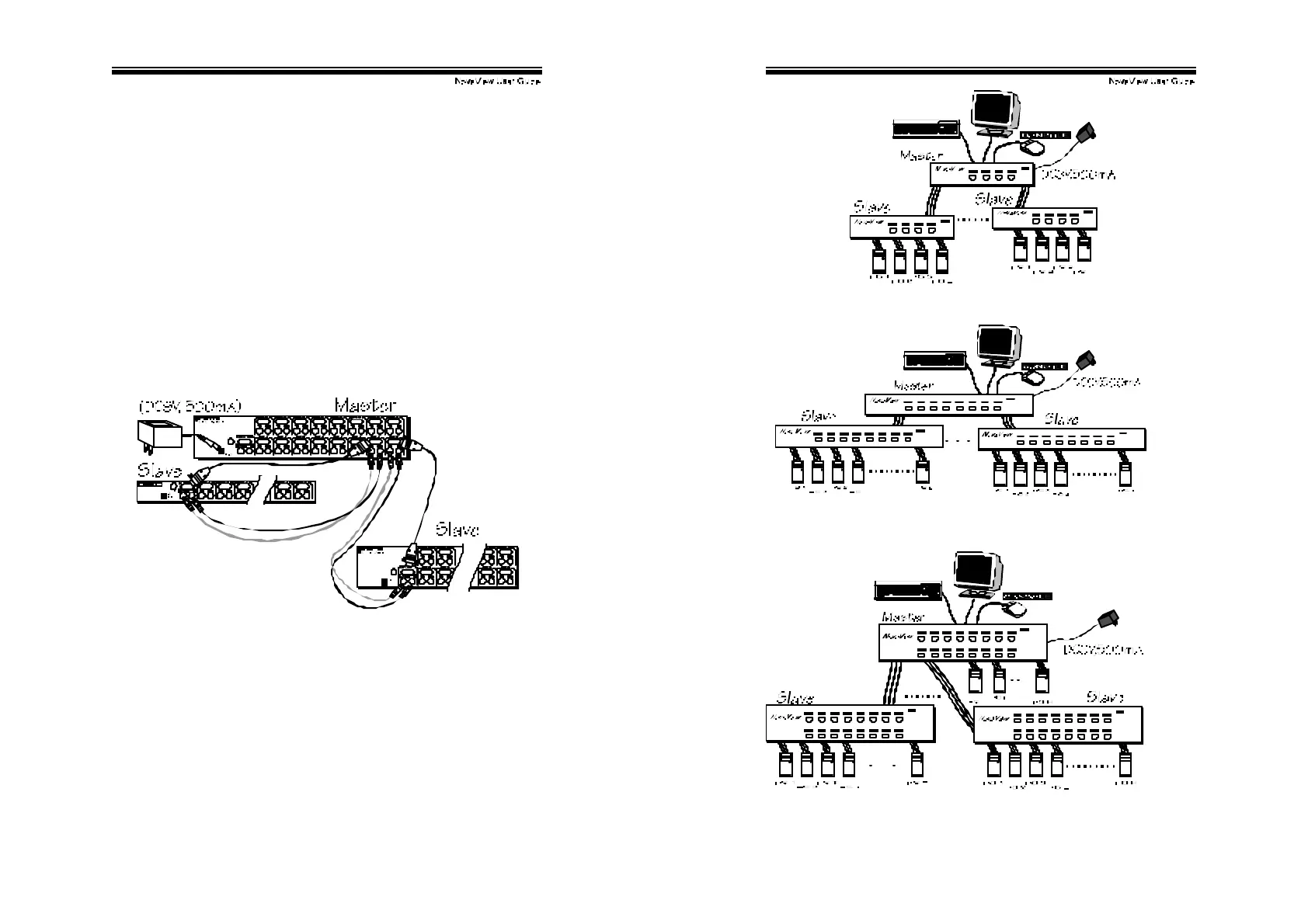

Figure 10: Slave console connection
The maximum number of computers controlled by a master/slav e
conf iguration with all KNV104s is 16 with 4 Slaves and each Slave
connects to 4 computers, see figure 11. For an all KNV108s
conf iguration, the number is 64 with 8 Slaves and each Slave
connects to 8 computers, see f igure 12. For an all KNV116
conf iguration, the number is 136, see figure 13. The Master
KNV116 connects to 8 Slav es and 8 computers, and each Slave
connects to 16 computers.
!
!
#$!
Figure 11: Cascaded 4-port NovaViews
Figure 12: Cascaded 8-port NovaViews
Figure 13: Cascaded 16-port NovaViews
