Multimedia Module
An optional multimedia A/V module (MAV108) is used to select
microphone, speaker and monitor signals from one out of eight
computers. The A/V module is connected to the
LINK
port on the
rear panel v ia an mini-DIN-8 connector. When a computer is
selected, the microphone signal is directed to that computer, speaker
and monitor signal source f rom the same computer.
As an OSD option, the A/V module may select a computer different
from that of the NovaView system. There are two options in Audio
Stick f unction (<F4>:More\Audio Stick). When set to '
On
', A/V
module selection follows computer selection. When set to '
Off
', A/V
module selection stops f ollowing computer selection. It is usef ul if
you want to listen to one particular computer's audio signal while
selecting other computers during operation.
With extra VGA ports, the A/V module enables you to view multiple
monitors from one PC at the same time. Now you can extend your
Windows desktop for all your computers and switch accordingly.
!
!
"$!
!
!!
!
""""""""""
""""""""""""""""""""
""""""""""""""""""""""""
""""""""""""""""""""""""""""
""""""""""""""!
!!
!
/01&-%+'$
/01&-%+'$/01&-%+'$
/01&-%+'$
Front Panel Push Buttons
You may select a computer by pressing the front panel push button
directly, by issuing hot-key commands or by activ ating the OSD
window (f or models with OSD support). The f ront panel indicator
changes to ref lect the computer port selected (red) and whether the
port is connected to a powered computer (green). The indicator
flashes red when it is in either Auto Scan or Manual Scan mode.

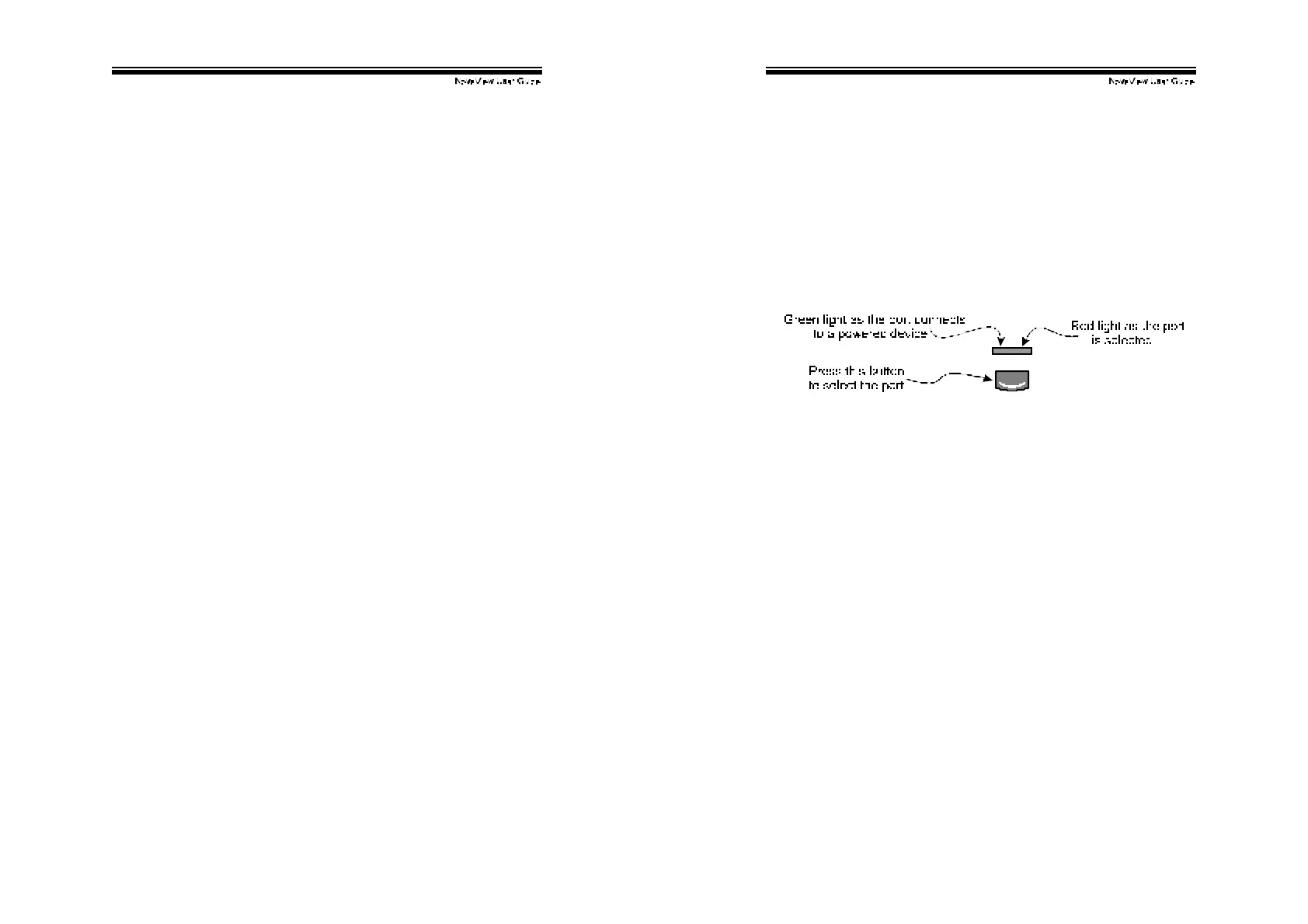

Figure 8: Front panel indictor
Some computers support 'keyboard/mouse power up' function, i.e.,
press certain keys or mouse buttons to startup the computers. Their
corresponding green front indicators lit all the time even if the
computers are 'off'.
"
K/M RESET
K/M RESET
solves most problems developed by keyboard, mouse,
device replacement or change of configuration. Press down both
the front-panel number
1
and
2
push buttons f or 2 seconds to
re-conf igure the whole system without turning either the NovaView
Switch or any computer of f .
"
AU TO SC AN
Nov aView prov ides an easy to use f eature to start Auto Scanning.
You can press down both the front-panel number
7
and
8
buttons for
2 seconds to start Auto Scanning.
