Device Connection
The monitor connected to the HD-DB-15 VGA port of a Master
CONSOLE
must be capable of synchronizing with the computer's
video signal. If you are uncertain about the monitor ty pe, please
consult the monitor user's manual. Connect a PS/2 mouse and a
key board to the
CONSOLE
port marked with a mouse and a
key board respectively as shown in f igure 3. [NOTE: Only a PS/2
mouse can be connected to the
CONSOLE
mouse port. The
NovaView's automatic mouse conversion system allows you to
connect computers using serial mouse and control the computers
from one PS/2 mouse.]

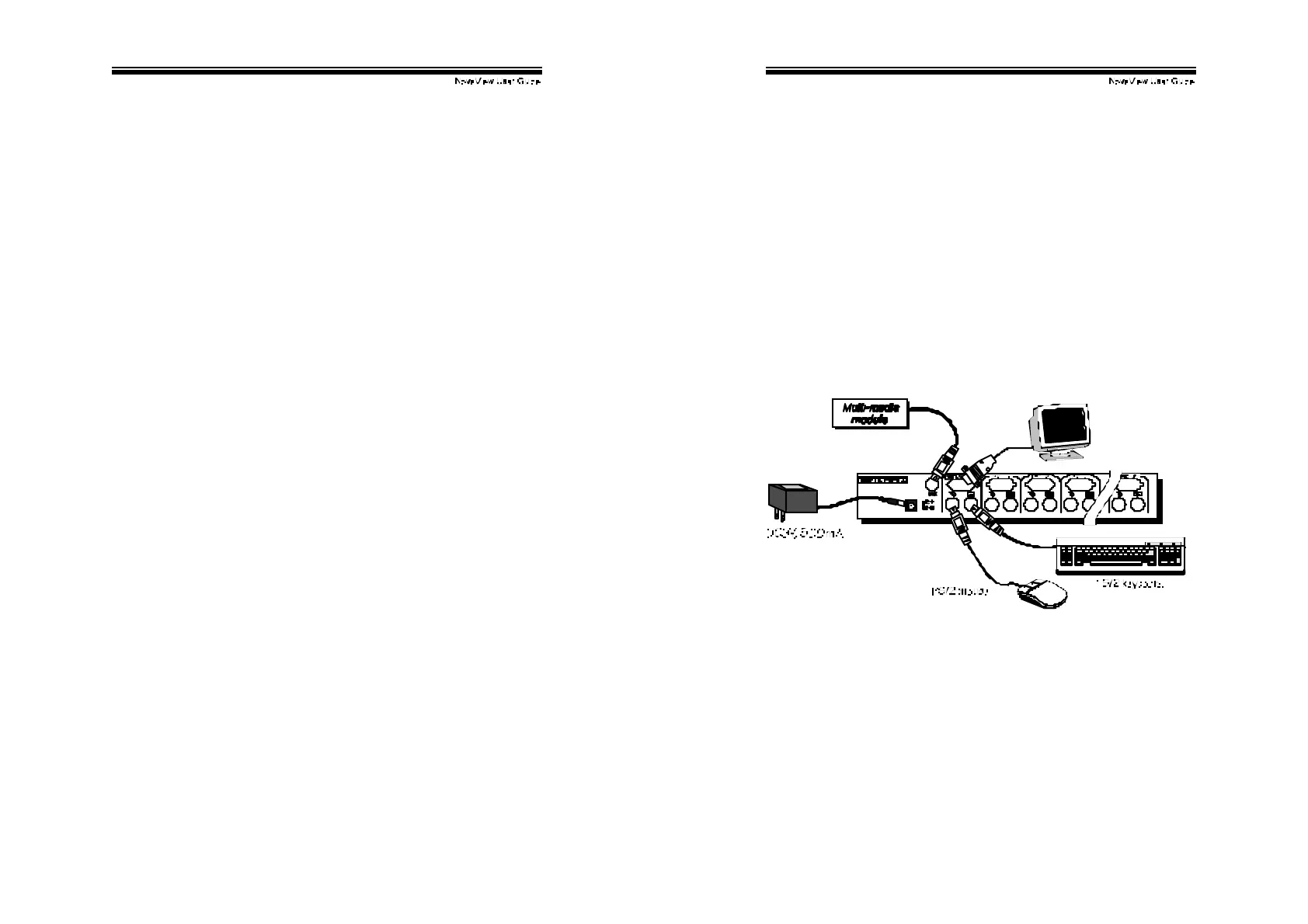

Figure 3: Master console connection
