INSTALLATION—CONTINUED
Heater Suspension—Continued
2. Using hoist, lift, or sufficient personnel to support tube assembly, connect each suspension bracket to each building
or structure suspension point using S-hooks in accordance with Figure 15 or Figure 16.

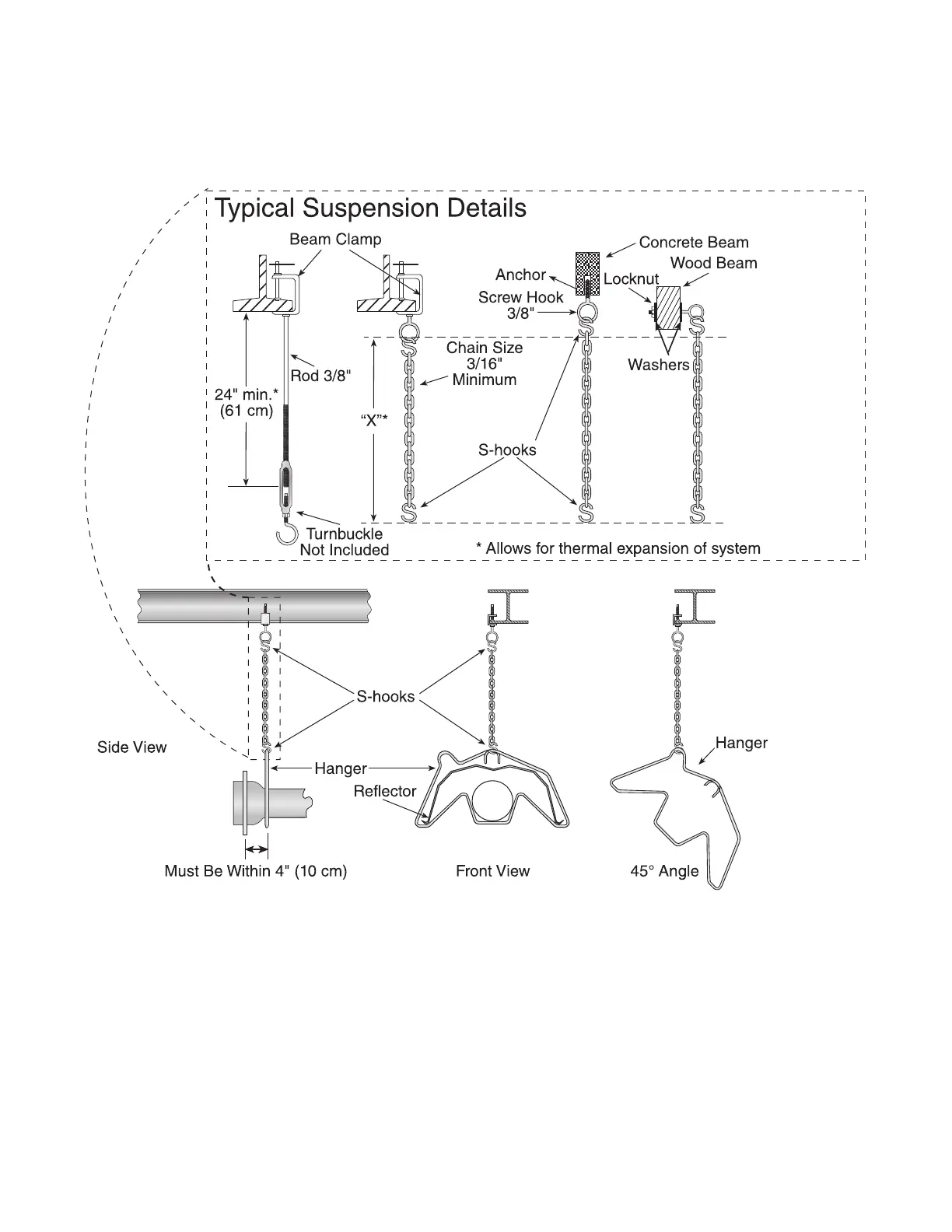

Figure 15. Typical Indoor Heater Suspension
