Form I-X, P/N 150491 R7, Page 30

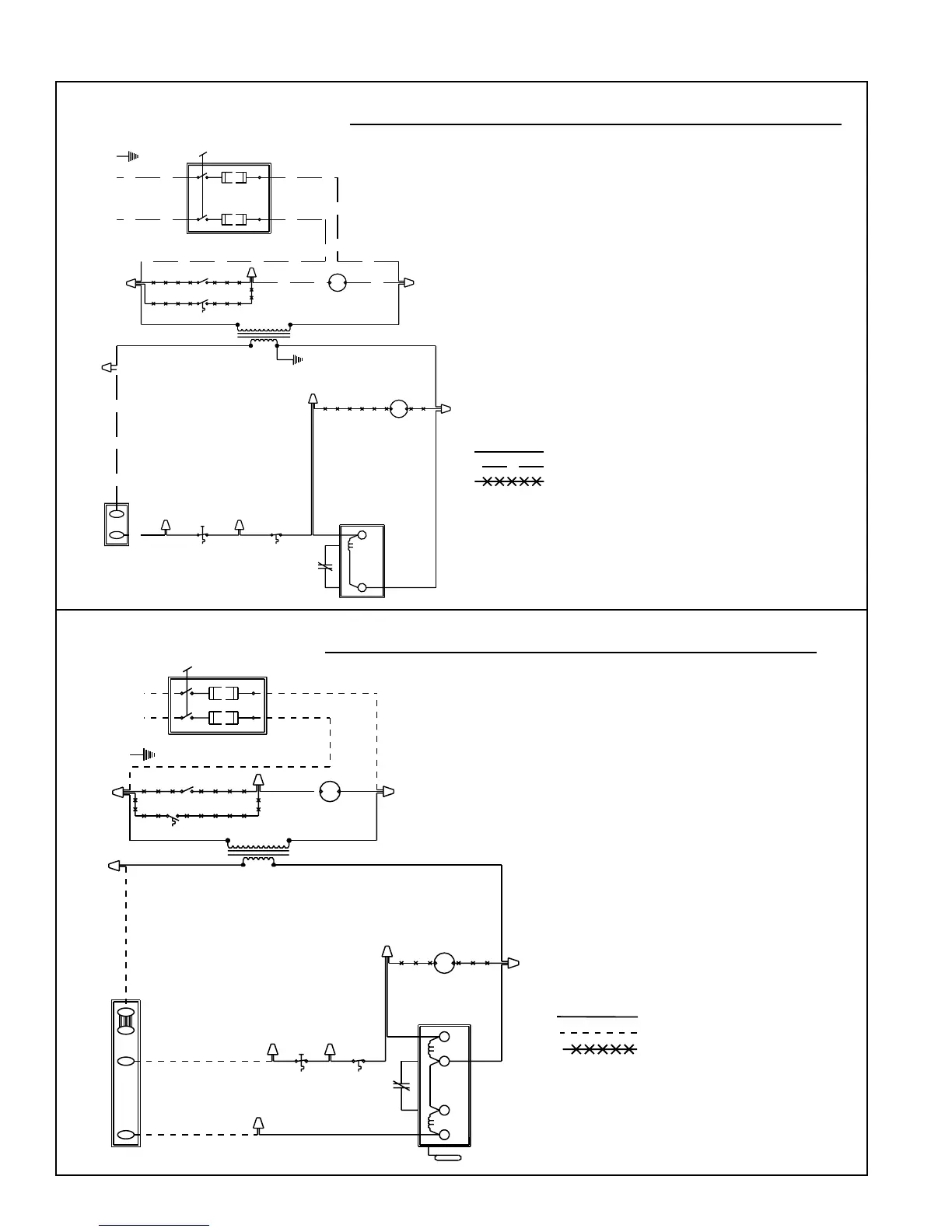

FIGURE 30 - For Reference Only, W. D. 113235 for Model X with Standard Match-Lit Pilot and
Standard Single-Stage Gas Valve - APPLIES ONLY TO UNITS MANUFACTURED PRIOR TO 10/03.
FIGURE 31 - For Reference Only, W.D. 115936 for Model X with Standard Match-Lit Pilot and
Optional Two-Stage Gas Valve - APPLIES ONLY TO UNITS MANUFACTURED PRIOR TO 10/03.
Wiring Diagrams for Match-Lit Pilot Discontinued in 2003
APPENDIX (cont'd)
