RGBlink M1 Quick Start

9
/25

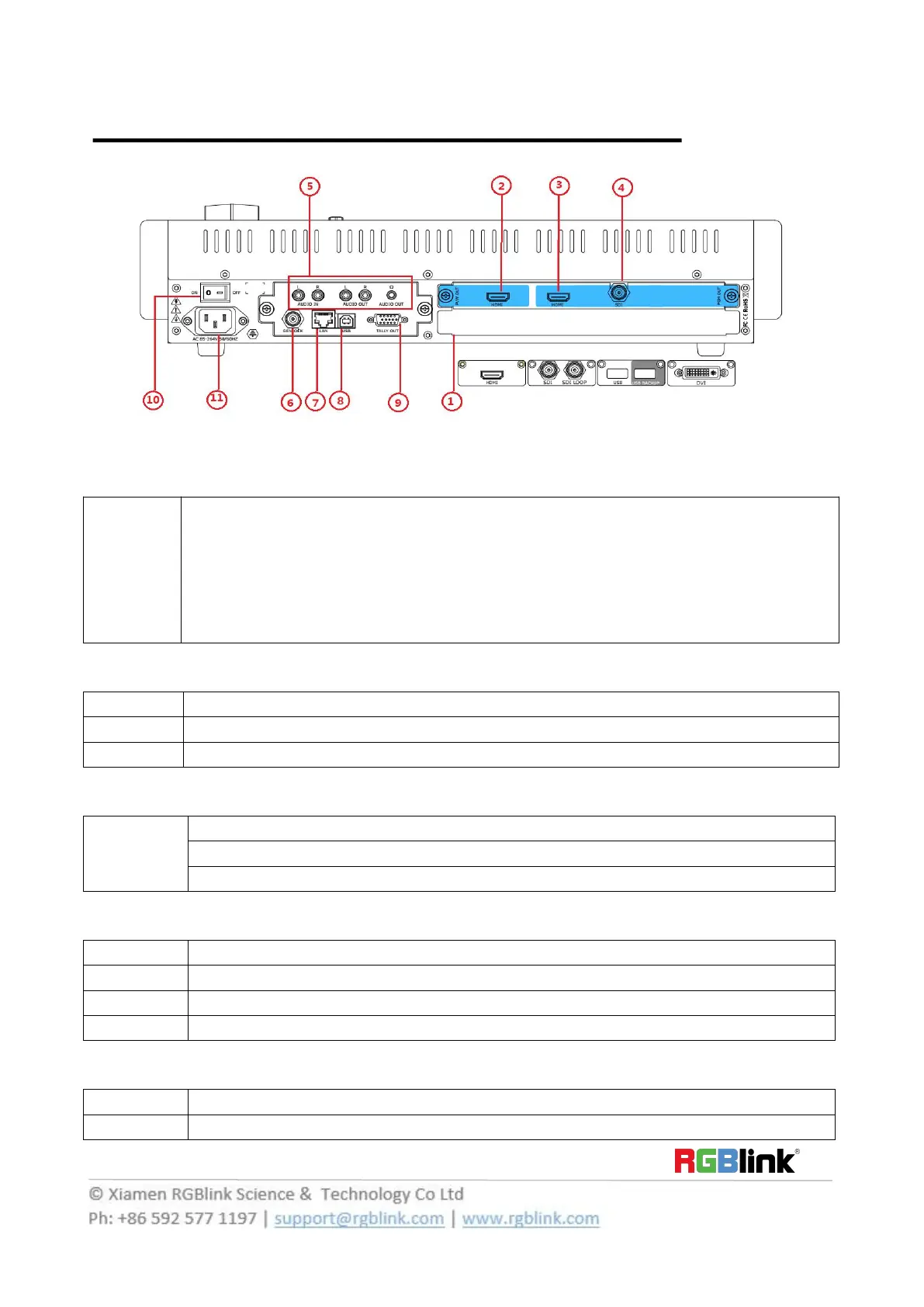

Rear Panel
Input Interface
1
Optional Input Module
4 input card slots, supports input signals including DVI, HDMI, USB, SDI.
Each DVI module supports 1 DVI-I input and compatible CVBS, VGA,YPbPr.
Each HDMI module supports 1 HDMI-A input
Each USB module supports 1 USB-B input and 1 USB backup.
Each SDI module supports 1 SDI input and 1 SDI loop out.
Output Interface
2
HDMI PVW Output
3
HDMI PGM Output
4
SDI PGM Output (Optional, not standard)
Audio Area
5
Audio In
Audio Out
Audio Out (Earphone)
Control Interface
6
Genlock input BNC port
7
LAN port RJ-45
8
USB port USB-A
9
TALLY Light
Power Connection
10
Power Switch
11
AC 85-264V Max 65W, IEC-3
