RGBlink mini pro Quick Start

mini-pro Quick Start
21

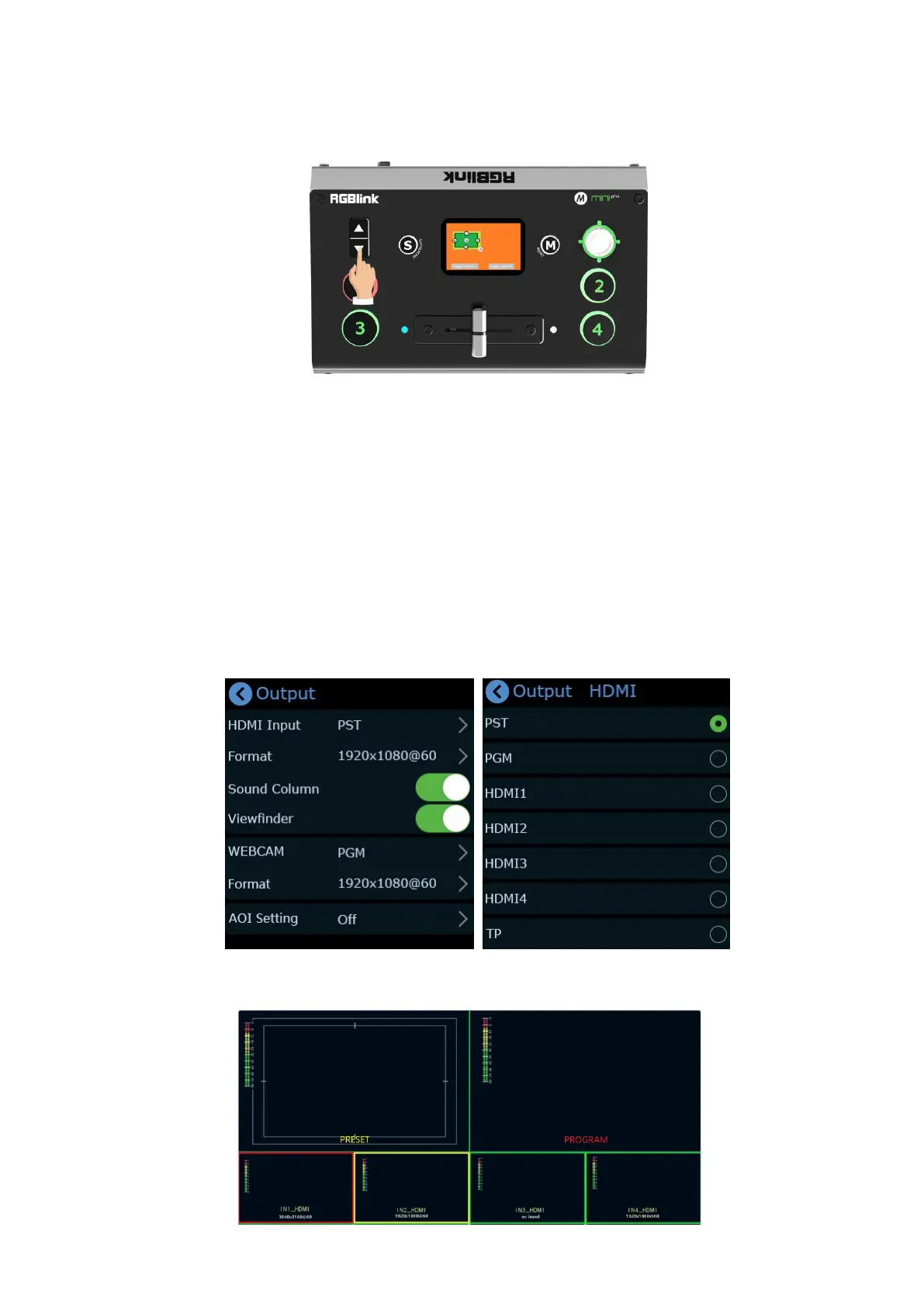

sub screen size by pushing button Up/Down and position by joystick. All the setting is saved to in
real time to make sure it can be used next time the device is turned on.
(5) If you want the modified preset to be loaded from the View, you need to re-save it to the
current View or a new View. Please repeat the above save operation.
Output Setting
mini-pro offers output through HDMI and USB.
HDMI Output
HDMI output defaults multi-screen preview,which can be switched to PGM or the 4 input
content in field application.
Push button【M】to return to main menu and find【Output】to set parameters for the HDMI
output.
Push button【M】again when the touch screen is in main menu interface and touch screen will
enter 4-screen input source preview.

RGBlink mini pro Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Input	HDMI
Audio Inputs	Embedded HDMI
Audio Outputs	Embedded HDMI
Control	Ethernet
Streaming	via USB
Power Supply	12V DC
Output	HDMI, USB-C
Audio	Embedded HDMI audio, External 3.5mm stereo audio
