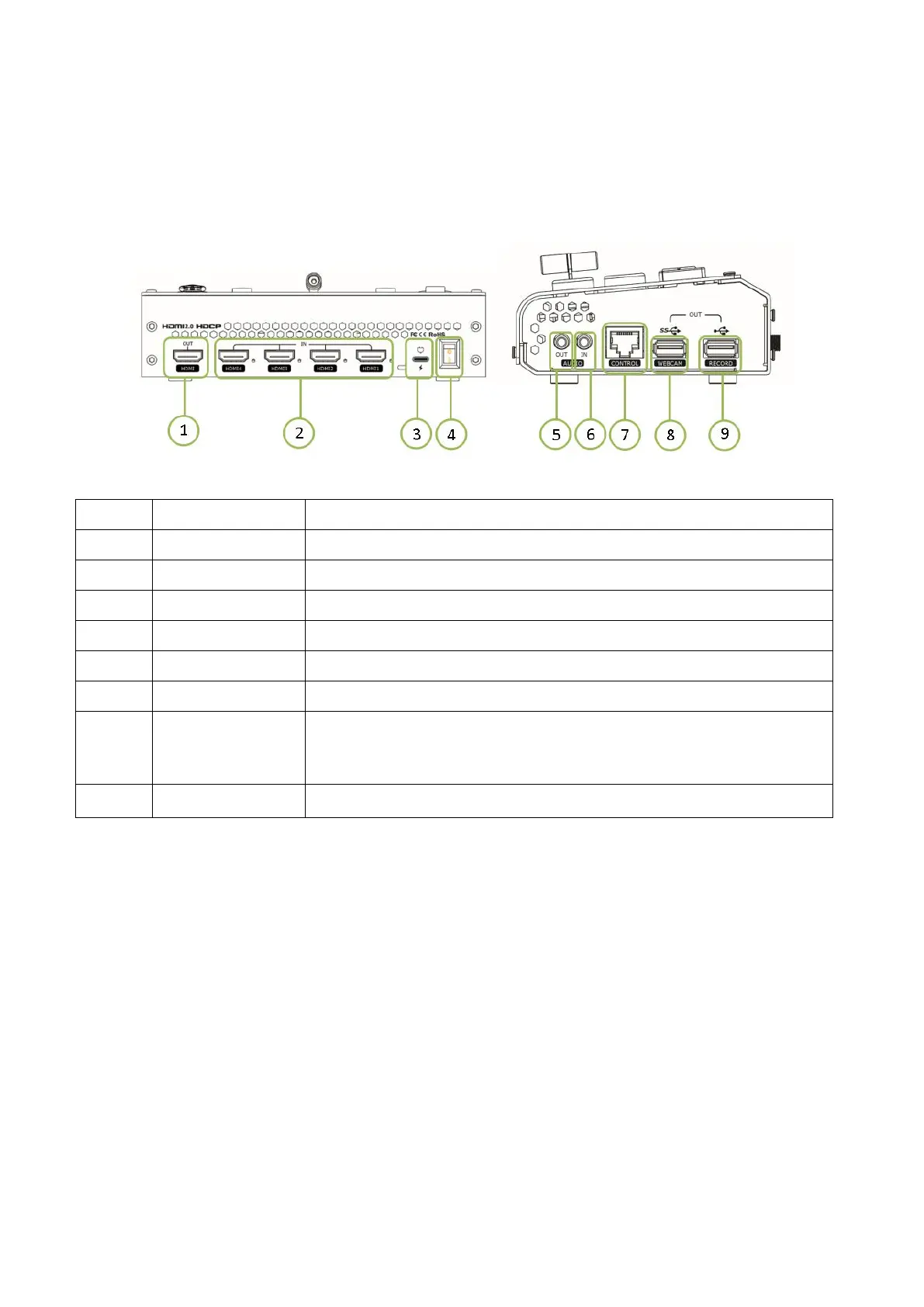

Interface Panel
1
HDMI OUT
1 HDMI Output port, connect to display to show Preview (6 pictures) or PGM.
2
HDMI IN
4 HDMI Inputs, connect to input source from HD camera or PC
3
Type C
1 Type C Jack for power input, connect to PD power adapter
4
Power
Switch on to power on mini-pro
5
AUDIO OUT
AUDIO OUT, analog audio output port, connect to loudspeaker
6
AUDIO IN
AUDIO IN, analog audio input port, connect to microphone with power
7
CONTROL
Communication port to link dedicated software for control
8
WEBCAM
USB output, capture signal via third party streaming software and push to
live broadcasting websites, support access to smart phones for mobile
pushing stream
9
RECORD
Connect to SSD to record audio and video from PGM
