RGBlink mini pro Quick Start

mini-pro Quick Start
23

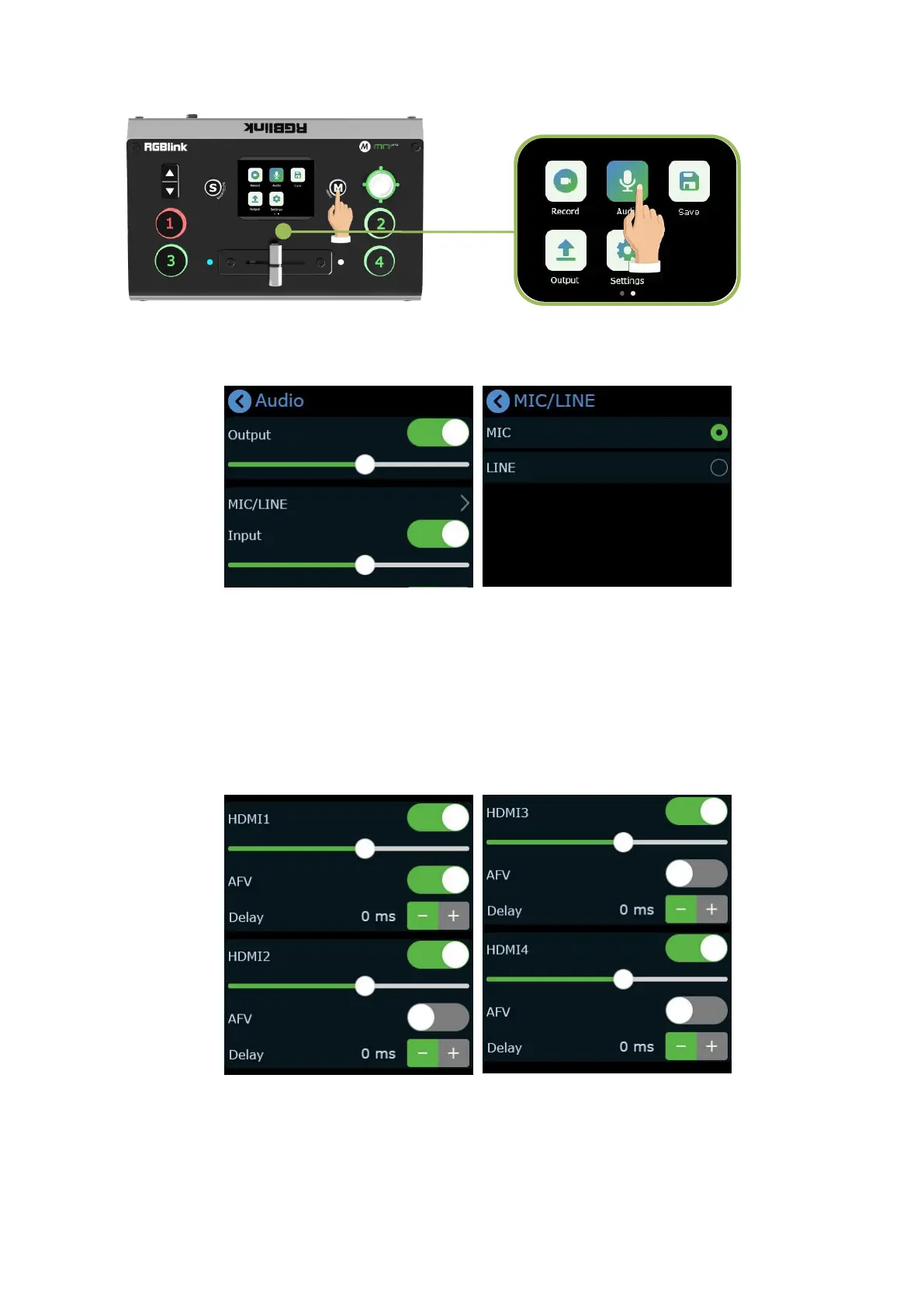

The audio input can be selected as MIC passive microphone input, or LINE input audio console
or active microphone signal input according to needs.
The four HDMI input ports all support embedded audio. Turn on the audio to always add the
audio to PGM.
Turn on AFV, the audio follows the video switch to perform a soft gradual transition when video
is switched.
If the sound and the video are not synchronous, increase or reduce the Delay value under AFV .
Generally speaking, the sound of the MIC is about 100ms faster than the HDMI picture, so the delay
of the MIC can be adjusted between 80-115ms.
When the touch screen is in the main interface or preview interface (4-screen of the 4 inputs)
or Shortcut interface, the PGM audio volume can be adjusted by the Up/Down keys.

RGBlink mini pro Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Input	HDMI
Audio Inputs	Embedded HDMI
Audio Outputs	Embedded HDMI
Control	Ethernet
Streaming	via USB
Power Supply	12V DC
Output	HDMI, USB-C
Audio	Embedded HDMI audio, External 3.5mm stereo audio
