mini-pro Quick Start

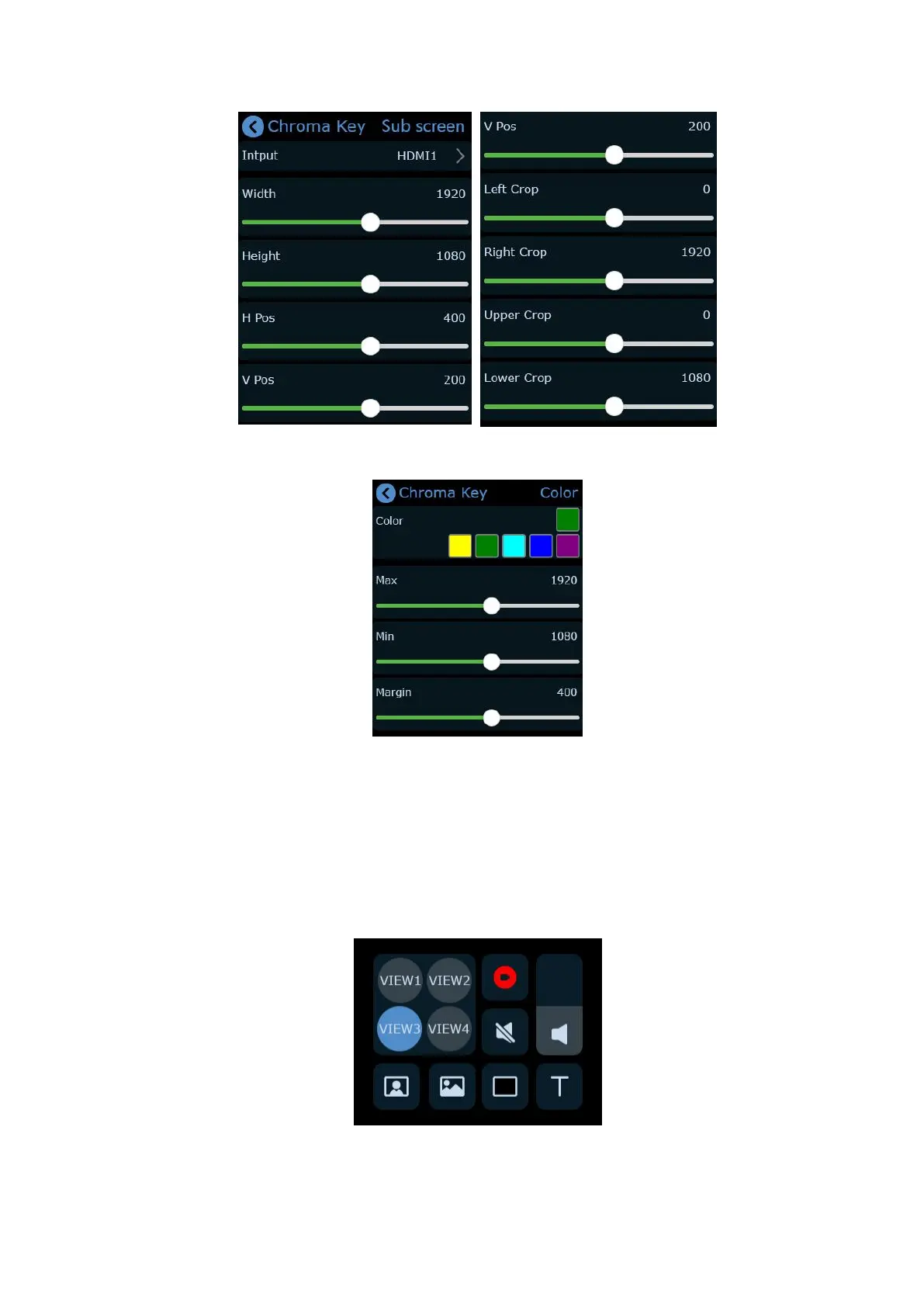

(4) Select the background color which is default in green to be removed and make adjustments.
Similar to PIP, the size, position and cropping of the main/sub-screen can be set.
(5) After the Chroma Key is set, the parameters can be saved directly on the device. Next time
when the the device is on no matter on the dominant software XPOSE mini or the touch screen
itself, users can directly load the preset. And the layer selection stays at main screen, that is, directly
press the signal key, the main screen is switched.
(6) When you need to switch, directly press the【S】key to enter the Shortcut menu interface,
find the【Chroma Key】and tap the icon to open it, and the icon will turn from gray to green after it
is on.
(7) After loading the Chroma Key preset, you can use the joystick to switch the selection of the
main/sub-screen, push the signal source to switch between different signals, adjust the size of the
To Next Page
