ADVANCED SETTINGS
All adjustments for airflow are made at the thermostat at this point. Items that can
be changed are Airflow trim adjustment Dehumidification Setpoint and mode of
operation. The thermostat also has a wide range of fault and history information.
The following tables show all of the available options by unit type. To go down into
a menu press Install Config to move back up press the Menu button. See
Installation Instructions.
18.2 REPLACEMENT OF COMFORT CONTROL
2
SYSTEM™ CONTROL
18.2 BOARD
Each control board in the Comfort Control
2
System™ needs information specific to
the unit the control is installed in. This information is called shared data because it
is distributed (shared) on the HVAC network. The shared data for a unit contains
information that allows the unit to operate correctly.
When a control board requires replacement, it is important that the replacement
board gets the shared data from the old control. The primary way the replacement
control gets this information is by the memory card that should be installed on the
old control. Remove the memory card from the old control, but leave it attached to
the unit by the plastic tether, replace the control and reinstall the memory card on
the new control. If for some reason the memory card has been damaged or is miss-
ing, the shared data from the network (air handler) will be used by the control. The
network shared data is considered a back up for a lost or missing memory card.
Never remove the memory card from the unit or cut the tether of the memory card
as it is the most effective way to transfer the shared data. If the memory card is
damaged or missing a new memory card can be ordered from Pro Stock. The unit
will operate without the memory card, but a D4 error will be displayed on the seven
segment displays.
The memory card from a different unit should never be used.

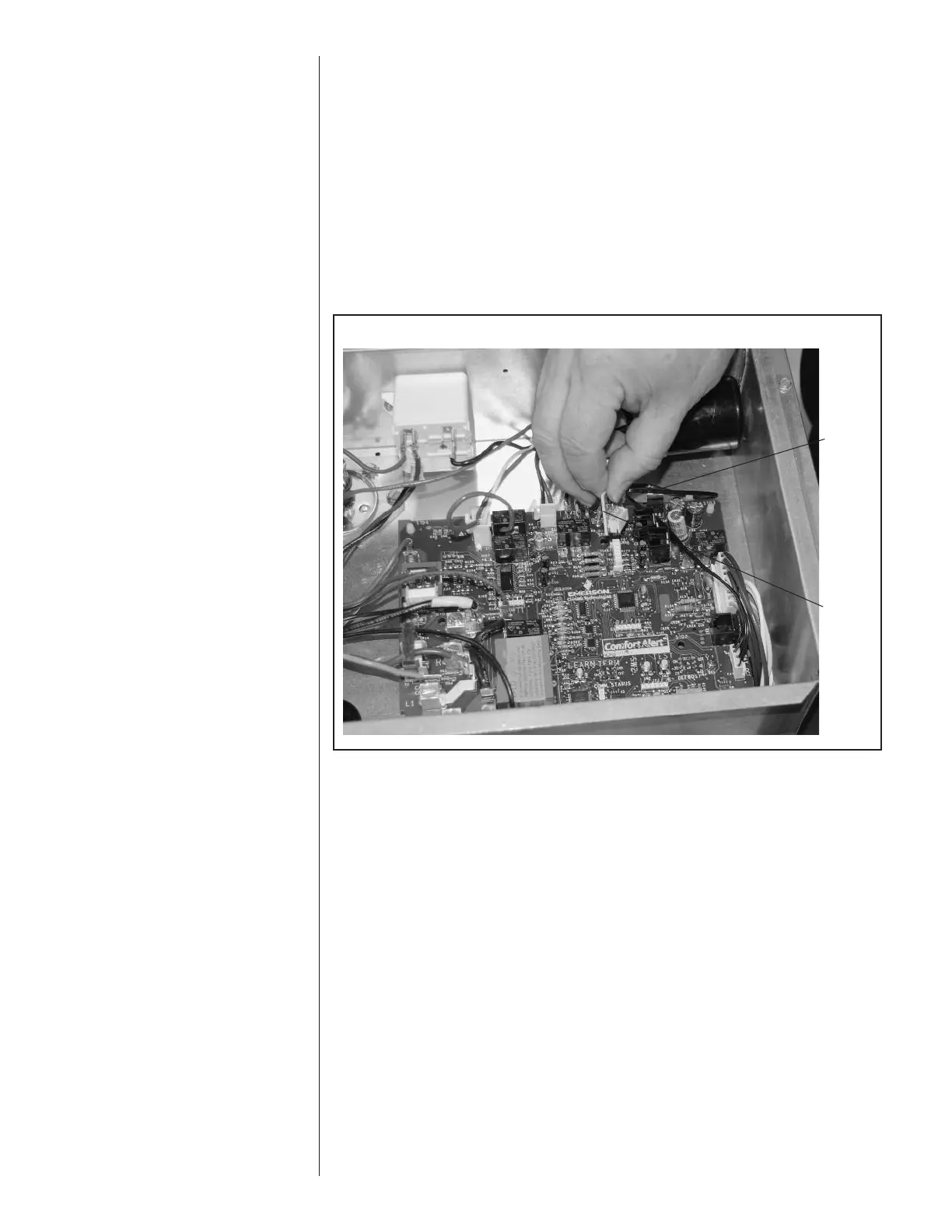

FIGURE 10
TETHER
MEMORY
CARD
40
To Next Page
