MAINTENANCE
EC72 03/08 Maintenance Section 5-12
© 2008 Alamo Group Inc.
MAINTENANCE
DISASSEMBLY OUTPUT SHAFT
1. Install slotted nut (Ref #15, Figure Mnt-R-0211) onto shaft and then tap shaft end on a solid surface to
remove lower bearing and spacer.
2. Remove retaining ring (Ref #28) and repeat above procedure to remove upper bearing.
ASSEMBLY
1. Assembly of output shaft is accomplished in exact reverse order. Install bearing onto shaft and press
against gear. Install retaining ring (Ref. #28 Figure Mnt-R-0211).
2. Install spacer and lower bearing on shaft.

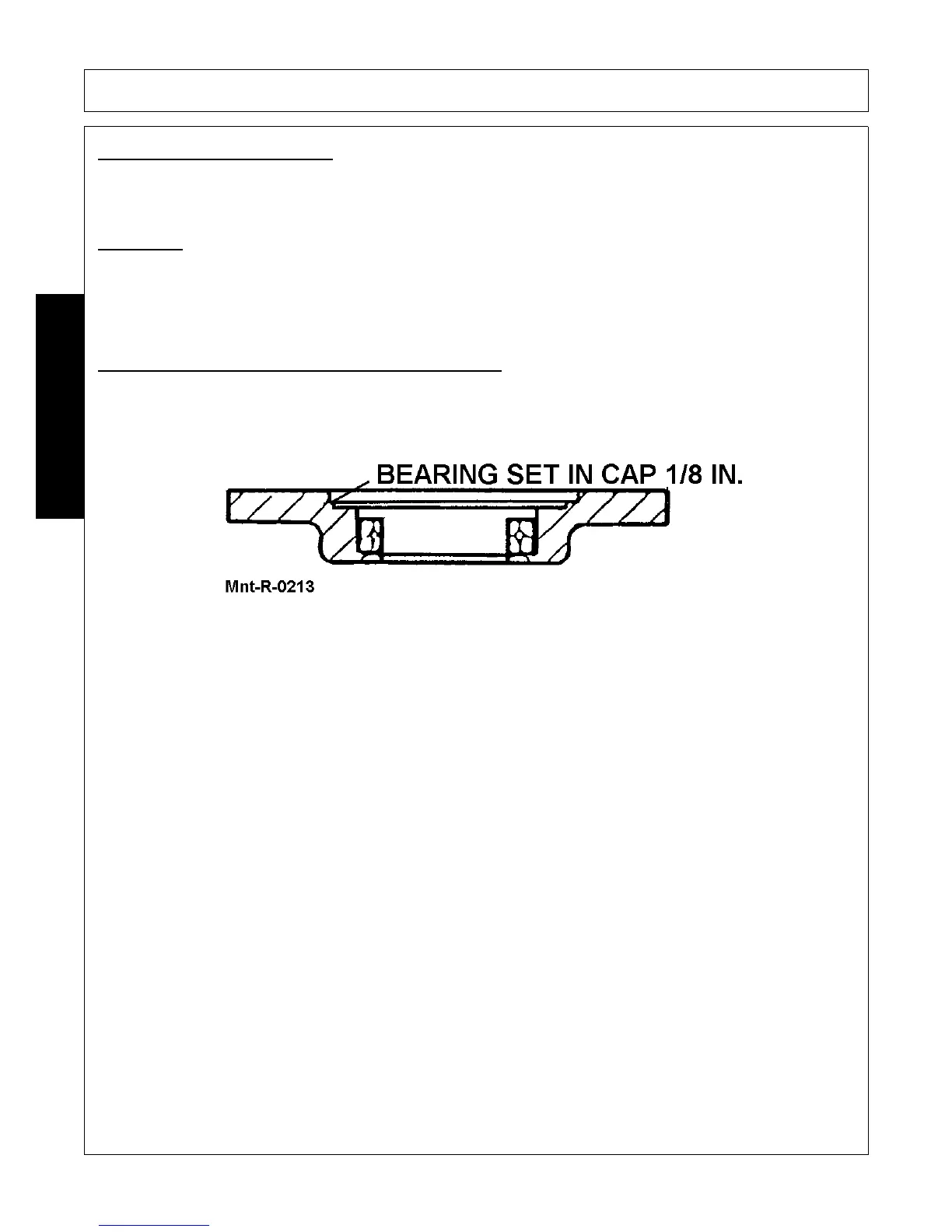

LOWER BEARING RETAINER CAP (Figure Mnt-R-0213)
1. Remove old seal from cap and press in new seal. (See SEAL INSTALLATION RECOMMENDATIONS).
To Next Page
