ASSEMBLY
EC72 03/08 Assembly Section 3-4
© 2008 Alamo Group Inc.
ASSEMBLY

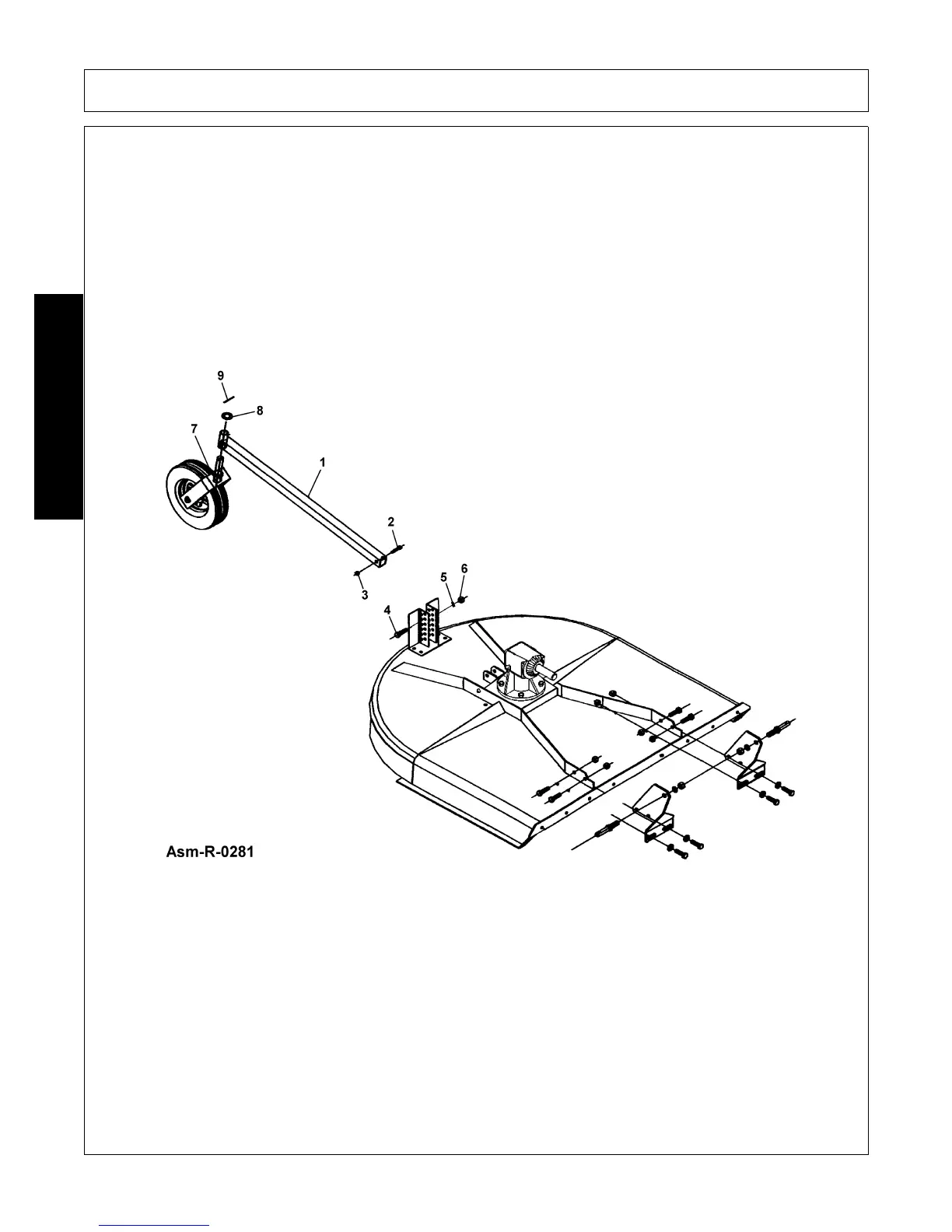

TAILWHEEL INSTALLATION
1. Align Tail Wheel Beam Weldment (1) between pivot brackets located behind gearbox mount on the
Mainframe Weldment. Note: Long side of caster fork pivot tube is positioned up. Attach the Tail Wheel
Beam Weldment (1) to the Mainframe Weldment with one Bolt (2), and Nut (3). Slide Tail Wheel Beam
Weldment (1) into Gauge Wheel Mount and retain with two Bolts, (4) Flatwasher (5), and Nuts (6).
2. Insert the Tail Wheel Assembly into the Tail Wheel Beam (1) and retain with Flatwasher (8), and Cotter Pin
(8).
3. Tighten all Bolts to the proper torque.
