RIB K800 Plus - System Layout; Technical Features

27

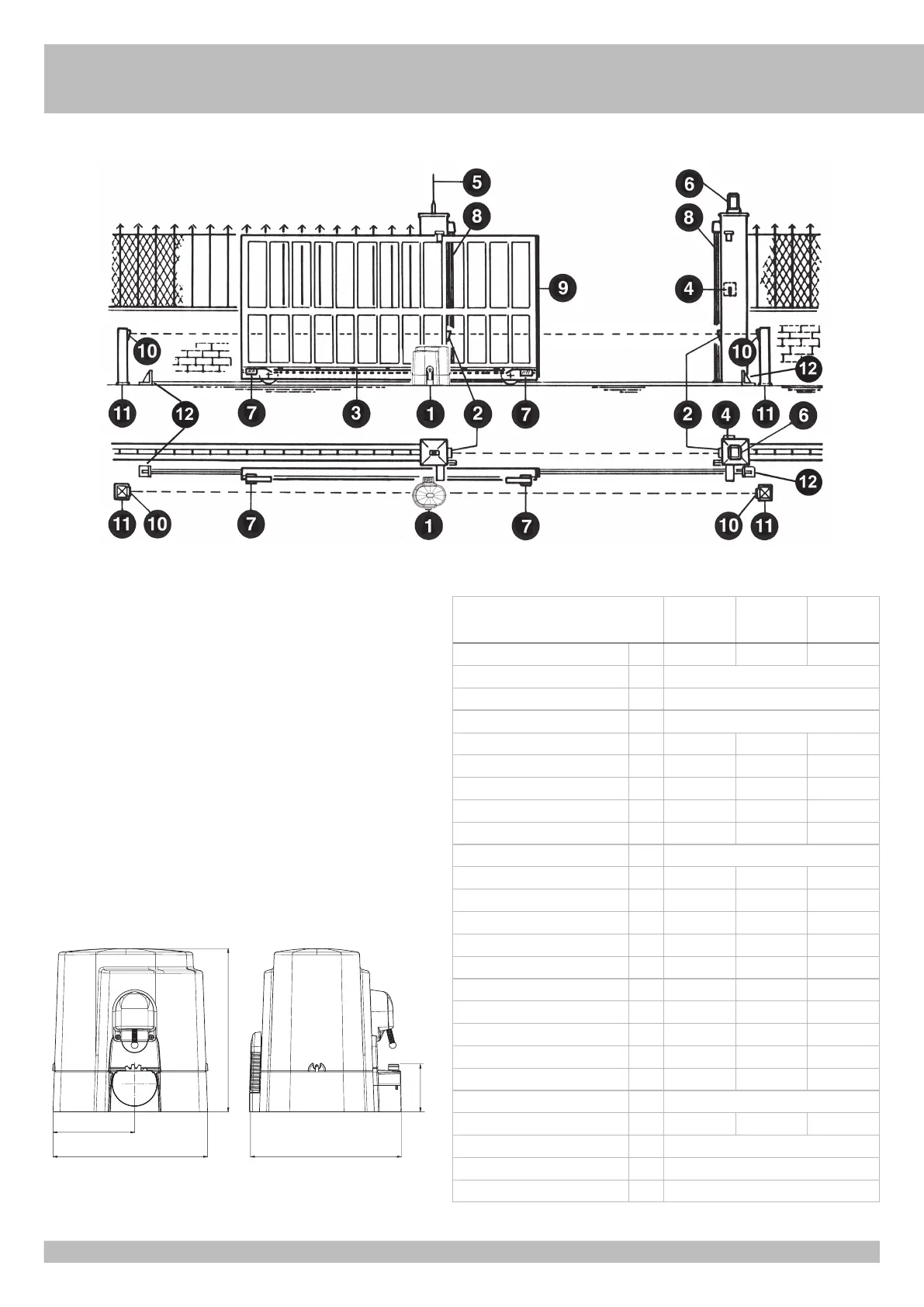

1 - K operating device
2 - External photocells
3 - Rack of Module 4
4 - Key selector
5 - Radio antenna
6 - Blinker
7 - Limit switch plate (cams)
8 - Mechanical strip
9 - Pneumatic strip or Fotocosta
10 - Internal Photocells
11 - Photocell columns
12 - Mechanical stops
1
93
160
303
296
320
Measurements in mm
SYSTEM LAY-OUT
G
B
TECHNICAL
DATA
K800
PLUS
K1400
PLUS
K2200
PLUS
Max. leaf weight kg 800 1400 2200
Operating speed m/s. 0,155/0,18
Rack 4
EEC Power supply 230V~ 50/60Hz
Thrust force to constant turns N 600 790 1150
Max. torque Nm 20,4 27 39
Motor capacity W 287/262 257/314 247/311
Power absorbed A 1,38/1,19 1,18/1,44 1,1/1,62
Capacitor µF 12,5 12,5 16
Power supply 120V~ 60Hz
Thrust force to constant turns N 514 880 1175
Max. torque Nm 17,5 30 40
Motor capacity W 242 322 295
Power absorbed A 2,15 2,9 2,85
Capacitor µF 40 60 60
Normative cycles 230V n° 7 - 38s/2s 8 - 64s/2s
12/7 - 64s/2s
Normative cycles 120V n° 10 - 38s/2s 7 - 64s/2s 12 - 64s/2s
Daily operations suggested n° 300 400 500
Service 50% 70% 70%
Guaranteed consecutive cycles n° 8/6m 15/10m 15/10m
Grease COMLUBE LHITGREASE EP/GR.2
Weight of electroreducer kg 10,5 12,3 14
Noise db <70
Working temperature °C -10 ÷ +55°C
Protection IP 44
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of
2.200 kg / 4900 lbs.
The irreversibility of this operating device allows you to avoid using any electric lock for
an effective closing of the gate. The motor is protected by an heat probe, that temporary
interrupts the operating cycle in case of prolonged use.
