Ricoh Aficio MP C2550 User Manual

BBD004S

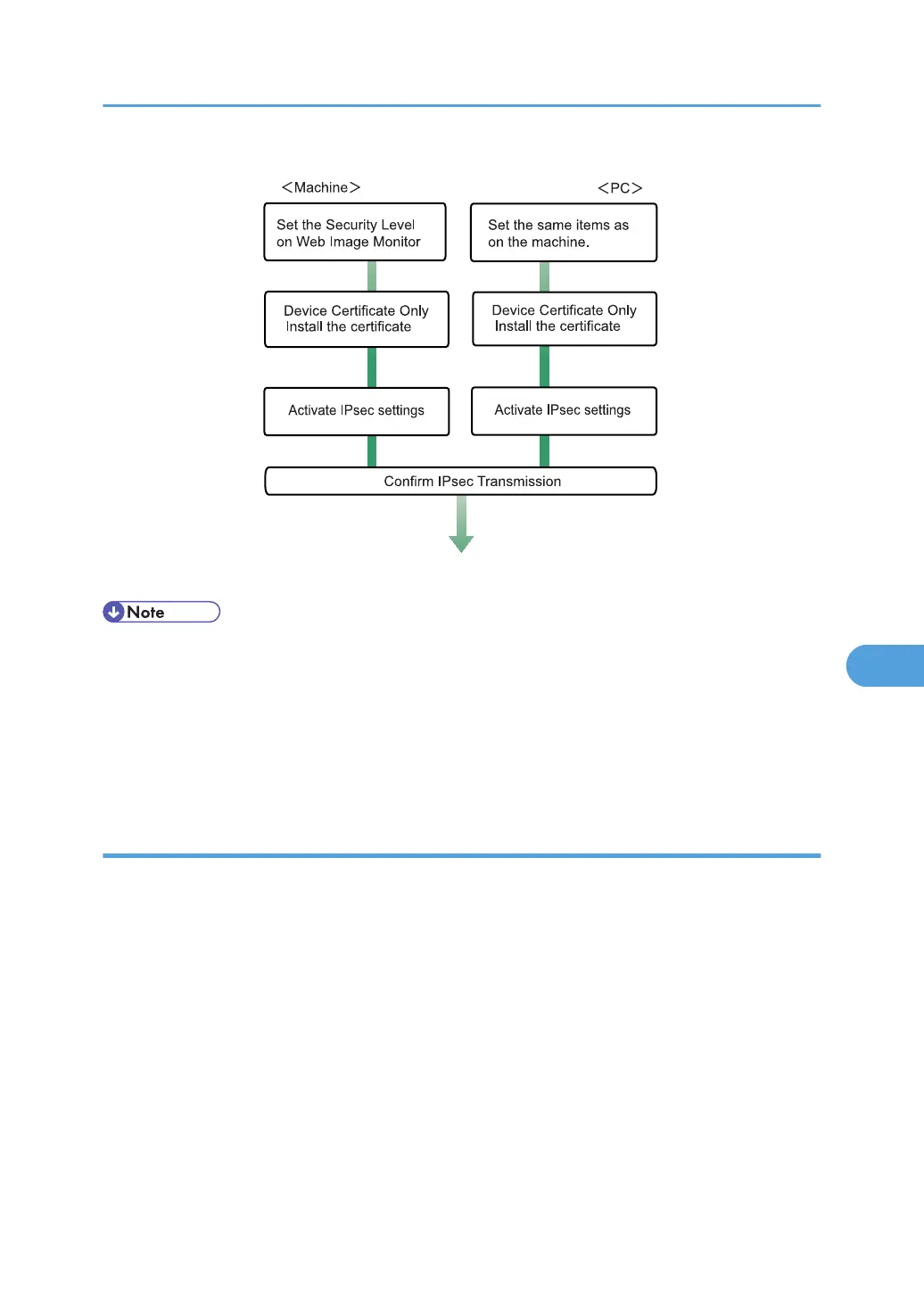

• To use a certificate to authenticate the transmission partner in encryption key auto exchange settings,
a device certificate must be installed.
• After configuring IPsec, you can use "Ping" command to check if the connection is established correctly.
However, you cannot use "Ping" command when ICMP is excluded from IPsec transmission on the
computer side. Also, because the response is slow during initial key exchange, it may take some time
to confirm that transmission has been established.
Specifying Encryption Key Auto Exchange Settings
This can be specified using Web Image Monitor.
1. Open a Web browser.
2. Enter "http://(the machine's IP address or host name)/" in the address bar.
When entering an IPv4 address, do not begin segments with zeros. For example: If the address is
"192.168.001.010", you must enter it as "192.168.1.10" to connect to the machine.
The top page of Web Image Monitor appears.
3. Click [Login].
The network administrator can log on.
Enter the login user name and login password.
4. Click [Configuration], and then click [IPsec] under "Security".
The IPsec settings page appears.
Transmission Using IPsec
193
7

Ricoh Aficio MP C2550 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (Color)	25 ppm
Print Speed (Monochrome)	25 ppm
Print Resolution	600 x 600 dpi
Maximum Print Resolution	2400 x 600 dpi
Duplex Printing	Yes
Copy Speed (Color)	25 cpm
Copy Speed (Monochrome)	25 cpm
Copy Resolution	600 x 600 dpi
Memory (Maximum)	1 GB
Hard Disk Drive (Optional)	80 GB
Interface	USB 2.0, Ethernet 10/100Base-TX
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Scan Resolution	600 dpi
Zoom Range	25% - 400%
Paper Size	A4, A5, B5
Paper Weight	52 - 256 g/m²
PDL	PCL 6, PostScript 3
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac OS
