Ricoh Aficio MP C3002 - Guide to Components of Types 3 and 4

Guide to Components of Types 3 and 4
• Do not obstruct the ventilation holes by placing objects near them or leaning things against them. If
the machine overheats, a fault might occur.

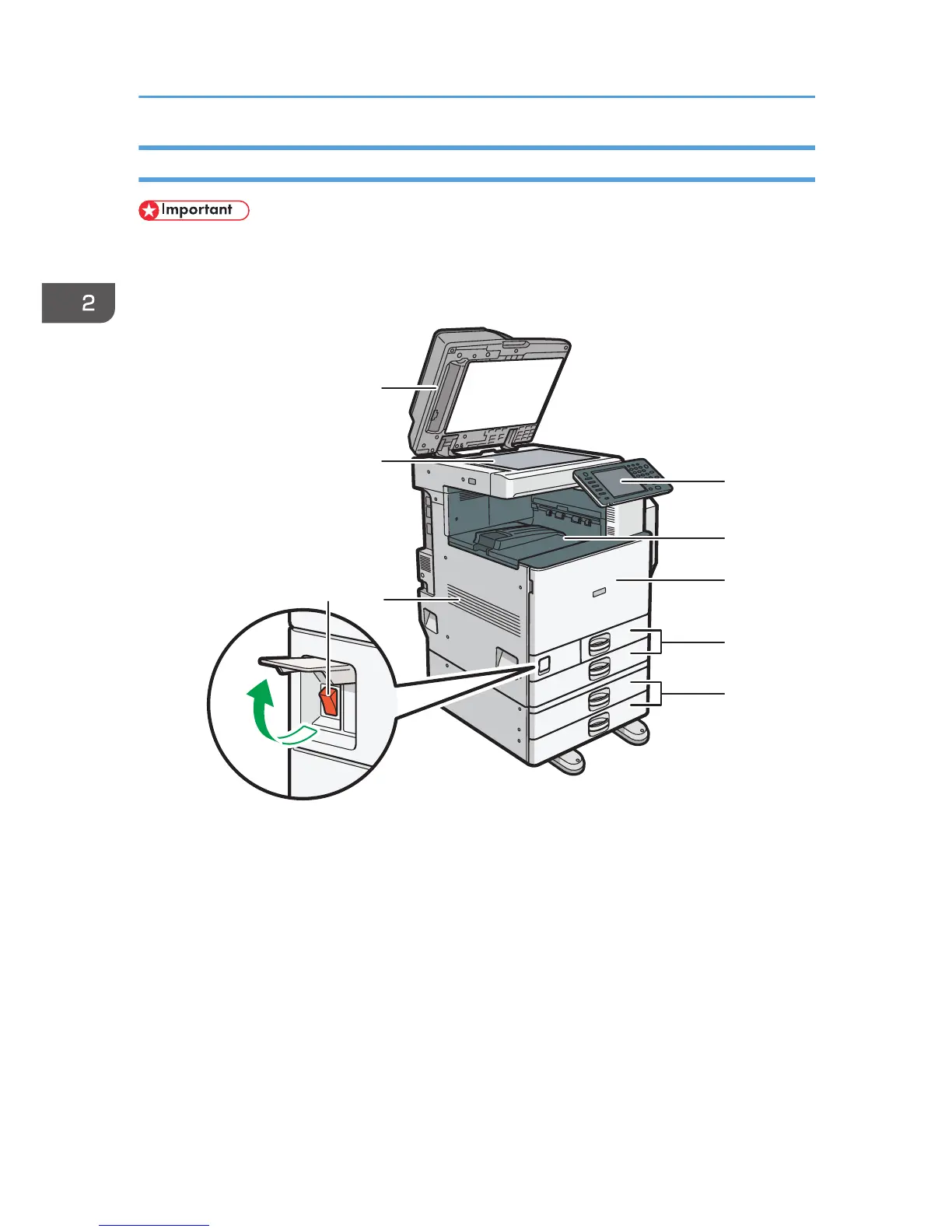

Front and left view
1
2
3
5
6
7
8
9
CJS004
4
1. ARDF or one-pass duplex scanning ADF
(The illustration shows the ARDF.)
Lower the ADF over originals placed on the exposure glass.
If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one.
The ARDF scans both sides of an original one side at a time.
The one-pass duplex scanning ADF scans both sides of an original simultaneously.
2. Exposure glass
Place originals face down here.
3. Ventilation holes
Prevent overheating.
2. Getting Started
30
