Ricoh Aficio MP C3502 User Manual

• [Frequent]: Added to the page that is displayed first.
• [AB], [CD], [EF], [GH], [IJK], [LMN], [OPQ], [RST], [UVW], [XYZ], [1] to [10]: Added to the
list of items in the selected title.
You can select [Frequent] and one more key for each title.
8. Press [Auth. Info], and then press [ Next].
9. Press [Specify Other Auth. Info] on the right side of "Folder Authentication".
When [Do not Specify] is selected, the SMB User Name and SMB Password that you have
specified in "Default User Name / Password (Send)" of File Transfer settings are applied.
10. Press [Change] under "Login User Name".
11. Enter the login user name of the destination computer, and then press [OK].
12. Press [Change] under "Login Password".
13. Enter the password of the destination computer, and then press [OK].
14. Enter the password again to confirm, and then press [OK].
15. Press [Folder].
16. Check that [SMB] is selected.

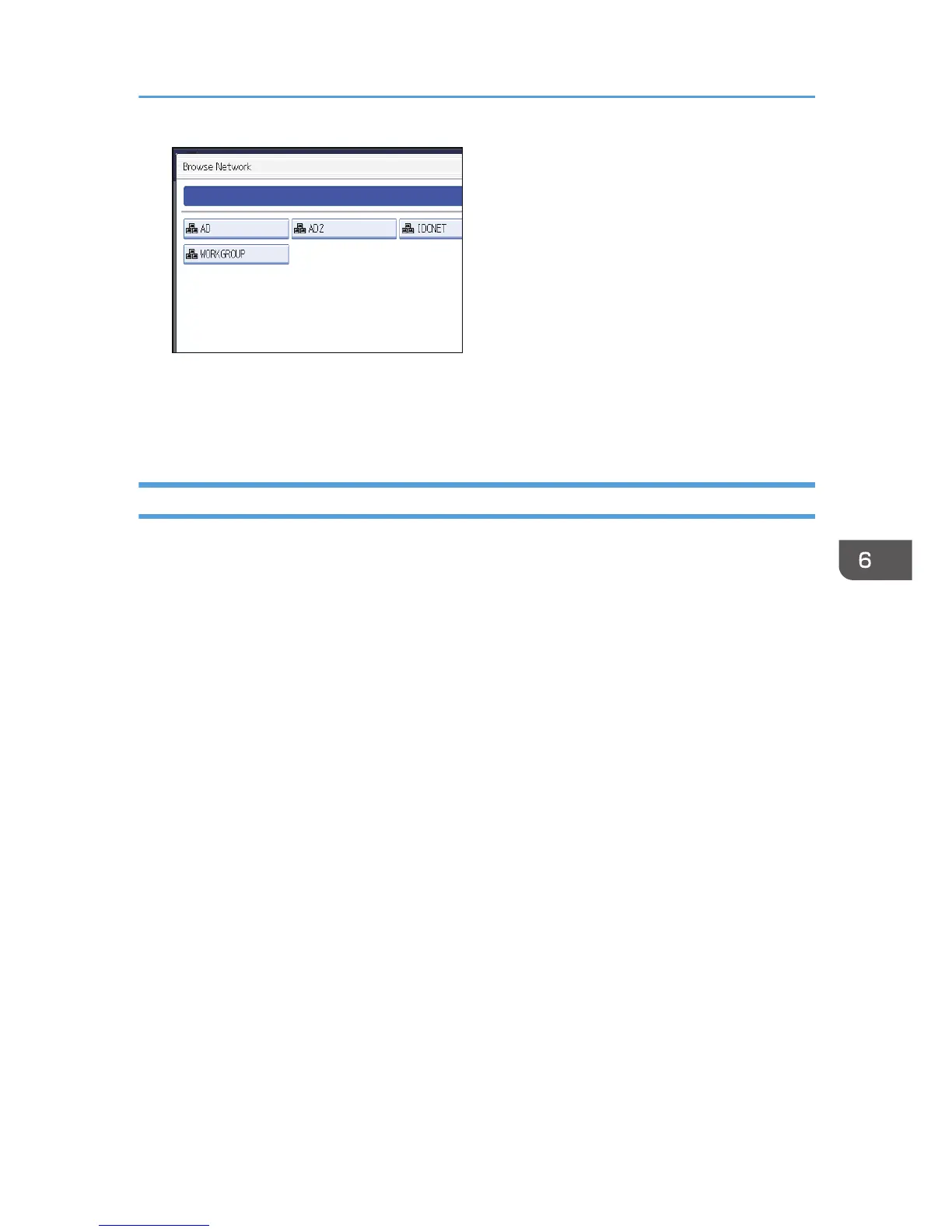

17. Press [Change] or [Browse Network], and then specify the folder.
To specify a folder, you can either enter the path manually or locate the folder by browsing the
network.
18. Press [Connection Test] to check the path is set correctly.
Basic Procedure When Using Scan to Folder
115

Ricoh Aficio MP C3502 Specifications

General

Print Technology	Laser
Print Speed	35 ppm
Max Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Memory (Standard)	1.5 GB
Hard Disk Drive	250 GB
Standard Paper Capacity	1, 200 sheets
Max Paper Capacity	4, 400 sheets
Connectivity	USB 2.0, Ethernet
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac, Linux
Scan Resolution	600 dpi
