Ricoh Aficio SP 5200DN Hardware Guide

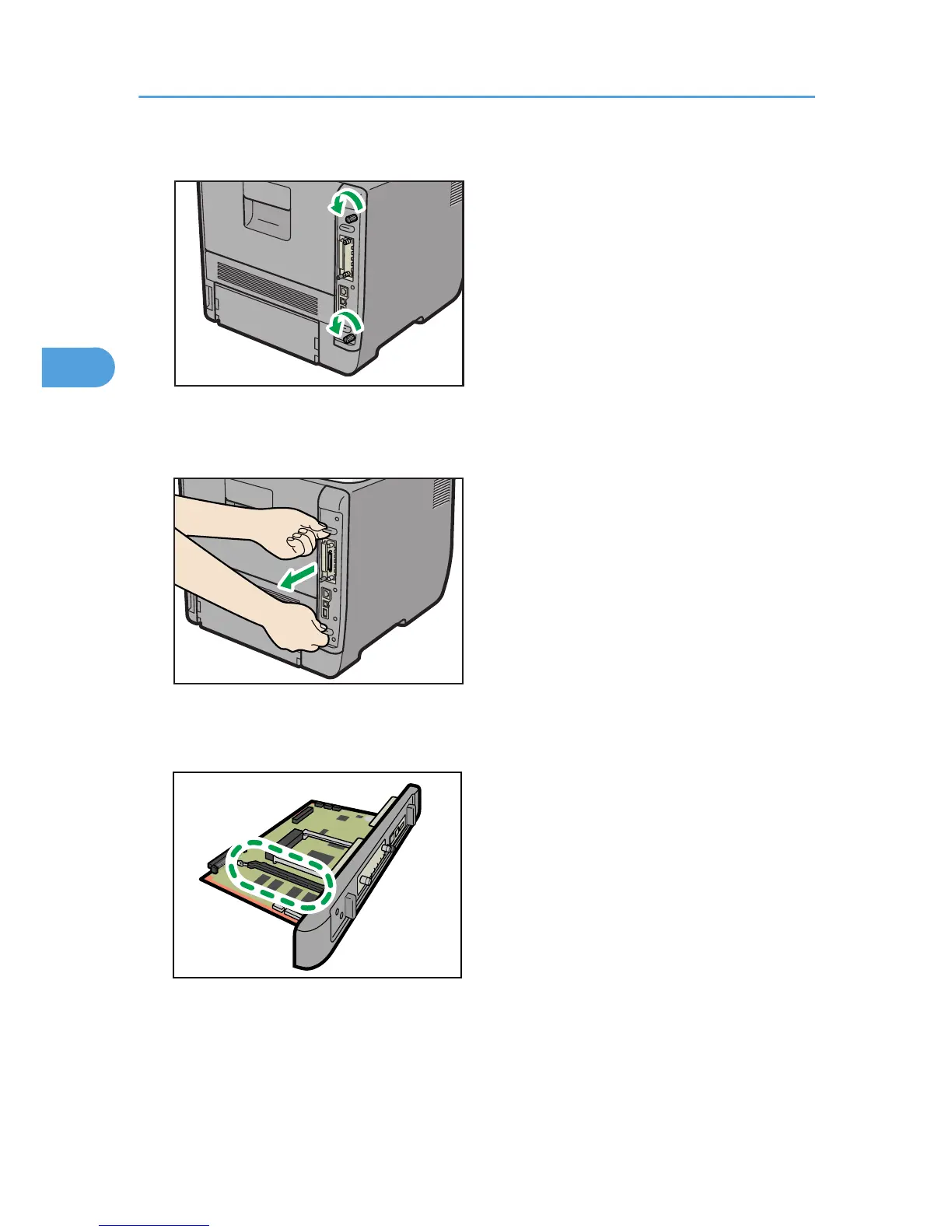

2. Remove the two screws holding the controller board in place.
CEC073
The removed screws are required to fasten the controller board.
3. Gripping the handles, carefully pull out the controller board.
CEC075
4. Place the controller board on a flat surface.
The SDRAM module is installed in the slot shown in the illustration below.
CEC012
3. Installing Options
56
3
