Basic Operation
G849 8 SM
2.2 BASIC OPERATION
2.2.1 PAPER SEPARATION AND FEED
The paper tray holds 500 sheets of paper.
The paper feed unit uses a friction pad system.

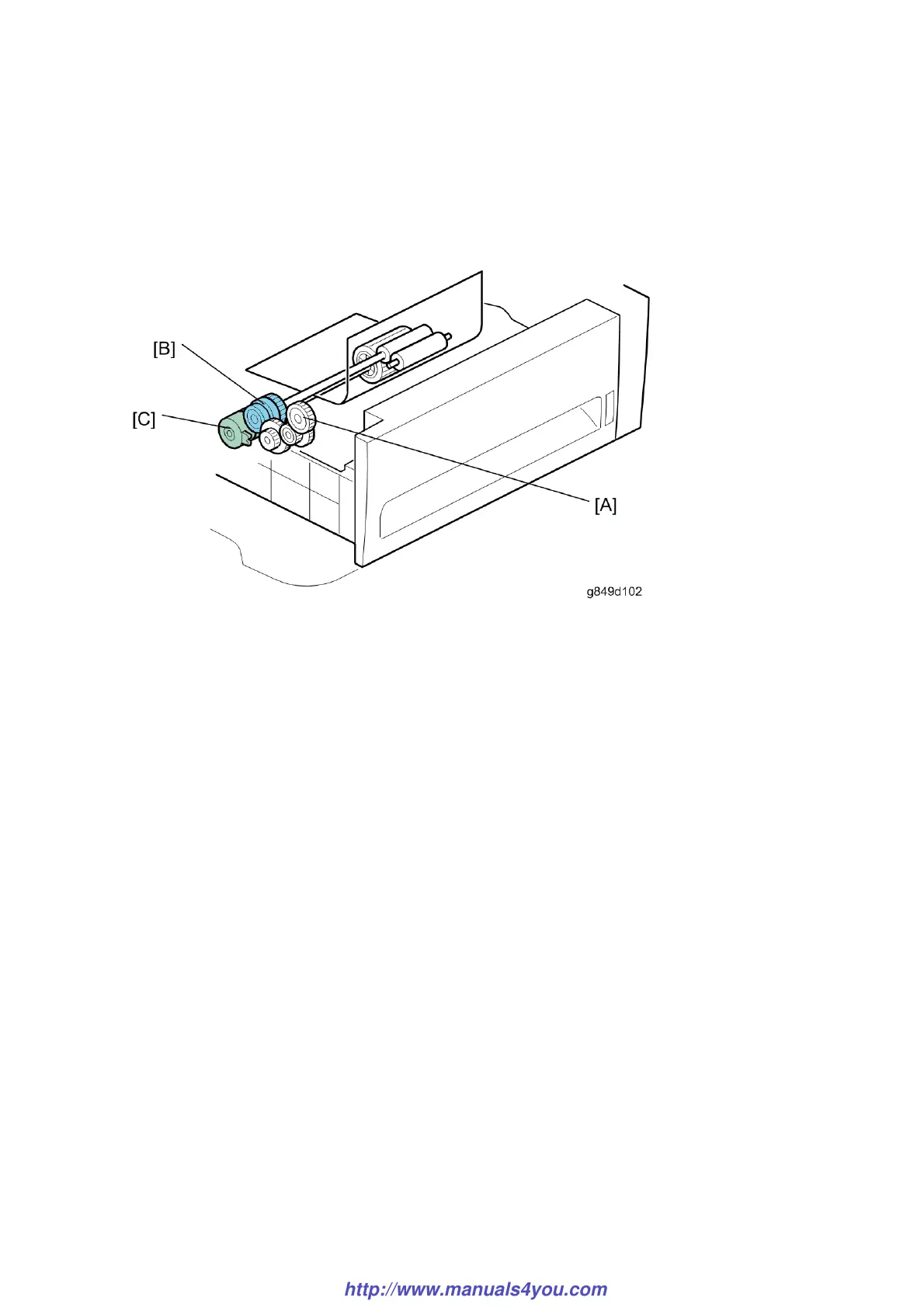

The gear [A] is driven by the transport/fusing motor in the mainframe.
The relay clutch [B] and paper feed clutch [C] control drive from the mainframe. When the
optional tray is selected as the feed tray, the relay clutch and paper feed clutch transmit
drive power to the relay roller and paper feed roller.
http://www.manuals4you.com

Table of Contents

Other manuals for Ricoh Aficio SP C231SF

Preview: User Guide
User Guide416 pages
Preview: Information
Information36 pages
Preview: Specifications
Specifications4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh Aficio SP C231SF and is the answer not in the manual?

Ricoh Aficio SP C231SF Specifications

Aficio SP C231SF

Engine Specifications IconEngine Specifications
print resolution600 x 600 dpi (Speed mode), 1200 x 600 dpi equivalent (Standard Mode), 2400 x 600 dpi equivalent (Fine Mode)
output speed21 pages-per-minute in B&W and Full-Color
first print speed14 seconds or less
warm-up time48 seconds or less
Power IconPower
power requirements120V, 60Hz
maximum power consumption1, 300W
energy saver mode20W
System Memory IconSystem Memory
memory (ram)128 MB RAM standard/maximum
standard interfacesUSB 2.0, 10/100Base-TX Ethernet
optional interfaceIEEE 802.11b/g Wireless
Weight and Dimensions IconWeight and Dimensions
dimensions16.54" x 19.41" x 18.74" (420 x 493 x 476 mm)
weight66.14 lb. (30 kg or less)

Aficio SP C232SF

Engine Specifications IconEngine Specifications
print resolution600 x 600 dpi (Speed mode), 1200 x 600 dpi equivalent (Standard Mode), 2400 x 600 dpi equivalent (Fine Mode)
output speed21 pages-per-minute in B&W and Full-Color
first print speed14 seconds or less
warm-up time48 seconds or less
Power IconPower
power requirements120V, 60Hz
maximum power consumption1, 300W
energy saver mode25W
System Memory IconSystem Memory
memory (ram)256 MB RAM standard/512 MB RAM maximum (shared)
standard interfacesUSB 2.0, 10/100Base-TX Ethernet
optional interfaceIEEE 802.11b/g Wireless
Weight and Dimensions IconWeight and Dimensions
dimensions16.54" x 19.41" x 18.74" (420 x 493 x 476 mm)
weight66.14 lb. (30 kg or less)
