Replacing Consumables and Maintenance Kit
57

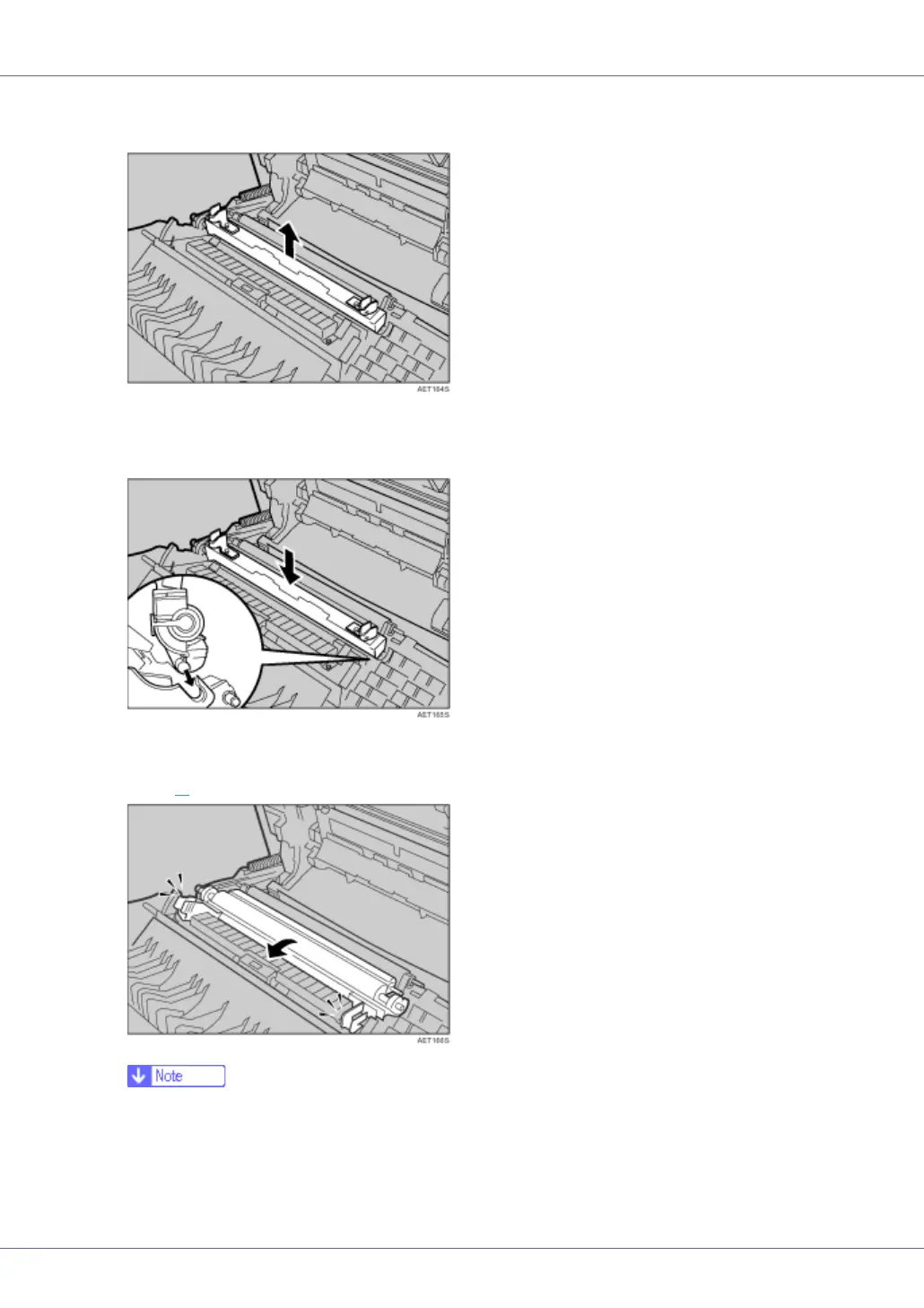

C Pull out the transfer roller.
D Insert the new transfer roller by placing it's underside edge into the
grooves shown in the illustration.
E Secure the transfer roller using the green fastening clips mentioned in
step
B
.
❒ The transfer roller appears insecurely set, but this is intentional.
F Close the front cover (A).
To Next Page
