8

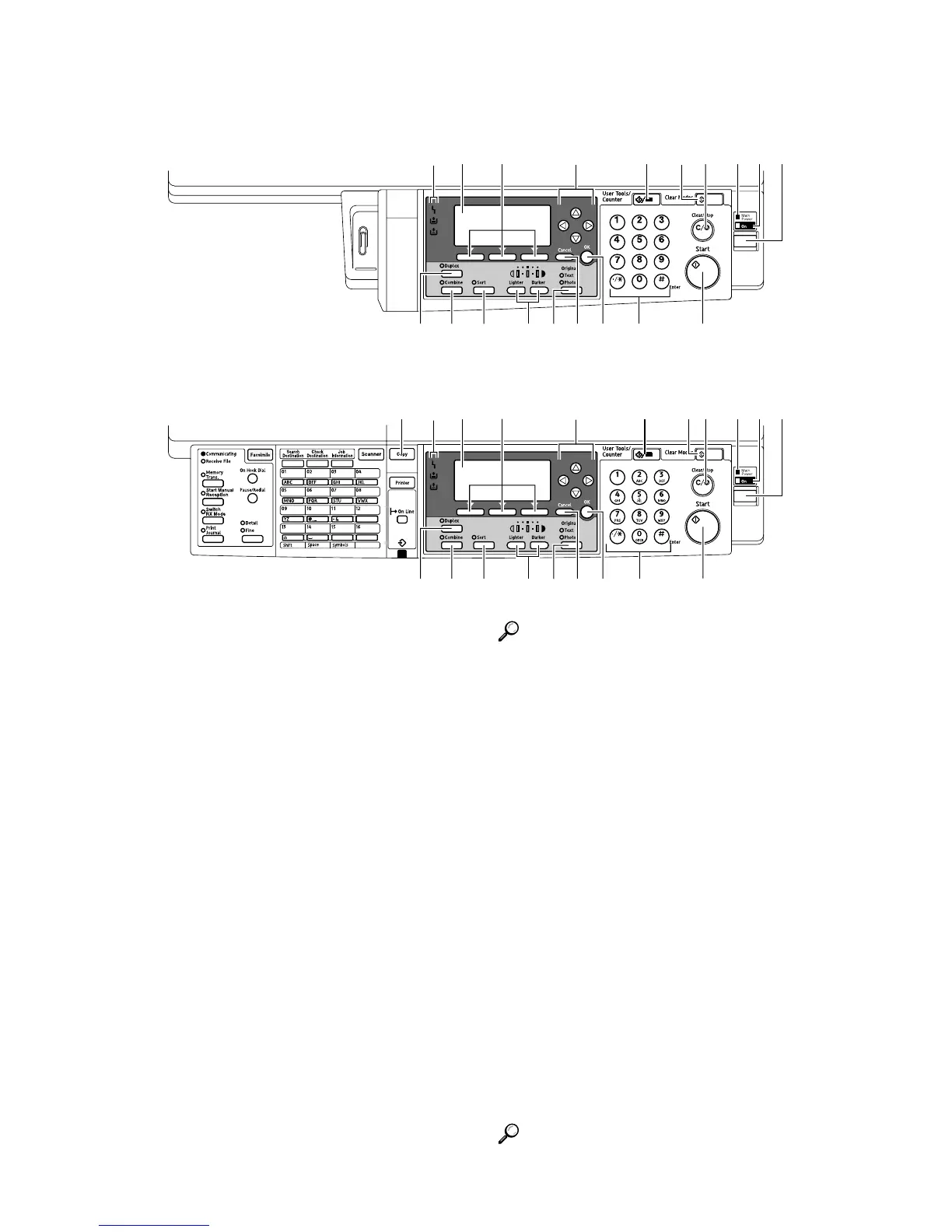

Control Panel
Copier only
Fax, printer and/or scanner installed
1. {Copy} key
Press to activate the copier function.
2. Indicators
Display errors and machine status.
• h: Error indicator
See “Control Panel”, General Settings
Guide.
• D: Add Toner indicator
See p.40 “D Adding Toner”.
• B: Load Paper indicator
See p.39 “B Loading Paper”.
3. Display
Displays operation status and messages.
4. Selection keys
Correspond to items on the display. Press
to select the corresponding item.
5. Scroll keys
Press to select an item.
{U}: scroll upward
{T}: scroll downward
{V}: scroll right
{W}: scroll left
Reference
See p.10 “Reading the Display and
Using Keys”.
6. {User Tools/Counter} key
•User Tools
Press to change default and condi-
tions according to requirement. See
p.43 “Accessing User Tools (Copier
Features)”.
•Counter
Press to check or print the counter val-
ue.
7. {Clear Modes} key
Press to clear the current settings.
8. {Clear/Stop} key
Clear: clears an entered numeric value.
Stop: stops copying.
9. Main power indicator
Lights when the main power switch is
turned on.
Reference
p.11 “Turning On the Power”
ABU108S
2 3 4 5 6 7 8 9 1011
15 1613 14 17 18 19 2012
ABU
S.eps
ABU109S
21 3 4 5 6 7 8 9 1011
15 1613 14 17 18 19 2012
ABU
S.eps
To Next Page
