1-Bin Tray Unit (D574)
D117/D118 2-32 SM

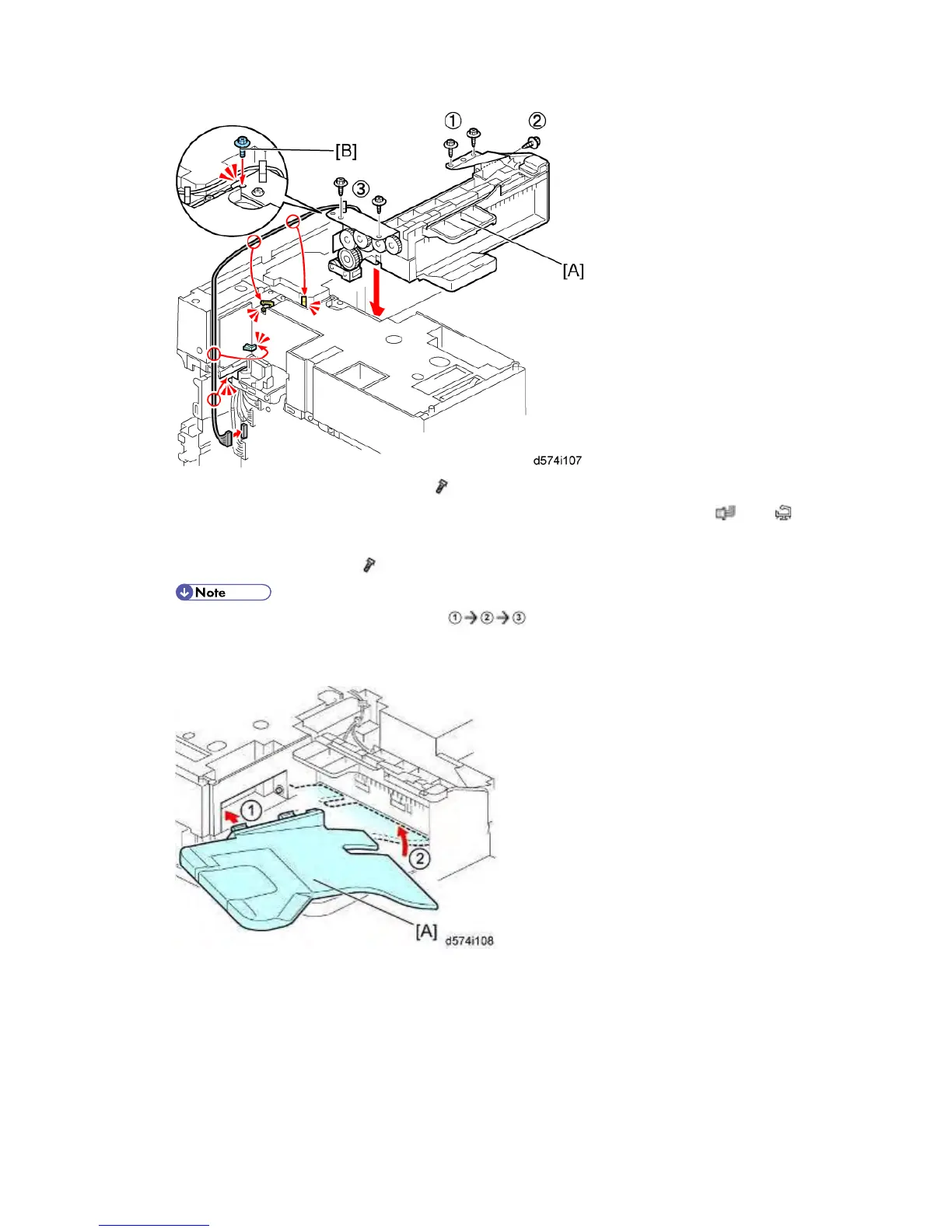

12. Attach the 1-bin tray unit [A] (M3x10:
x 5)
13. Connect the connector of the 1-bin tray unit to CN527 and then fix the harness (
x 1, x
3)
14. Secure the blue screw [B] (
(blue) x 1)
 Install the screws in this order:
 Install the blue screw at the very last.
 Install the screws at the front side while the operation panel is flat.
15. Install the 1-bin tray [A].
