SP Tables
J007/J010/J011 5-24 SM
No. Meaning No. Meaning
2 Maintenance HP Sensor 10 PFU Relay Sensor
3 Ink Collection Tank Sensor 11 Duplexer Cover Sensor
4 Carriage Position Sensor 12 Duplexer Set Sensor
5 Not Used 13 Trailing Edge Sensor
6 Paper End Sensor – Tray 2 14 Registration Sensor 1
7 Paper End Sensor – Tray 1 15 Registration Sensor 2
8 Bypass Tray Set Sensor 16 Right Front Cover Sensor
Input Check: Sensors 2/2

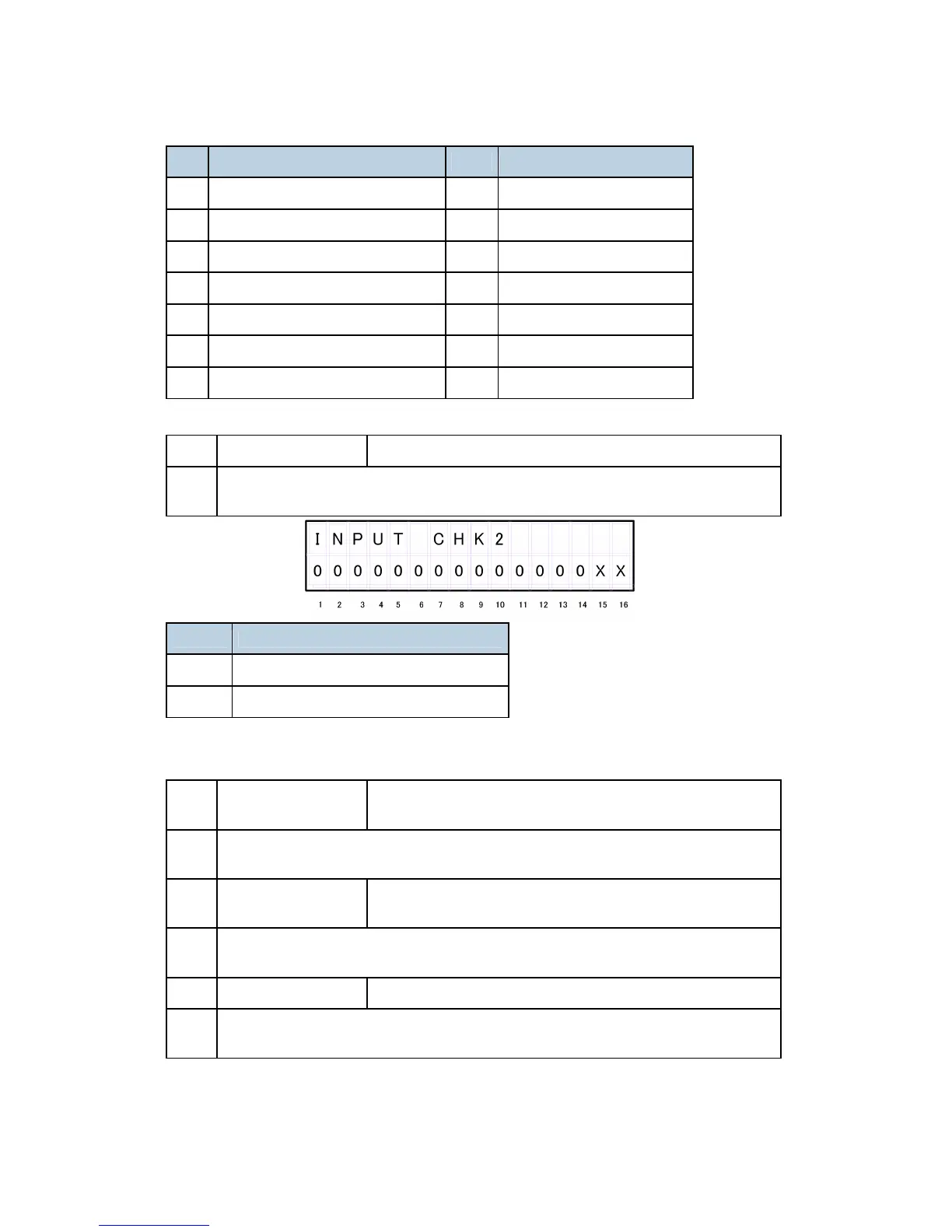

5401 INPUT CHK2 Check Input Sensors (2)
Use this SP to display the on/off status of each sensor. The status of each sensor
(O, X) is displayed on the 2nd line of the display.
No. Meaning
1 NIC Detection Sensor
2 USB Connection Sensor
Input Check: Temperature and Humidity
5402
INPUT CHK
HTEMP
Display Print Head Temperature
Displays the temperature reading of the print head temperature sensor.
Units: 0.1
o
C
5403
INPUT CHK
HUTMP
Display Temperature/Humidity Sensor Reading:
Temperature
Use this SP to display the temperature reading of temperature/humidity sensor.
Units: 0.1
o
C
5404 INPUT CHK HUM1 Display Temperature/Humidity Sensor Reading: Humidity
Use this SP to display the humidity reading of temperature/humidity sensor.
Units: 0.1%
