Ricoh J011 - Top Cover

BASIC REMOVAL PROCEDURES
SM 3-5 J001/J003
Replacement
Adjustment
3.2.4 TOP COVER

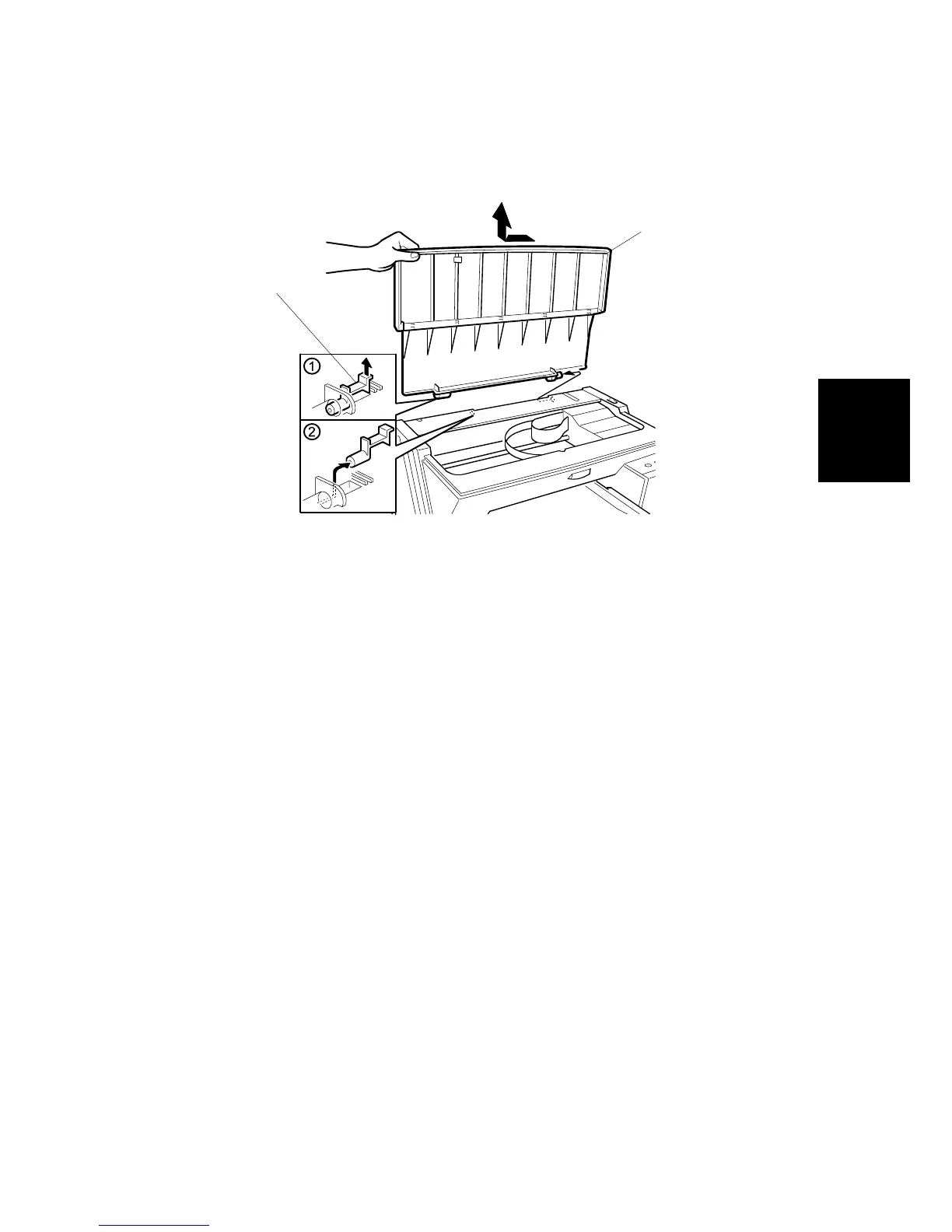

1. Raise the top cover [A] and hold it open.
2. Gently raise the top of the lock pin [B] and slide it to the right.
3. Detach the top cover from the printer.
G707R905.WMF
[A]
[B]
