Ricoh J011 - Pcbs; Psu Board

PCBS
SM 3-15 J001/J003
Replacement
Adjustment
3.6 PCBS
3.6.1 PSU BOARD
Remove these:
• Duplex unit (3.2.1)
• Top cover (3.2.4)
• Front cover, left cover, right cover (3.2.7)

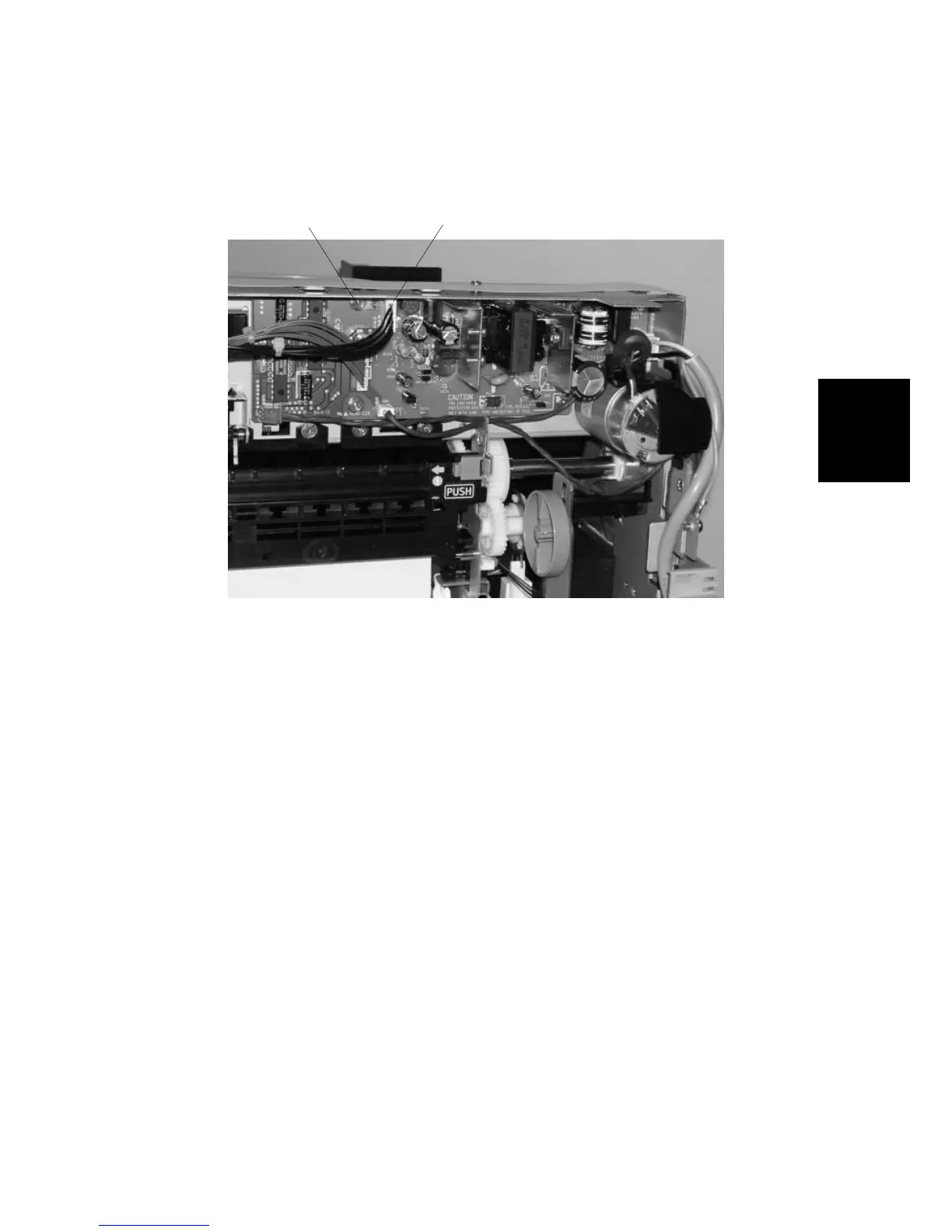

[A]: Connectors ( x 5 at { to )
[B]: PSU PCB ( x 4)
[A]
[B]
{
|
}
~


