Ink Supply System

SM 6-23 J007/J010/J011

J007/J010/

J011

Cleaning Table

Idle Time Required Cleaning Time

J007/J010 J011

> 10 hours, < 3 days 20 s 24 s

> 3 Days, < 7 Days 20 to 80 s 24 to 160 s

> 7 Days, < 1 Month 80 s 160 s

> 1 Month, < 3

Months

180 s 360 s

> 3 Months 180 s 360 s

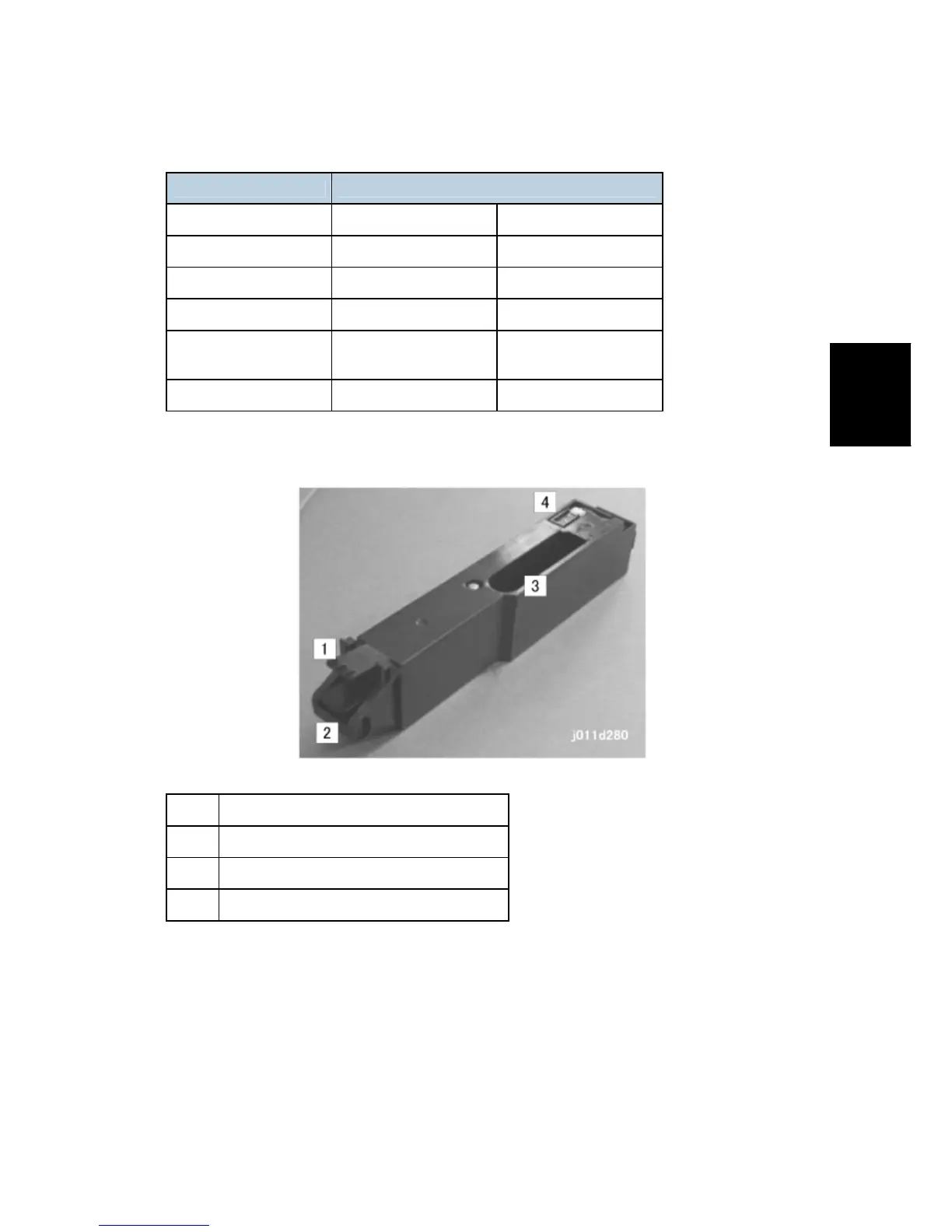

6.4.8 INK COLLECTION TANK

1 Ink Collection Tank Release

2 Tank Handle

3 Tank Entrance Slot

4 Ink Collection Tank Sensor

The ink collection unit holds the used ink sent to it from the maintenance unit above.
