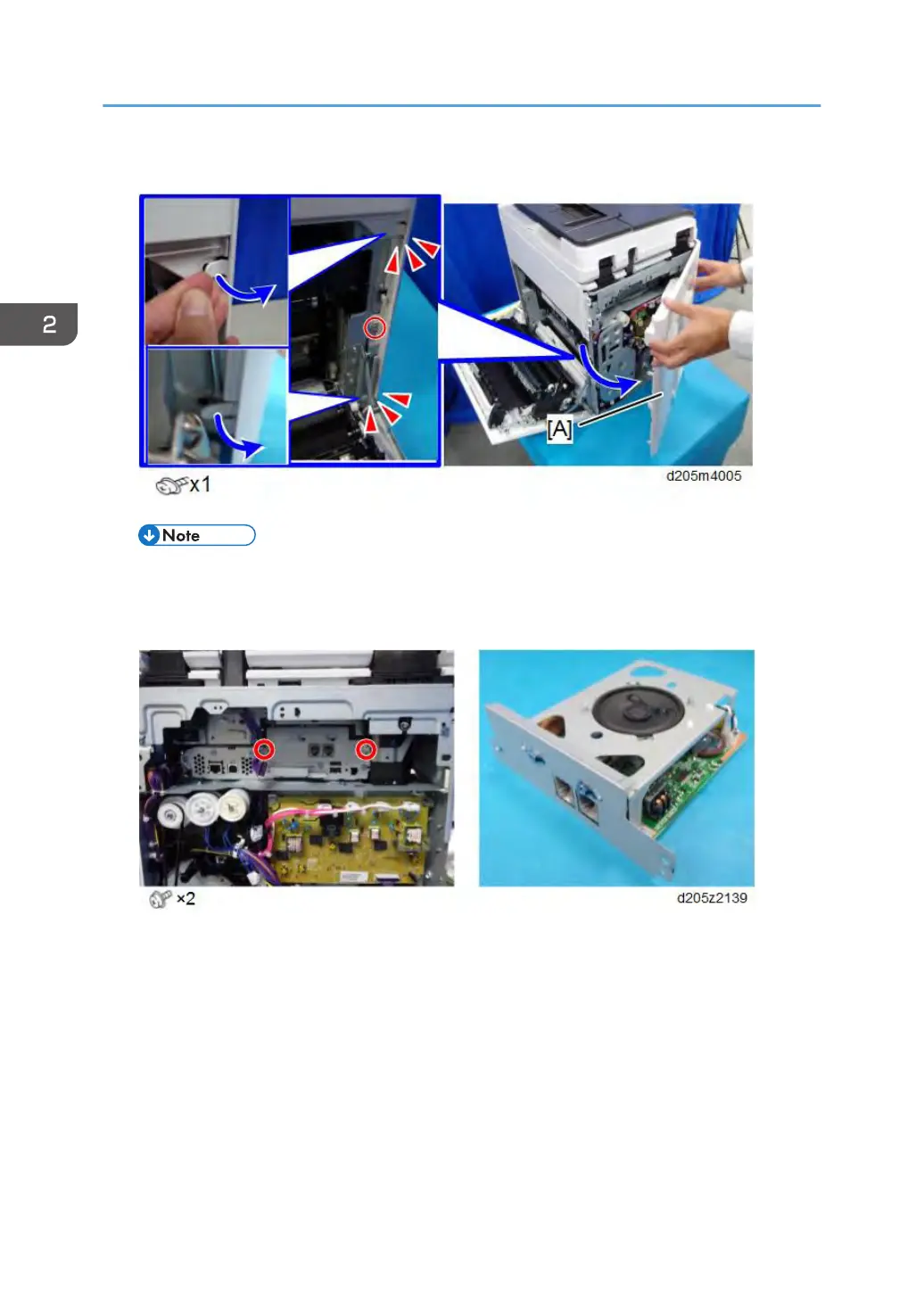

4. Remove the rear cover [A].
• Be careful not to damage the tabs at the rear of the left cover when removing or installing the
rear cover.
5. Remove the FCU with bracket.
2. Replacement and Adjustment
22
