Guide to Functions of the Machine's Options
Check which type of machine you have. See Read This First.
DQA004
1
2
9
3
45
78
10
12
14
13
11
6

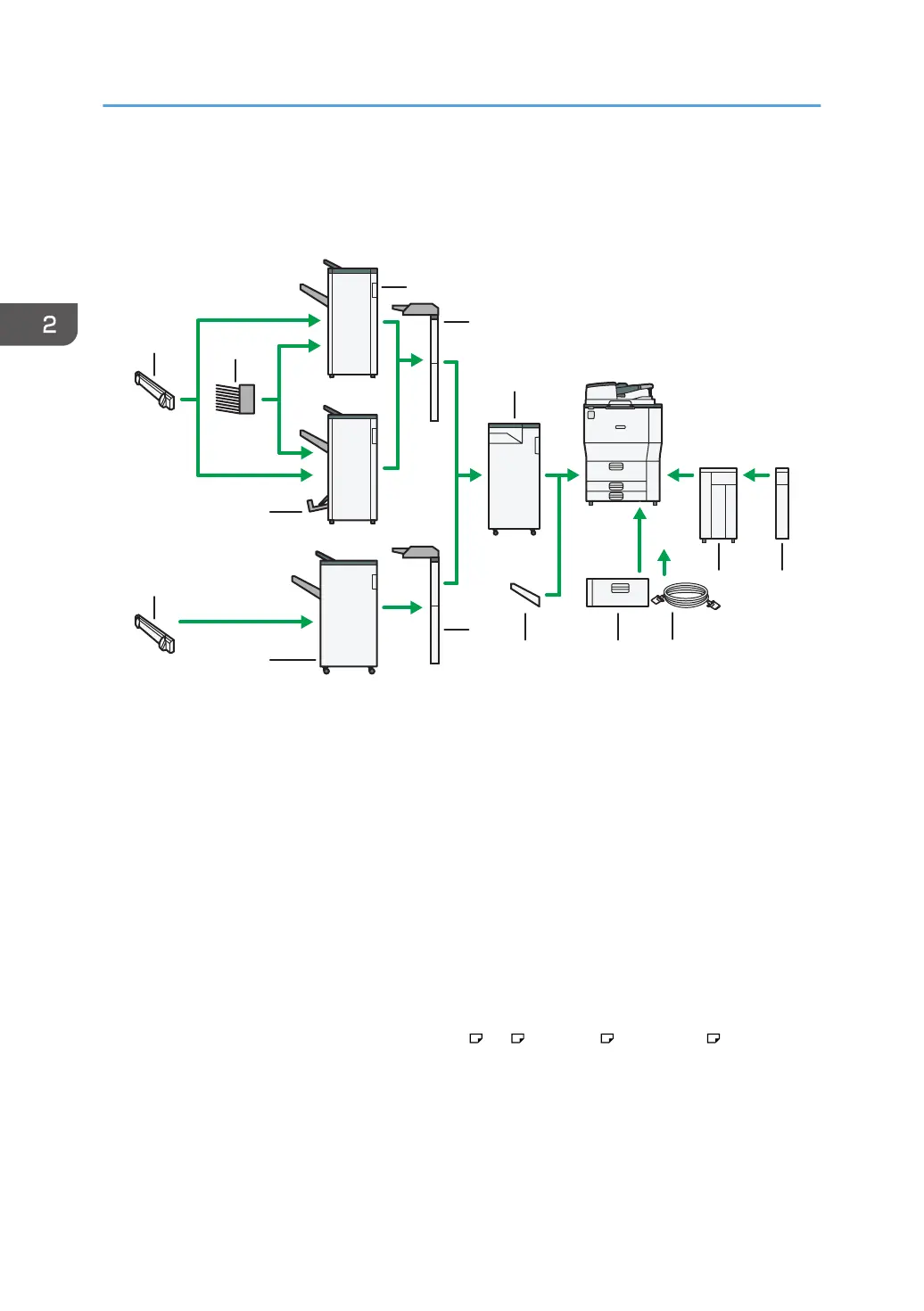

1. Finisher SR4120
Sorts, stacks, and staples multiple sheets of paper. Consists of the following paper trays:
Finisher upper tray
Finisher shift tray
2. Interposer (Finisher SR4120, Booklet Finisher SR4130)
Inserts cover or slip sheets into copied or printed paper.
3. Multi-Folding unit
The Multi-Folding unit can apply the following folds: Half Fold, Letter Fold-out, Letter Fold-in, Double Parallel
Fold, Gate Fold, and Z-fold.
To use the Multi-Folding Unit, the Finisher SR4120, the Booklet Finisher SR4130 or the Finisher SR4080 is
required.
4. Extension unit
Attached to the LCT and holds 2,500 sheets of B4 JIS , A4 , 8
1
/
2
× 14 , or 8
1
/
2
× 11 paper.
5. Large capacity tray (LCT)
Paper is loaded here.
6. Copy connector
Allows you to use the connect copy function.
2. Getting Started
