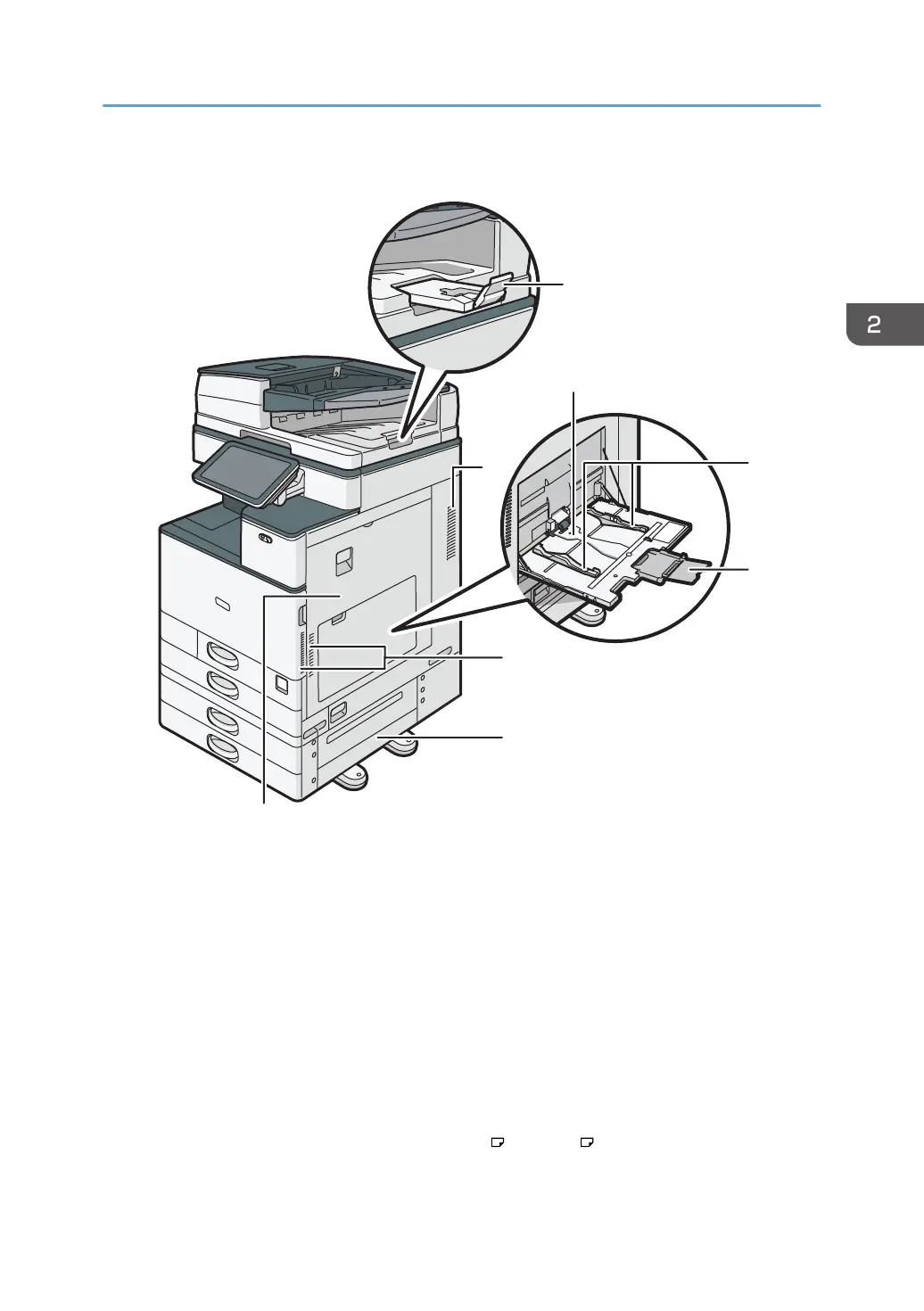

Front and right view
1. ADF's extender
Pull this extender to support large paper.
2. Vents
Prevent overheating.
3. Bypass tray
Use to copy or print on OHP transparencies, adhesive labels, and paper that cannot be loaded in the paper
trays. For details, see page 154 "Loading Paper into the Bypass Tray".
4. Paper guides
When loading paper in the bypass tray, align the paper guides flush against the paper.
5. Extender
Pull this extender out when loading sheets larger than A4 , 8
1
/
2
× 11 in the bypass tray.
Guide to Names and Functions of Components
29
