Ricoh RT3040 User Manual

1.Detailed Descriptions
4

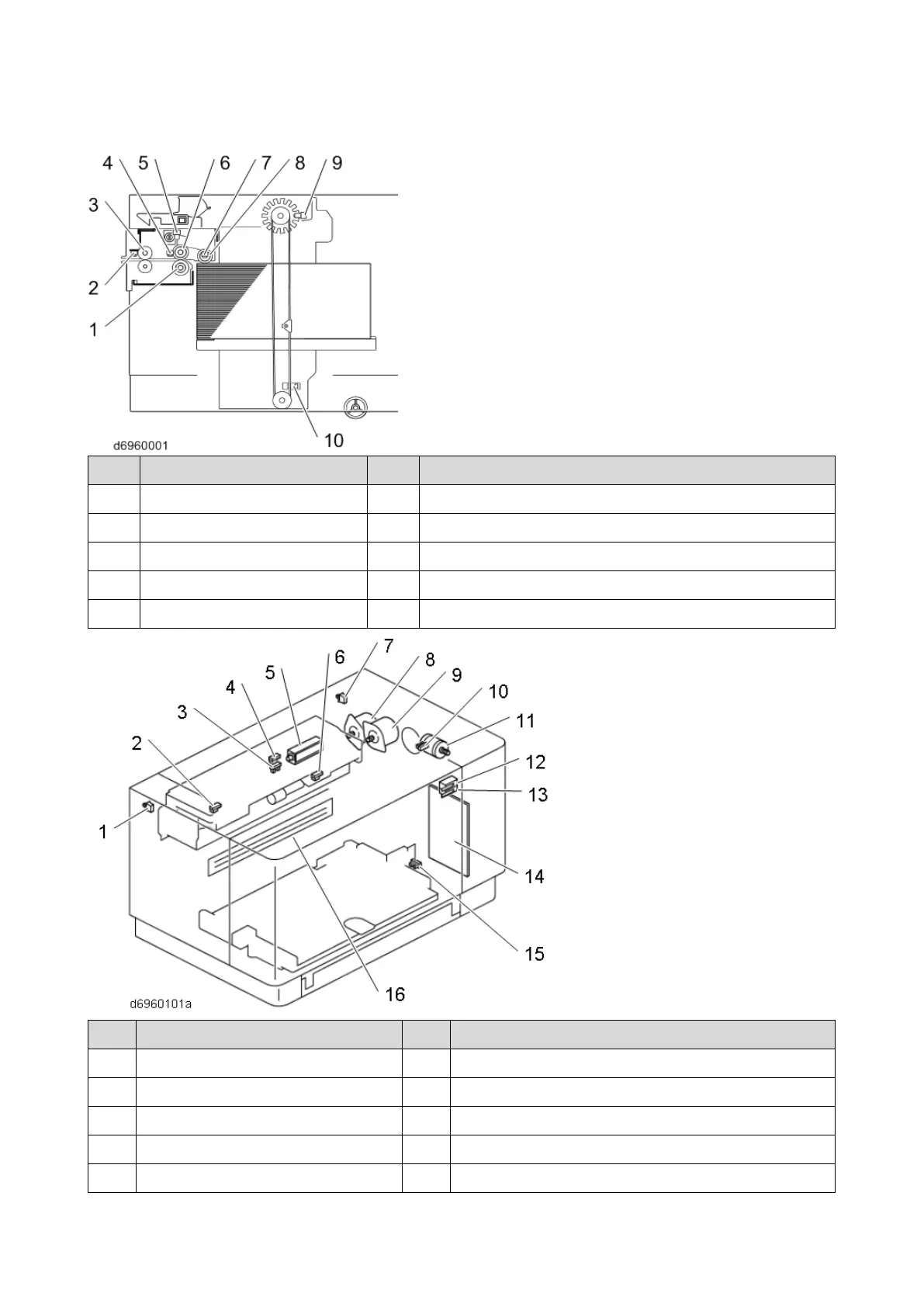

Parts Layout
No.
Description
No.
Description
1
Friction roller
6
Feed roller
2
Transport sensor (S2)
7
Paper end sensor (S3)
3
Transport roller
8
Pickup roller
4
Paper feed sensor (S1)
9
Remaining paper sensor (S6) (inside lift unit)
5
Upper limit sensor (S4)
10
Lower limit sensor (S5)
No.
Description
No.
Description
1
Tray set switch (front) (SW1)
9
Paper feed motor (M2)
2
Paper feed sensor (S1)
10
Remaining paper sensor (S6) (inside lift unit)
3
Upper limit sensor (S4)
11
Tray lift motor (M3) (inside tray lift unit)
4
Transport sensor (S2)
12
Interlock switch 1 (SW3)
5
Pick-up roller solenoid (SOL1)
13
Interlock switch 2 (SW4)
