2.Replacement and Adjustment
19
Tray Lift Unit
1. Remove the rear cover. (Rear Cover)

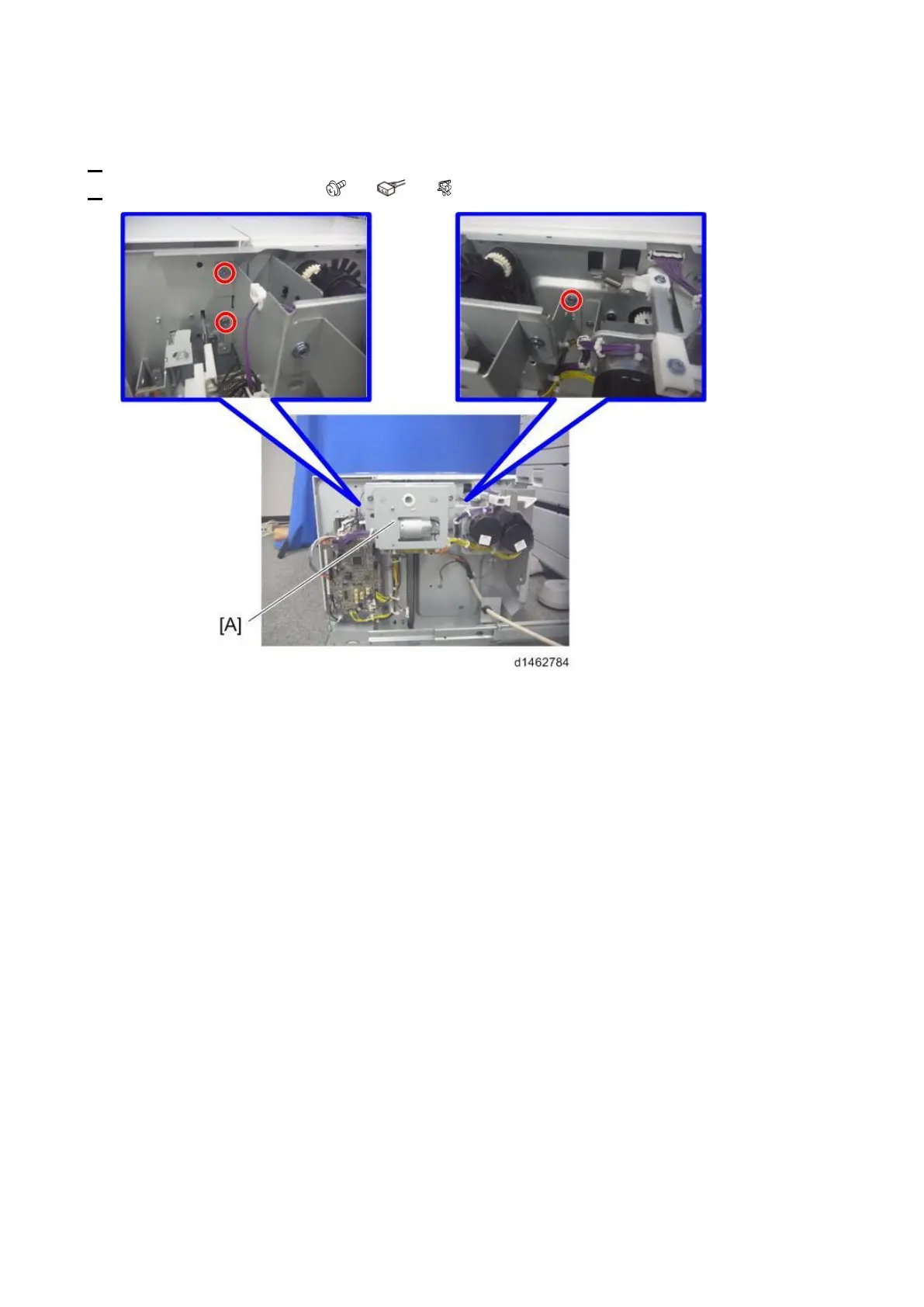

2. Remove the tray lift unit [A] ( ×3, ×1, ×10).
