2.Replacement and Adjustment
17

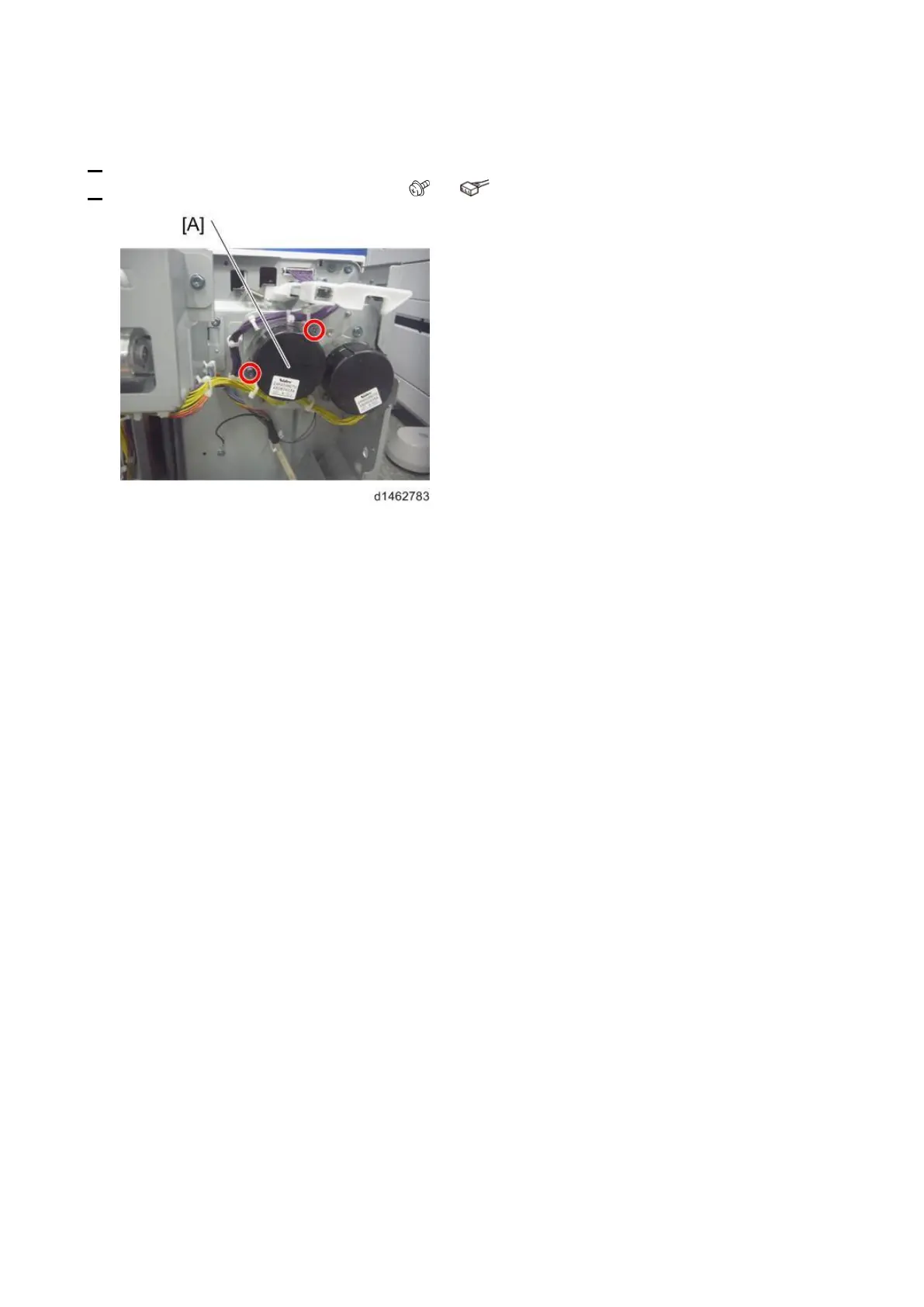

Paper Feed Motor (M2)
1. Remove the rear cover. (Rear Cover)
2. Remove the paper feed motor (M2) [A] ( ×2, ×1).
