2.Replacement and Adjustment
18
Transport Motor (M1)
1. Remove the rear cover. (Rear Cover)

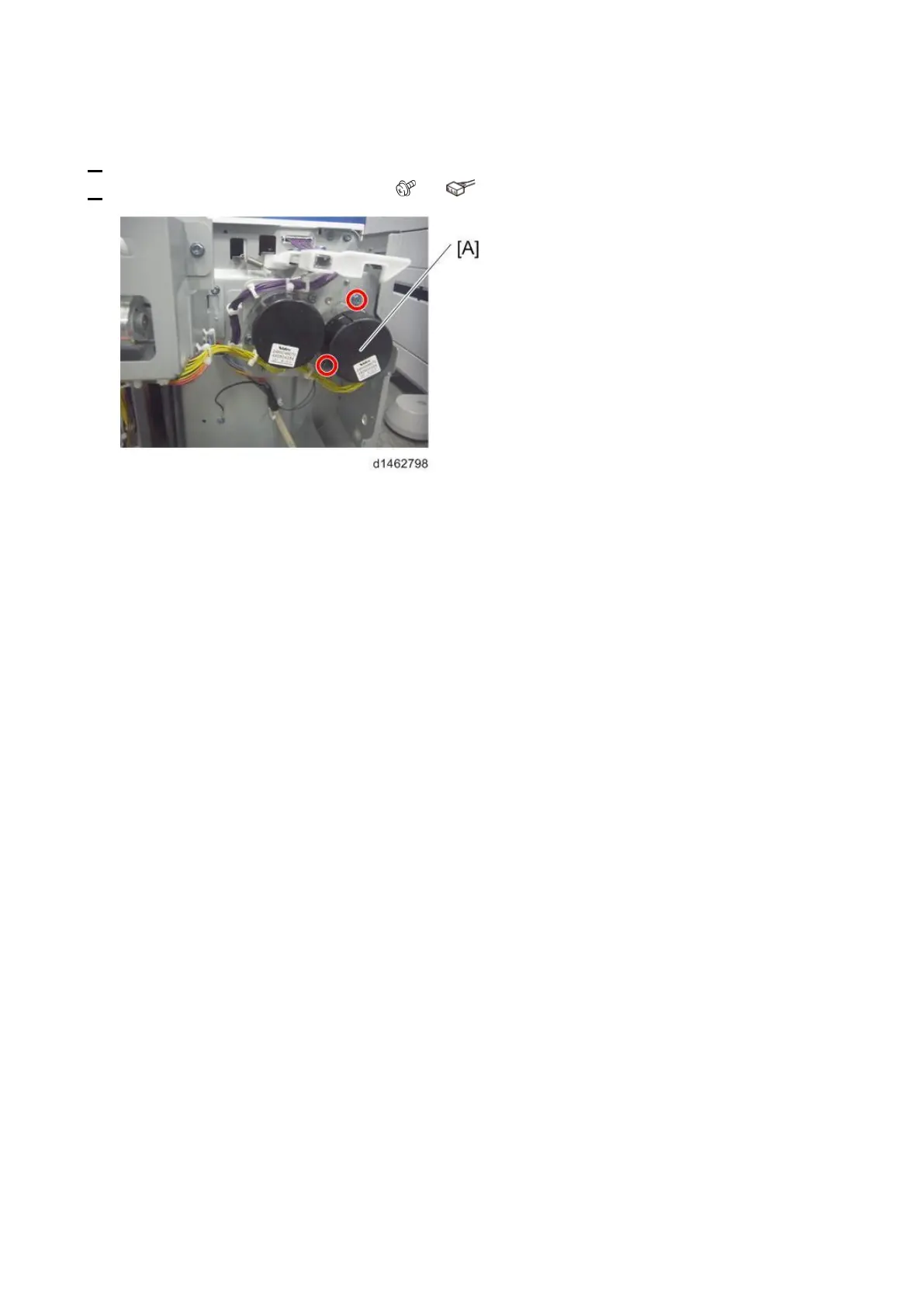

2. Remove the transport motor (M1) [A] ( ×2, ×1).
